Description

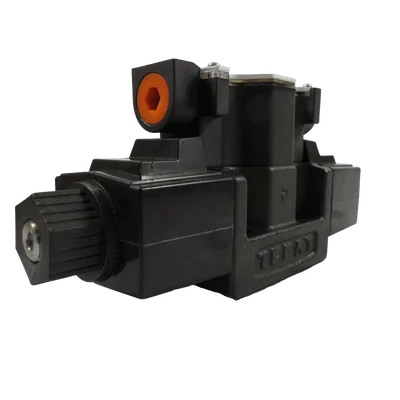

Yuken JIS Directional Valve Solenoid Operated (DSG-03-2D2-A200-50) is built for high-pressure hydraulic applications that require precise control and durability. It offers a maximum operating pressure of 31.5 MPa (4,570 PSI) and a flow rate of up to 120 L/min.
The Yuken solenoid directional valve meets CETOP D05 standards, ensuring compatibility with a wide range of hydraulic systems. It is an excellent option for maintaining stable hydraulic flow and pressure, with robust engineering and a design that reduces the risk of leakage and system failures.
- Specifications and Dimensions
- US Customs Harmonized Code: 8481.20.0020
- Country of Origin: Japan
- Weight: 8.4 lbs
- Maximum Operating Pressure: 31.5 MPa (4,570 PSI)
- Maximum Flow Rate: 120 L/min (31.7 U.S. GPM)
- Model Type: CETOP D05 Solenoid Directional Valve – Standard
- Key Features and Benefits
- Handles high pressure up to 31.5 MPa for tough hydraulic applications
- Supports a maximum flow rate of 120 L/min for efficient fluid control
- Manual override pin offers additional control for precise operations
- Manufactured in Japan for superior quality and engineering precision
- Built for demanding industrial hydraulic environments
