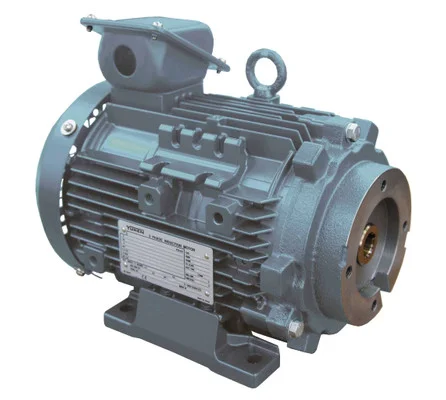

Yuken 5 Hp Close-Couple Electric Motor (Terminal box on top) (M1-3.7-41)

Description

Yuken 5 Hp Close-Couple Electric Motor (Terminal box on top) (M1-3.7-41) is designed to mount directly to PV2R series vane pumps and AR/A/A3H variable volume piston pumps, making it a versatile option for various hydraulic applications. The M-series motors have outputs ranging from 0.75 to 18.5 kW and come in two formats: a bell housing type (M-M7) and a direct coupling type (M1, M2) with a hollow shaft.

With a terminal box located on top, this Yuken 5 Hp close-couple electric motor offers a secure and streamlined wiring configuration, making it ideal for tight spaces or setups requiring top-mounted electrical connections. The motor is constructed for safe operation, with the shaft fully enclosed to prevent exposure.

• Specifications and Dimensions
  • Weight: 95 lbs
  • Output Power: 5 Hp
  • Mount Type: Close-Couple with Flange
  • Shaft Type: Hollow Shaft
  • Output Range: 0.75 to 18.5 kW
  • Suitable for: PV2R series vane pumps and AR/A/A3H variable volume piston pumps

• Key Features and Benefits
  • Easy mounting for PV2R series vane pumps and AR/A/A3H piston pumps
  • Compact size for space reduction
  • Low noise and vibration levels for quiet operation
  • Safe operation with enclosed shaft
  • Top-mounted terminal box for streamlined wiring
