Description

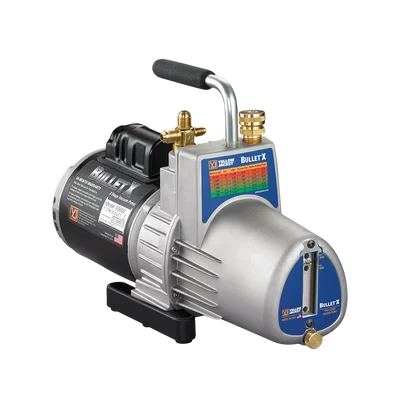

Yellow Jacket Bullet 7 CFM Single Phase Vacuum Pump, 115V, 60Hz (93600) is engineered for high-performance and reliability, meeting the needs of HVAC professionals. This two-stage rotary vane oil-sealed vacuum pump is designed to efficiently pull down to 25 microns.
The robust construction of the 93600 model includes a wide-mouth oil reservoir port for easy oil filling and a large oil sight glass for quick monitoring. Its versatile design allows for the oil reservoir to double as an exhaust port, which can be connected to a remote location with a garden hose.
- Specifications and Dimensions
- Brand: Yellow Jacket
- Model Number: 93600
- Type: Two-stage rotary vane vacuum pump
- Free Air Displacement: 7 CFM
- Motor: 1/2 hp, 1725 rpm
- Voltage: 115V, 60 Hz
- Oil Capacity: 28 oz
- Dimensions: 16.25″ L x 6″ W x 11.5″ H
- Net Weight: 30.8 lbs
- Warranty: 24-month limited over-the-counter
- Key Features and Benefits
- Efficient Performance: Pulls down to 25 microns, ideal for deep vacuum needs
- Easy Maintenance: Wide-mouth oil reservoir and large oil drain for convenient servicing
- Durable and Reliable: Constructed with heavy-duty materials for long-term use
- User-Friendly Design: Features a large oil sight glass and tethered port caps
- Safety Features: Equipped with an internal check valve and intake filter screen
- Stable and Portable: Stable base and balanced handle for easy transportation
