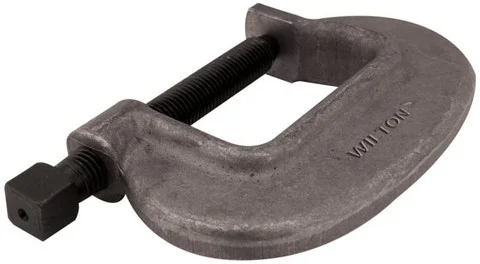

Wilton 5FC Model O-Series C-Clamp w/ 5.5 Jaw Opening (14563)

Description

The Wilton 5FC Model O-Series C-Clamp w/ 5.5 Jaw Opening (14563) is a heavy-duty clamping tool designed for professional use in construction, fabrication, bridge building, and shipbuilding. This clamp features a maximum clamping force of up to 40,000 pounds, making it suitable for even the most demanding applications.

KEY FEATURES AND BENEFITS:

• Clamping Force: Up to 40,000 lbs
• Jaw Opening: 5-3/8″
• Throat Depth: 3-1/8″
• Drop Forged Steel Frame: Provides superior strength
• Black Oxide Coated Screw: Resists corrosion for smooth operation
• Full-Length Screw: Machined from a single piece of square, cold-drawn steel for durability
• Square Head Design: Allows easy wrench tightening (hand and torque wrench)

SPECIFICATIONS:

• Model Number: 14563
• Jaw Opening: 5-3/8″
• Throat Depth: 3-1/8″
• Clamping Force: Up to 40,000 lbs
• Material: Drop Forged Steel

HOW TO USE:

1. Position the C-Clamp on the workpiece to be clamped.

2. Adjust the jaw opening to fit the workpiece size.

3. Use a wrench to tighten the square head of the clamp until the desired clamping force is achieved.

4. Ensure the clamp is securely fastened for stable holding.

BENEFITS OF USING THE Wilton 5FC Model O-Series C-Clamp w/ 5.5 Jaw Opening (14563):

• Heavy-Duty Construction: Drop forged steel frame and full-length screw for superior strength and durability.
• Corrosion Resistance: Black oxide coated screw resists corrosion for long-lasting performance.
• Powerful Clamping Force: Up to 40,000 lbs for demanding applications.
• Versatile Applications: Suitable for heavy construction, fabrication, bridge building, and shipbuilding.
• Easy Tightening: Square head design allows for easy wrench tightening, including use with torque wrenches.

FEATURES:

• Maximum Clamping Force: Up to 40,000 lbs
• Jaw Opening: 5-3/8″
• Throat Depth: 3-1/8″
