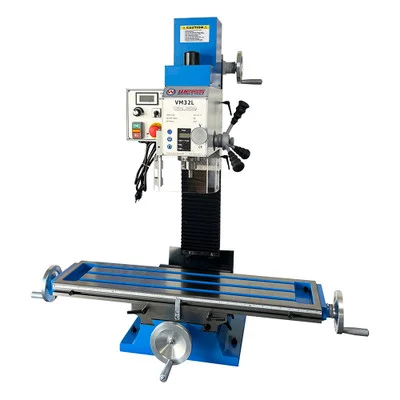

Weiss 8″ x 33″ Benchtop Milling Machine with R8 Spindle – 100-2250 RPM – 2HP (VM32L)

Description

The Weiss 8″ x 33″ Benchtop Milling Machine with R8 Spindle – 100-2250 RPM – 2HP (VM32L) is a high-precision benchtop mill designed for professional machinists, locksmiths, and maintenance workshops. Its 100-2250 RPM variable speed system allows for easy operation, while the 2HP brushless motor provides silent, smooth, and efficient performance with low maintenance. High-precision taper roller bearings support the spindle. Spindle movement is tracked on a depth ruler in both inches and metric units. A clear chip guard with a switch-off function ensures safety during operation. With a direct toothed belt drive, adjustable dovetail rails, and precise micrometric downfeed, the Weiss VM32L delivers superior accuracy, quiet operation, and durability for milling, drilling, and precision metalworking across various materials, including steel and stainless steel.

Features and Specifications:

• Motor: 2HP (1500W) Brushless, silent operation.
• Spindle: R8 with high-precision taper roller bearing.
• Table Size: 8″ x 33″, ground with 3 T-slots.
• Speed Range: 100 to 2250 RPM, electronically variable.
• Feed: Micrometric downfeed adjustable to 0.002″.
• Transmission: Direct toothed belt drive for quiet and precise operation.
• Digital Display: Spindle speed and depth gauge with zero reset.
• Rails and Leadscrews: Adjustable dovetail rails, proper inch pitch screws.
• Safety: Chip guard with switch-off function.
• Mill Head: Tiltable up to 90°
