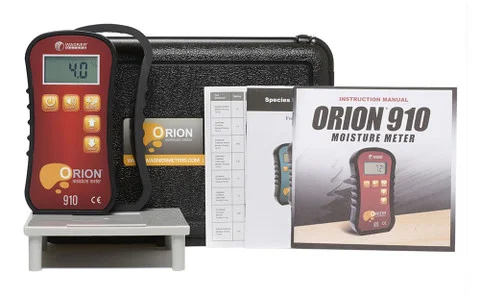

Wagner Meters Orion 910 Kit w/ On-Demand Calibrator (890-00910-001)

Description

The Wagner Meters Orion 910 Kit w/ On-Demand Calibrator (890-00910-001) provides professionals with a highly accurate and non-destructive method for measuring moisture content in wood and various other materials. Building upon the legacy of Wagner Meters’ reliable technology, the Orion 910 offers enhanced capabilities, including deeper measurement penetration and the convenience of on-demand calibration. This kit is designed to deliver precise readings without damaging the material being tested, saving time and ensuring the integrity of your projects. The inclusion of a paired On-Demand Calibrator allows for immediate field calibration, guaranteeing accuracy when and where you need it most. Backed by Wagner Meters’ industry-leading 7-year warranty, the Orion 910 is a testament to quality, dependability, and innovative moisture measurement technology.

KEY FEATURES AND BENEFITS:

• Deep Depth Measurement: Accurately measures moisture content within wood from a depth of 0.75 inches (19mm), providing a comprehensive understanding of the material’s internal moisture levels.
• IntelliSense™ Technology: Incorporates advanced IntelliSense technology in its deep reading modes to deliver accurate moisture content readings from deeper within the wood, while minimizing the influence of surface moisture.
• Fast Selection Species Settings: Features user-friendly up/down arrow buttons for quick selection of wood species, accommodating virtually any softwood or hardwood species globally.
• Non-Damaging Pinless Sensor: Utilizes electromagnetic wave technology to measure moisture content without penetrating the wood surface, eliminating the risk of damage.
• Virtually Unaffected by Temperature: Engineered to be largely unaffected by the temperature of the wood or the surrounding environment, removing the need for manual temperature corrections.
• True In-The-Field Calibration: Comes equipped with an individually paired On-Demand Calibrator, enabling users to calibrate the meter quickly in their work environment.
• Relative Moisture Measurement Mode: Offers a mode for taking relative moisture measurements in non-wood-based materials and engineered wood flooring.
• Press to Hold Readings: Features a convenient press-to-hold function that allows users to freeze the current moisture reading on the display.
• Programmable Alarm: Includes a user-programmable audible alarm that alerts the user when a predefined high moisture content level is reached.
• 7-Year Warranty: Supported by Wagner Meters’ exceptional 7-year warranty, reflecting the product’s superior quality and long-term reliability.

SPECIFICATIONS:

• Dimensions with Boot:
  • Length: 5.75 inches (146mm)
  • Width: 3.0 inches (76mm)
  • Thickness: 1.0 inches (25mm)
• Weight with Boot: 7.2 oz. (204g)
• Scanning Area: 2.0 inches (50mm) x 2.5 inches (63mm)
• Power: 9-volt battery (Wagner recommends using non-rechargeable Alkaline or Lithium or rechargeable NiMH batteries)
• Auto Power Shut-Down: 60 seconds
• Measurement Ranges:
  • MC for wood: 4.0% to 32.0%
  • Relative Measurement Scale: 0-100
  • Deep Depth Measurement: Up to 0.75” (19mm)
  • Specific Gravity Range for Wood Species: 0.20-1.0 SG
• Storage Temperature and Humidity: +50˚F to +90˚F (+10˚C to +32˚C), Max 95% RH, Non-condensing
• Operating Temperature Range: +32˚F to +110˚F (+0˚C to +43˚C)
• Compatibility: Suitable for measuring various softwood and hardwood species, plywood, OSB, MDF, and some bamboo flooring products.

HOW TO USE:

• Power On: Insert a 9-volt battery and press the ON/HOLD button to turn it on.
• Select Species Setting: Use the up/down arrow buttons to select the appropriate wood species setting for the material you are testing.
• Calibration Check: Utilize the included On-Demand Calibrator to verify the meter’s calibration.
• Take Measurement: Place the scanning area on the surface of the wood or material you want to measure.
• Read Measurement: The moisture content reading will be displayed on the backlit screen.
• Hold Reading: Press the ON/HOLD button to freeze the reading if needed.
• Auto Power Off: The meter will automatically shut off after 60 seconds of inactivity.

BENEFITS OF USING THE WAGNER METERS ORION 910 KIT W/ ON-DEMAND CALIBRATOR (890-00910-001):

• Non-Damaging Sensor Technology: Prevents unsightly marks and damage to materials being tested.
• Deep Depth Measurement: Provides thorough understanding of moisture distribution within the material.
• Immediate Calibration: On-Demand Calibrator allows for quick verification of accuracy in the field.
• Versatile Measurement Capabilities: Measures a wide range of wood species and non-wood materials.
• Robust Design: Backed by a 7-year warranty for peace of mind.
• Time and Resource Efficiency: Saves time, reduces material waste, and contributes to higher quality workmanship.

FEATURES:

• Backlit Display: Enhances visibility in dimly lit environments for easy reading.
• Audible Alarm: Alerts users when a pre-set high moisture level is detected.
• Rubber Protective Boot: Increases durability on the job site by providing added protection.
• Foam-lined Carrying Case: Offers secure storage and transportation for the meter and accessories.
• Common Flooring Materials Settings Reference Card: Streamlines the setup process with quick reference.
• Low Battery Indicator: Alerts when the battery needs replacement to prevent interruptions.
• Automatic Shut-Off: Conserves battery life by turning off the meter after inactivity.
