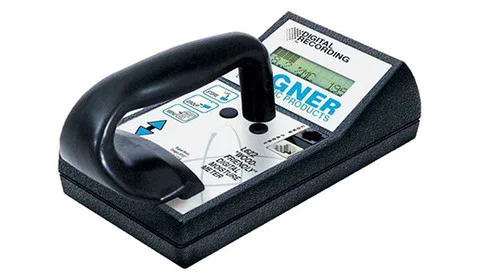

Wagner Meters L622 Meter Kit (GB, FR, IT, DEU) (890-62201-003)

Description

Wagner Meters L622 Meter Kit (GB, FR, IT, DEU) (890-62201-003) is a comprehensive moisture measurement solution designed for professionals in the lumber industry. This kit combines the advanced L622 Digital Recording Moisture Meter with the specialized L722 Lumber Stack Probe, providing a versatile toolset for assessing moisture content in various lumber forms and environments. The L622 is built to withstand demanding industrial conditions, offering rapid scanning and the ability to measure moisture deep within the wood. Paired with the L722 probe, it enables accurate readings within stacks of lumber, addressing potential hidden moisture pockets. With its large data storage capacity, PC-based reporting software, and user-friendly interface, the L622 COMPLETE KIT is an invaluable asset for maintaining stringent moisture quality control and optimizing lumber production processes.

KEY FEATURES AND BENEFITS:

• Comprehensive Moisture Assessment: Includes both the L622 meter for surface and core readings and the L722 probe for internal stack measurements, providing a complete moisture analysis solution.
• Efficient Scanning: The L622 meter features a larger scanning plate and ergonomic handle, allowing for faster measurement of wood surfaces.
• Deep Reading Capability: The L622 provides accurate moisture readings in lumber and wood products ranging from 1″ to 4″ in thickness.
• Internal Stack Measurement: The L722 Lumber Stack Probe allows for taking moisture measurements inside stickered packs of lumber, identifying areas with potentially higher moisture content.
• Large Data Storage: The L622 can store over 5000 individual moisture readings, facilitating extensive data collection and analysis.
• Organized Data Management: Readings can be stored in up to 200 distinct groups, enabling easy comparison of average moisture content, standard deviation, and minimum/maximum moisture levels.
• PC-Based Reporting Software: The included Stat Pak software allows for downloading, analyzing, and reporting moisture data on a computer, streamlining quality control processes.
• Accurate Core Readings: Wagner’s technology ensures measurements reflect the true moisture content within the wood, unaffected by surface moisture.
• Customizable Species Settings: The L622 comes pre-loaded with 32 user-selectable species settings, which can be further customized to specific wood types.
• Durable Construction: Built for the rigors of industrial environments, ensuring reliable performance over time.

SPECIFICATIONS:

• Meter Model: L622 Digital Recording Moisture Meter
• Probe Model: L722 Lumber Stack Probe (available in various lengths)
• Moisture Reading Depth (L622): 1″ to 4″
• Data Storage Capacity: Over 5000 readings
• Number of Storage Groups: Up to 200
• Display: Backlit LCD, 2-line, 32-character
• Interface: RS-232 Serial (for computer connection)
• Connectivity: USB-RJ11 cord included for data download
• Power Source: Battery powered
• Battery Life: Approximately 50 hours of continuous use (may vary with backlight usage)
• Operating Temperature: 30-120 degrees Fahrenheit
• Warranty: 1 year
• Included: L622 Meter, L722 Probe, Stat Pak PC Software, USB-RJ11 Cord, Calibration Verification Block (CVB)
• Languages: English, French, German, Italian
• Compatibility: Compatible with Windows operating systems for Stat Pak software.

HOW TO USE:

• Prepare the L622 Meter: Ensure the meter has sufficient battery power. Turn on the meter using the power button.
• Select Species Setting: Navigate the menu using the function buttons and scroll arrows to select the appropriate wood species setting. You can choose from the pre-loaded settings or a custom setting if previously programmed.
• Taking a Reading with the L622 Meter: Place the scanning plate of the L622 firmly on the surface of the lumber. Ensure good contact for an accurate reading. The moisture content will be displayed on the LCD screen.
• Storing a Reading (Optional): To store a reading, press the appropriate function button to save the current measurement. You can assign the reading to a specific group for organization.
• Using the L722 Lumber Stack Probe: Connect the L722 probe to the L622 meter.
• Inserting the Probe: Carefully insert the probe into the stack of lumber at the desired measurement point. Ensure the probe makes good contact with the wood.
• Taking a Reading with the Probe: The moisture content will be displayed on the L622 meter’s screen. Store the reading if needed, following the same steps as above.
• Downloading Data: Connect the L622 meter to a computer using the provided USB-RJ11 cord.
• Using Stat Pak Software: Open the Stat Pak software on your computer and follow the instructions to download the stored readings from the L622 meter.
• Analyzing Data: Use the Stat Pak software to analyze the collected data, generate reports, and compare moisture levels across different readings or groups.
• Calibration Verification: Regularly use the included Calibration Verification Block (CVB) to ensure the accuracy of the L622 meter. Follow the instructions in the meter’s manual for this process.

BENEFITS OF USING THE WAGNER METERS L622 METER KIT (GB, FR, IT, DEU) (890-62201-003):

• Improved Lumber Quality: Accurate moisture measurement helps prevent issues like warping, cracking, and mold growth, leading to higher quality lumber products.
• Reduced Waste: By identifying and managing moisture content effectively, businesses can minimize material loss due to moisture-related defects.
• Increased Efficiency: The L622’s fast scanning capability and data storage features streamline the moisture measurement process, saving time and resources.
• Enhanced Quality Control: The ability to store and analyze extensive data allows for rigorous monitoring and control of moisture levels throughout the production process.
• Versatile Application: The combination of the L622 meter and L722 probe provides flexibility for measuring moisture in various lumber forms, from individual boards to stacks.
• Reliable Performance: Wagner Meters’ technology ensures accurate and consistent readings, even in challenging industrial environments.
• Data-Driven Decision Making: The ability to generate reports and analyze data facilitates informed decisions regarding drying processes, storage, and handling of lumber.

FEATURES:

• Large Scanning Plate: Enables quicker coverage of lumber surfaces.
• Ergonomic Handle: Designed for comfortable and prolonged use in industrial settings.
• Deep Reading Technology: Measures moisture content up to 4 inches into the wood.
• Lumber Stack Probe Accessory: Allows for internal moisture checks within lumber piles.
• Extensive Reading Storage: Holds over 5000 moisture measurements.
• Organized Grouping: Allows readings to be categorized into up to 200 groups.
• Real-Time Clock and Calendar: Time-stamps stored readings for accurate record-keeping.
• Non-Volatile Memory: Retains stored data even when batteries are removed.
• Low Battery Indication: Alerts the user when battery replacement is needed.
• Automatic Shut-Off: Conserves battery life by powering down after a period of inactivity.
• Calibration Check: Includes a block for user verification of meter accuracy.
• Multiple Language Support: Operates in English, French, German, Italian, Finnish, Norwegian, and Swedish.
