Description

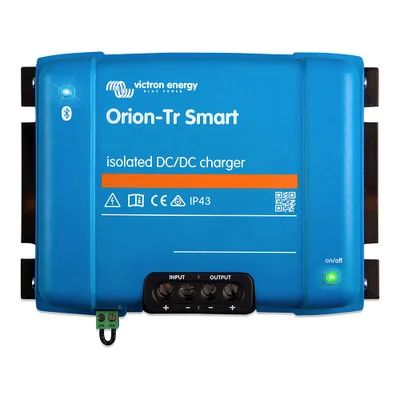

Victron ORI241236120 Orion-Tr Smart 24/12V 30A 360W DC-DC Charger is a high-performance isolated DC-DC charger with built-in Bluetooth, designed for dual-battery systems in vehicles and boats. It ensures optimal charging efficiency and stable voltage regulation for sensitive electronics.
Features:
- Built-in Bluetooth: Allows wireless monitoring and configuration via the VictronConnect app.
- Galvanic Isolation: Provides electrical separation between input and output for added protection.
- Adaptive 3-Stage Charging: Optimizes battery performance for lead-acid and lithium batteries.
- Remote On/Off Control: Enables easy switching without high-current wiring.
- Parallel Operation: Multiple units can be connected to increase output power.
- Voltage Adjustment: Output voltage can be fine-tuned for specific applications.
- High Temperature Tolerance: Delivers full-rated output up to 40°C and operates up to 55°C.
Benefits:
- Ensures efficient charging for service batteries in dual-battery systems.
- Protects sensitive electronics with stable voltage output.
- Supports both 12V and 24V systems for versatile applications.
- Provides real-time monitoring and configuration via Bluetooth.
Technical Specifications:
- Model: ORI241236120
- Color: Black
- Size: 24/12-30A
- Input Voltage Range: 20-35V
- Output Voltage Range: 10-15V
- Continuous Output Current: 30A (at nominal voltage and 40°C)
- Maximum Output Current: 45A (for 10s at nominal voltage minus 20%)
- Length: 21 cm
- Width: 13.5 cm
- Height: 9.8 cm
- Weight: 1998 g
