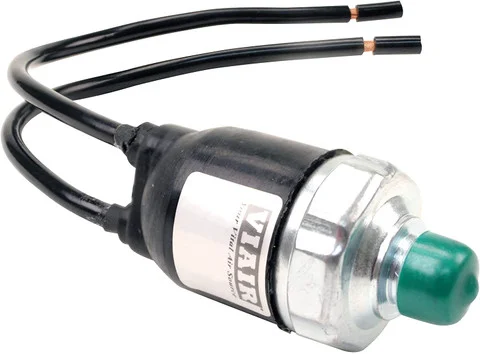

VIAIR Sealed Pressure Switch 1/8″ M NPT Port Normally Open 12 Ga Lead (90221)

Description

VIAIR Sealed Pressure Switch 1/8″ M NPT Port Normally Open 12 Ga Lead (90221) offers reliable pressure control for your air compressor system. This switch is designed with normally open contact type and a 1/8″ (M) NPT port fitting.

It features a durable brass construction, 12 Ga lead wires, and an IP54 international protection rating for dust and water resistance. This sealed pressure switch is suitable for both 12V and 24V systems.

• Specifications and Dimensions
  • Operation Mode: ON-ON
  • Current Rating: 30 Amps
  • Operating Voltage: 12 Volts
  • Contact Type: Normally Open
  • Connector Type: Crimp
  • Contact Material: Brass
  • International Protection Rating: IP54
  • 1/8″ (M) NPT Port Fitting
  • Lead Wire Gauge: 12 Ga
  • Upper Temperature Rating: 250°F
  • Dimensions: 6.66″ x 1.06″ x 2.17″
  • Item Weight: 1.6 ounces



• Key Features and Benefits
  • Designed with normally open contact type for consistent performance.
  • 1/8″ (M) NPT port fitting ensures secure installation.
  • IP54-rated for water and dust resistance.
  • 12 Ga lead wires provide a strong electrical connection.
  • Brass contact material offers high durability.
  • Suitable for both 12V and 24V air compressor systems.
