Description

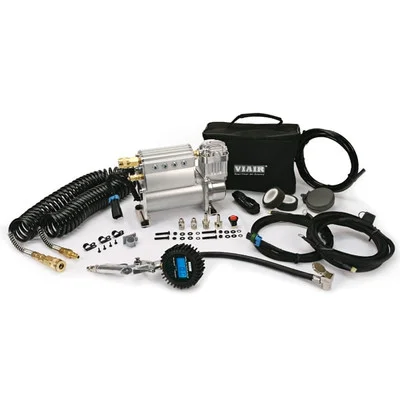

VIAIR Heavy Duty ADA System Universal Mount w/Inflation Kit (40049) is a 12V ADA system featuring a 400C compressor and an extruded aluminum 12-port air tank. This versatile system is ideal for tire inflation, air locker actuation, and other pneumatic needs in compact spaces. With a 33% duty cycle at 100 PSI, this system provides a maximum working pressure of 150 PSI.
The VIAIR Heavy Duty ADA System offers robust performance with a thermal overload protector and IP67-rated ingress protection. It includes onboard pressure switches, automatic couplers, and air line fittings for remote mount air filters.
- Specifications and Dimensions
- 12-Volt Permanent Magnetic Motor
- Duty Cycle: 33% @ 100 PSI
- Max. Working Pressure: 150 PSI
- Max. Amp Draw: 32 Amps
- Ingress Protection Rating: IP67
- Dimensions: 9″L x 4″W x 6.75″H
- Net Weight: 10 lbs.
- Key Features and Benefits
- Thermal overload protector for compressor safety
- Extruded aluminum air tank with 12 ports for versatile connections
- Onboard pressure switch for automatic operation
- Automatic coupler and digital tire inflation kit for easy inflation
- Wiring harness for quick plug & play installation
- Includes
- 400C Compressor w/Thermal Overload Protector
- Extruded Aluminum Air Tank (12-port)
- Toggle Switch
- Air Line for Remote Mount Air Filter Installation
- (2) Remote Mount Air Filter Relocation Fittings
- 1/8” NPT Drain Cock
- 1/4” NPT Safety Valve
- (8) 1/4” NPT Hex Plug
- 1/4” NPT Sealed Pressure Switch (85/105 PSI)
- (2) 1/4” NPT BSP Adapter
- 1/4” NPT Automatic Coupler
