Description

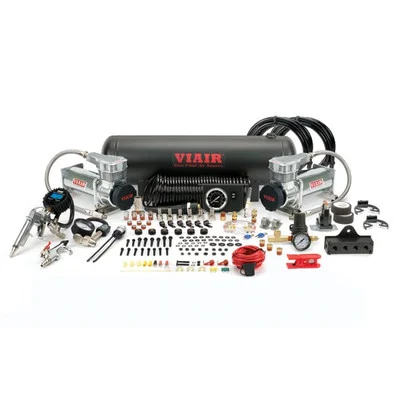

VIAIR 20075 Dual Platinum 425C Onboard Air System (20075) is a complete onboard air system that includes two 425C compressors, a 2.5-gallon matte black air tank, and a comprehensive set of components. Designed to deliver up to 175 PSI and 4.80 CFM, it’s perfect for inflating large tires, air lockers, air horns, and more.
With a dash panel gauge, digital tire inflation gun, and pressure regulator included, the VIAIR 20075 onboard air system ensures optimal control and monitoring for all your pneumatic needs.
- Specifications and Dimensions
- 12-Volt Permanent Magnetic Motor
- Duty Cycle: 50% @ 100 PSI, 33% @ 175 PSI
- Max. Working Pressure: 175 PSI
- Max. Air Tank Size: 5.0 Gallon
- Combined Max. Amp Draw: 60 Amps
- Ingress Protection Rating: IP67
- Dimensions: 9.25″L x 4.14″W x 6.59″H
- Net Weight: 11.10 lbs.
- Brand: VIAIR
- Voltage: 12 Volts
- Noise Level: 69 dB
- Air Flow Capacity: 4.8 Cubic Feet Per Minute
- Key Features and Benefits
- Dual 425C Platinum compressors provide a maximum pressure of 175 PSI
- Includes a 2.5-gallon matte black air tank with a 200 PSI rating
- Comes with a digital tire inflation gun (180 PSI) and pressure regulator
- Sealed pressure switch (140 PSI on, 175 PSI off) ensures optimal operation
- Comprehensive set of fittings, manifold, and accessories for easy installation
- IP67 rated for dust and water protection, ideal for off-road use
- Includes
- 2.5 Gallon Matte Black VIAIR Air Tank (200 PSI)
- (2) 425C Platinum or Stealth Black VIAIR Compressors
- Illuminated Dash Panel Gauge Kit, Black Face 200 PSI
- Digital Tire Inflation Gun (180 PSI)
- 0-220 PSI Pressure Regulator
- Sealed Pressure Switch (140 PSI on, 175 PSI off)
- 1/4” Drain Cock
- Heavy Duty 80 Amp Relay
- Mini ANL Fuse Holder with 60 Amp Fuse
- 1/4” Quick Connect Coupler (M)
- 1/4” 250 PSI Safety Valve
- (4) 1/4” NPT(M) to 1/4” Airline Straight Push to Connect Fittings
- 6-Port Billet Manifold with Mounting Bracket (1/4”)
- (2) 20ft. 1/4” Air Line Included
- 5 Pc. 1/4” NPT Plugs Kit
- Extension Braided Black Coil Hose
- Rubber Tip Blow Gun
- 3-in-1 Air Down Gauge
- Stainless Steel Air Line Cutter
