Description

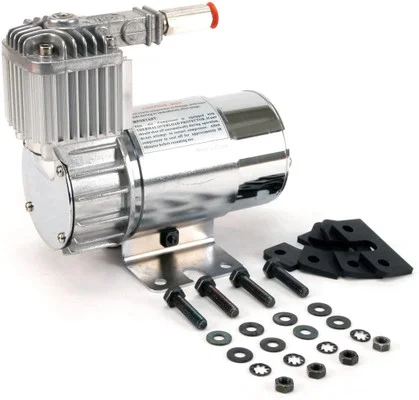

VIAIR 100C Chrome Compressor Kit with Omega Mounting Bracket (10016) is a 12-Volt air compressor designed for efficient air compression with a sleek chrome motor housing and end plates. This compressor features a permanent magnetic motor, delivering up to 130 PSI of maximum working pressure with a 15% duty cycle at 100 PSI.
The included omega-style mounting bracket provides secure installation, while the insulated pre-installed wiring ensures safe and reliable operation. This kit includes a thermal overload protector, vibration isolators, and a check valve for seamless performance.
- Specifications and Dimensions
- 12-Volt Permanent Magnetic Motor
- Duty Cycle: 15% @ 100 PSI
- Max. Working Pressure: 130 PSI
- Max. Air Tank Size: 1.0 Gallon
- Max. 12V Amp Draw: 18 Amps
- Ingress Protection Rating: IP54
- Dimensions: 6.0″L x 3.5″W x 5.3″H
- Net Weight: 3.45 lbs.
- Key Features and Benefits
- Prevents overheating during extended use
- Ensures secure and stable installation
- Eliminates head pressure for prolonged service life
- Reduce noise and ensure stable operation
- Includes
- Thermal Overload Protector
- Omega Bracket
- Check Valve
- Vibration Isolators
- Mounting Hardware
- Installation Instructions
