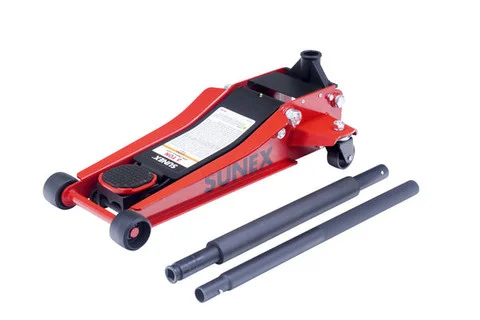

Sunex Tools 3-Ton Steel Low Profile Floor Jack (6603SJ)

Description

Sunex Tools 3-Ton Steel Low Profile Floor Jack (6603SJ) is a professional-grade lifting solution engineered for automotive shops and home garages that service low-clearance vehicles. Designed with a long-reach, low-profile chassis, this jack easily slides under vehicles with limited ground clearance while reaching centralized lift points beneath the frame. Its high-grade steel construction delivers the strength and stability required to safely lift loads up to 6,000 lbs.

Key Features and Benefits:

• RapidRise¨ Hydraulic Power Unit: Dual pump pistons raise the lift arm quickly, reducing pumping time and operator fatigue.
• Low-Profile, Long-Reach Frame: Slim 3.3-inch entry height and extended chassis allow access to low vehicles and recessed lift points.
• High-Grade Steel Construction: Heavy-duty steel frame supports 3-ton loads with excellent stability and minimal flex.
• Upgraded Hydraulic System: High-performance seals and specialized hydraulic fluid ensure consistent operation and long service life.
• Protective Two-Piece Handle: Designed for compact storage and fitted with a foam bumper to prevent vehicle damage.
• Enhanced Mobility: Ball-bearing rear swivel casters provide smooth steering and precise jack placement.

Specifications:

• Load Capacity: 3 Tons (6,000 lbs)
• Low Height: 3.3 inches
• High Height: 20.3 inches
• Material: Steel
• Color: Red
• Chassis Length: 26.4 inches
• Interchangeable Saddle: No
• Set Includes:
  • Sunex Tools 3-Ton Steel Low Profile Floor Jack 6603SJ (1)
  • Two-Piece Handle with Foam Bumper (1)
  • User Manual (1)

How to Use:

• Preparation: Park the vehicle on a level, hard surface. Engage the parking brake and chock the wheels.
• Clear Air: Before first use, open the release valve and pump the handle several times to purge air from the hydraulic system.
• Positioning: Close the valve by turning the handle clockwise. Roll the jack under the vehicle and align the saddle with the approved lift point.
• Lifting: Pump the handle. The RapidRise¨ system will quickly raise the saddle to the vehicle. Continue until the desired height is reached.
• Securing: Place jack stands under the vehicleÕs support points and lower the jack slightly until the load rests on the stands.
• Lowering: Lift the vehicle off the stands, remove them, and slowly turn the handle counter-clockwise to control descent.

Benefits of Using Sunex Tools 3-Ton Steel Low Profile Floor Jack (6603SJ):

• Wide Vehicle Compatibility: Handles low-clearance cars and standard vehicles with a single jack.
• Improved Access: Long-reach chassis eliminates difficulty reaching central lift points.
• Time-Saving Performance: RapidRise¨ system reduces setup time between lifts.
• Long-Term Durability: Powder-coated steel frame and upgraded seals minimize maintenance needs.

Features:

• Dual Pump Pistons: Increase lifting speed compared to single-pump designs.
• 3.3-Inch Minimum Entry Height: Ideal for low-profile and lowered vehicles.
• 20.3-Inch Maximum Lift Height: Provides ample working clearance.
• High-Performance Hydraulic Seals: Help prevent pressure loss and leaks.
• Wide-Track Front Wheels: Improve load distribution and stability.
• Rear Ball-Bearing Swivel Casters: Enable smooth 360-degree maneuverability.
• Two-Piece Handle Design: Simplifies storage and transport.
• Foam Handle Bumper: Protects vehicle paint and body panels.
• Powder-Coated Steel Exterior: Resists rust, corrosion, and shop chemicals.
• Long-Reach Chassis: Designed for accessing recessed and central lift points.
