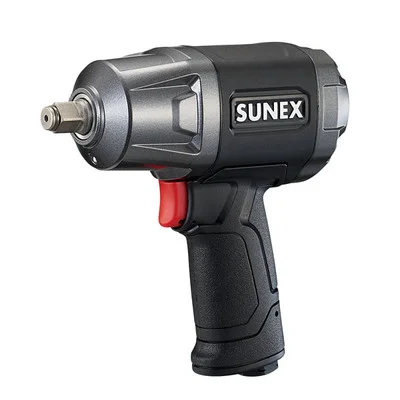

Sunex Tools 1/2″ Drive Magnesium Composite Impact Wrench (SX1202)

Description

Sunex Tools 1/2″ Drive Magnesium Composite Impact Wrench (SX1202) is engineered to provide high torque output within a lightweight, ergonomic frame. Designed for professional automotive and industrial environments, this tool delivers 1,650 ft-lbs of breakaway torque and 750 ft-lbs of working torque, making it suitable for removing stubborn fasteners and completing heavy-duty assembly tasks. By utilizing a magnesium alloy clutch housing, the tool achieves a power-to-weight ratio of 458 ft-lb/lb, ensuring that users can access significant power without the physical strain associated with heavier metal-bodied wrenches.

Key Features and Benefits:

• High-Efficiency Motor: Built around 7 spring-loaded rotor blades, ensuring faster startups and smoother power delivery for longer tool lifespan.
• Lightweight Magnesium Housing: Significantly lighter than steel or aluminum, offering superior heat dissipation properties and natural resistance to corrosion.
• 360-Degree Rotating Air Inlet: Enhances maneuverability, preventing the air hose from twisting or kinking when working in cramped spaces.

Specifications:

• Drive Size: 1/2″
• Breakaway Torque: 1,650 ft-lbs
• Working Torque: 750 ft-lbs
• Free Speed: 10,000 RPM
• Weight: 3.6 lbs
• Sound Level: 96.8 dBA
• Housing Material: Magnesium Alloy
• Handle Material: 40% Glass-Filled Nylon
• Rotor Type: 7 Spring-loaded blades
• Included in Box: Sunex SX1202 1/2″ Impact Wrench, Product Manual

How to Use:

• Air Supply Connection: Ensure your air compressor is set to 90 PSI. Connect a 1/4″ NPT air fitting to the 360-degree rotating air inlet using thread sealant.
• Lubrication: Before each use, add 2Ð3 drops of pneumatic tool oil directly into the air inlet to maintain the 7 spring-loaded rotor blades.
• Socket Attachment: Securely press a 1/2″ drive impact-rated socket onto the anvil. Ensure it clicks into place on the friction ring.
• Torque Selection: Use the one-hand switch regulator on the back of the tool to select your desired power level and direction (Forward or Reverse).
• Fastener Alignment: Place the socket firmly over the fastener. Keep the tool perpendicular to the work surface to prevent slipping.
• Operation: Squeeze the trigger to begin the impacting process. For loosening, apply steady pressure until the breakaway torque overcomes the fastener.
• Post-Use: Disconnect the air hose and wipe down the magnesium housing to remove any oils or shop debris before storage.

Benefits of Using Sunex Tools 1/2″ Drive Magnesium Composite Impact Wrench (SX1202):

• Ergonomic Advantage: Weighing only 3.6 lbs, it is the lightest tool in its performance class, reducing user fatigue and risk of repetitive strain.
• Effective Thermal Management: Magnesium housing effectively manages heat, keeping internal components at a stable temperature during prolonged use.
• Increased Productivity: The high 10,000 RPM free speed allows for faster rundown of fasteners, boosting overall shop productivity.

Features:

• Magnesium Clutch Housing: Provides a high strength-to-weight ratio while managing thermal loads during high-frequency use.
• 40% Glass-Filled Nylon Handle: Offers high impact resistance and protects the tool from chemical degradation caused by shop solvents.
• One-Hand Regulator Dial: Allows the operator to change torque settings and direction without needing to use a second hand.
• Swivel Air Inlet: A 360-degree rotating joint that minimizes hose interference and improves tool movement in tight spaces.
• Quiet Technology: Internal baffling reduces sound output to 96.8 dBA for a more manageable acoustic environment.
• 7-Blade Motor Configuration: Enhances internal air distribution for immediate torque and smoother rotation.
• Friction Ring Anvil: Enables quick socket changes while maintaining a secure hold during high-speed operation.
