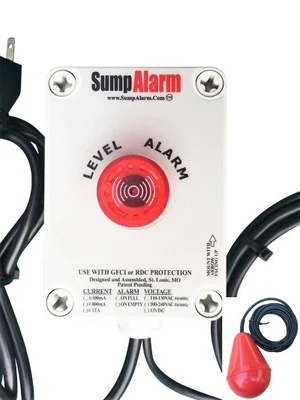

Sump Alarm 120V 33‘ SludgeBoss High Water Alarm (SA-120V-1L-33SB)

Description

The Sump Alarm 120V 33′ SludgeBoss High Water Alarm (SA-120V-1L-33SB) is an industry-leading solution designed to provide immediate notification when liquid levels in various systems rise beyond a safe point. Suitable for both indoor and outdoor environments, this reliable alarm system helps prevent overflows and potential damage in septic systems, water tanks, lift stations, and applications involving low-density oils and sewage water. Featuring a powerful 90dB horn and a highly visible 1-inch red LED indicator light, the alarm ensures that critical high-water conditions are promptly recognized, even from a distance. Its straightforward installation and robust design make it an essential tool for safeguarding your property and equipment.

KEY FEATURES AND BENEFITS:

• Early Warning System: Provides both a loud 90dB audible alarm and a bright, easily visible 1-inch red LED light to indicate when liquid levels are excessively high.
• Versatile Application: Effectively monitors liquid levels in septic systems, water tanks, lift stations, low-density oil environments, and sewage water applications.
• Specialized Float Design: Includes a 33-foot, non-tethered SludgeBoss sewage/septic float with a self-orienting design, ensuring reliable operation in demanding liquids.
• Simple Installation: Ready to operate right out of the box and comes with a 6-foot, 3-prong grounded plug. Includes rear mounting holes, mounting feet, wall anchors, hardware, and wire ties for easy setup.
• Durable and Reliable: Designed for a wide operating temperature range of -40°F to 140°F and features a mercury-free float switch rated for 100,000 operations, suitable for potable water as well.
• Remote Monitoring Potential: Allows for monitoring of outdoor systems from the comfort and safety of indoors.
• Configurable Alarm Type: While wired for high-level alarm by default, the unit can be field-reversed for low-level alarm applications.

SPECIFICATIONS:

• Capacity: 33-foot non-tethered SludgeBoss sewage/septic float
• Alarm Sound Level: 90dB
• LED Indicator: 1-inch red light
• Operating Temperature Range: -40°F to 140°F
• Float Switch Rating: 100,000 operations
• Power Cord: 6-foot, 3-prong grounded plug
• Mounting Options: Rear mounting holes, wall anchors, and mounting feet
• Suitability: Potable water, sump pumps, water tanks, lift stations, low-density oils, sewage water

HOW TO USE:

• Float Placement: Position the 33-foot SludgeBoss float within the basin or sump at the desired high-water alarm level. Ensure the float can move freely without obstruction. Use the included wire ties if necessary to secure the float cable.
• Head Unit Mounting: Choose a suitable mounting location for the alarm head unit, either indoors or outdoors. Utilize the rear mounting holes and the provided wall anchors and hardware for secure wall mounting, or use the mounting feet for placement on a flat surface.
• Power Connection: Plug the 6-foot, 3-prong grounded power cord into a standard 120V AC electrical outlet.
• Testing: Once installed and powered, manually raise the float to simulate a high-water level. The red LED indicator light should illuminate, and the 90dB horn should sound. Lower the float to confirm the alarm deactivates.
• Ongoing Monitoring: Periodically check the alarm system to ensure the head unit is powered and the float moves freely.

BENEFITS OF USING SUMP ALARM 120V 33′ SLUDGEBOSS HIGH WATER ALARM (SA-120V-1L-33SB):

• Prevents Costly Damage: Early detection of high water levels allows for timely intervention, minimizing the risk of overflows, property damage, and equipment failure.
• Ensures System Uptime: By providing immediate alerts, the alarm helps maintain the continuous operation of critical systems like septic tanks and lift stations.
• Provides Peace of Mind: Knowing that your systems are being monitored for potential high-water issues offers significant peace of mind, especially for remote or unattended locations.
• Simple and Reliable Solution: The straightforward installation and robust design ensure dependable performance without complex programming or maintenance.
• Versatile Application: Its suitability for various liquid types and both indoor/outdoor use makes it a flexible monitoring solution for diverse needs.

FEATURES:

• Visual Alert: Large 1-inch red LED indicator light visible from a distance.
• Audible Alert: Loud 90dB horn for high-water conditions.
• Durable Float: 33-foot non-tethered SludgeBoss sewage/septic float with a self-orienting design.
• Reliable Switch: Mercury-free float switch rated for 100,000 operations.
• Water Compatibility: Suitable for use with potable water, low-density oils, sewage, and more.
• Mounting Options: Includes rear mounting holes, wall anchors, and mounting feet.
• Alarm Configuration: Can be reversed from high-level to low-level alarm settings.
• Wide Temperature Range: Operates effectively between -40°F and 140°F.
• Power Connection: Equipped with a 6-foot, 3-prong grounded plug.
