Description

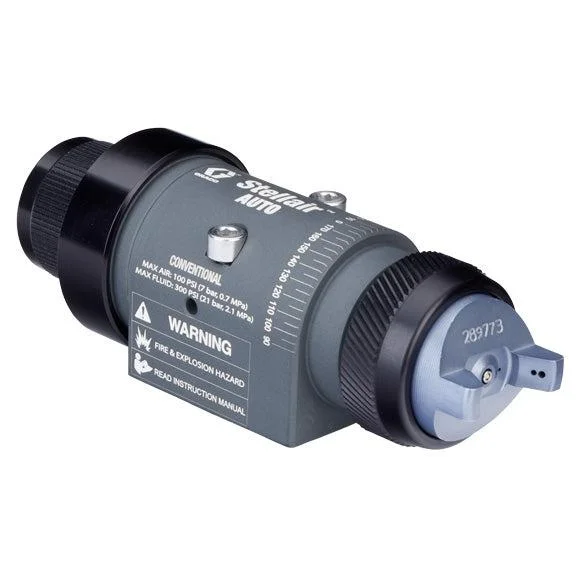

The Conventional air spray gun delivers stellar results when applying adhesive material as part of a robotic, reciprocator, flat line or other automated finishing system.
The automatic air spray gun brings all-star performance to many industrial finishing applications, including automotive, industrial metal and plastic components, wood products and architectural structures.
- Conventional is the most widely used air spray method, producing Class A, automotive finish quality.
- General industry air caps and nozzles produce a uniform, high quality spray pattern with a low atomising pressure.
- The patented spray pattern alignment and pathing tool ensures accurate and repeatable spray angle. It is easily attached and detached from the gun to keep production moving.
- The one piece fluid cartridge can be removed and replaced so quickly that it nearly eliminates maintenance related downtime.
- Its small and light size does not weigh down or wear out robot arms, reciprocators or flat line machines.
- The direct stainless steel fluid path cuts the amount of solvent needed to flush the gun, reducing VOC (volatile organic compound) emissions.
UPC Product: 00769946736410 Family Code: FAMCAP Unit of Measure: EA Height: 3 IN |7.62 CM Length: 9 IN |22.86 CM Width: 6 IN |15.24 CM Volume: .094 FT3 |.003 M3 Chargeable Weight: 1.46 LBS | .66 KG
Technical Specifications
| Body Material | Metal |
|---|---|
| Compatible Material | Adhesives, Ceramics, Fast-Set, High Solids, Sealants, Solventborne Paints, Stains, UV Coating, Waterborne |
| Fluid Orifice Size (in) | 0.03 |
| Fluid Orifice Size (mm) | 0.8 |
| Gun Type | Conventional Gun |
| Gun Weight (g) | 430 |
| Gun Weight (lb) | 1 |
| Maximum Air Pressure (bar) | 7 |
| Maximum Air Pressure (psi) | 100 |
| Maximum Fluid Temperature (°C) | 49 |
| Maximum Fluid Temperature (°F) | 120 |
| Minimum Air Inlet Pressure (bar) | 3.4 |
| Minimum Air Inlet Pressure (psi) | 50 |
| Overall Height (in) | 1.9 |
| Overall Height (mm) | 48.3 |
| Overall Length (in) | 5.10 |
| Overall Length (mm) | 129.5 |
| Overall Width (in) | 1.63 |
| Overall Width (mm) | 41.4 |
| Application | General |
| Type | Auto Gun |
| Applicator Type | Automatic |
| Needle Tip Material | PEEK |
| Fluid Adjustment Knob | N/A |
| Sound Power Level (dB(A)) | 88.82 |
| Sound Pressure Level (dB(A)) | 78.91 |
| Maximum Fluid Working Pressure (psi) | 300 |
| Maximum Fluid Working Pressure (MPa) | 2.1 |
| Maximum Fluid Working Pressure (bar) | 21 |
| Maximum Flow Rate (oz/min) | 10 |
| Maximum Air Pressure (MPa) | 0.7 |
| Minimum Air Inlet Pressure (MPa) | 0.34 |
| Gun Model | Stellair |
| Manifold Type | Not Included |
| Nozzle Size (in) | 0.03 |
| Nozzle Size (mm) | 0.8 |
| gun_series | Automatic |
