Description

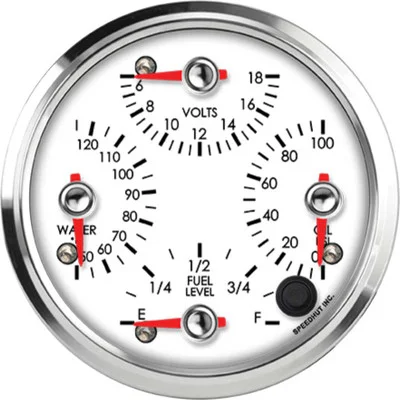

The Speedhut 4″ Quad Water Temp/Volt/Oil PSI/Fuel Level Gauge (R4-QG1-LEG) is a comprehensive monitoring solution, integrating four essential vehicle readings into a single, space-efficient 4-inch (100mm) instrument. This gauge allows you to keep a close eye on your engine’s vital statistics, including water temperature, voltage, oil pressure, and fuel level, all within a clean and organized dashboard layout. Designed for accuracy and ease of use, it provides real-time information to help you maintain optimal vehicle performance and identify potential issues promptly.
KEY FEATURES AND BENEFITS:
- Four-in-One Display: Water temperature (50-125°C), voltage (6-18V), oil pressure (0-100 psi), and fuel level (Empty to Full) all integrated into a single unit.
- Space-Efficient: Compact 4-inch size fits standard gauge openings and reduces dashboard clutter.
- Integrated Warning Light: Alerts to abnormal conditions for immediate action.
- Secure Installation: Mounting ring ensures stable placement in the dashboard.
- Enhanced Monitoring: Consolidated view of vehicle vitals improves driver awareness and helps prevent costly repairs.
SPECIFICATIONS:
- Gauge Type: Quad Gauge
- Range (Voltage): 6-18 volts
- Range (Oil Pressure): 0-100 psi
- Range (Fuel Level): E-F
- Range (Water Temperature): 50-125 °C
- Size: 4 inch (100mm)
- Hole Size: 3.93 inch (100mm)
- Standard or Metric: Metric
- Warning Light: Yes
- Gauge Mounting Ring: Included
- Ships With:
- Pressure Gauge Wiring Harness (3-Wire Cable)
- Speedhut Temperature Sensor
- 3 ft Power & Lighting Harness – for LED Lit Gauges and Clocks
- Temperature Gauge Wiring Harness (2-Wire Cable)
- Pressure Sensor – 100 psi
- Wiring Harness (2-Wire Cable)
HOW TO USE:
- Mount the Gauge: Secure the 4″ Quad Gauge into a 3.93″ (100mm) diameter opening in your dashboard using the included mounting ring.
- Connect the Wiring Harness (2-Wire Cable): Attach this harness to the main power and ground sources of your vehicle to provide power to the gauge.
- Connect the Temperature Sensor: Install the provided Speedhut temperature sensor in the appropriate location on your engine (e.g., coolant passage) and connect it to the Temperature Gauge Wiring Harness (2-Wire Cable), then connect this harness to the gauge.
- Connect the Pressure Sensor: Install the included 100 psi pressure sensor to your engine’s oil pressure port and connect it to the Pressure Gauge Wiring Harness (3-Wire Cable), then connect this harness to the gauge.
- Connect the Fuel Level Wiring: Connect the Wiring Harness (2-Wire Cable) to your existing fuel level sending unit. Note that calibration to your specific fuel level sensor (300 ohms or less) may be required.
- Connect the Power & Lighting Harness: If your gauge features LED lighting, connect the 3 ft Power & Lighting Harness to a suitable power source for illumination.
- Verify Readings: Once all connections are made, start your vehicle and check that the gauge is displaying accurate readings for water temperature, voltage, oil pressure, and fuel level.
BENEFITS OF USING THE SPEEDHUT 4″ QUAD WATER TEMP/VOLT/OIL PSI/FUEL LEVEL GAUGE (R4-QG1-LEG):
- Streamlined dashboard with four essential readings in one unit.
- Real-time metrics help maintain optimal engine performance and prevent potential damage.
- Metric readings for temperature and pressure ensure clear monitoring.
- Voltage display provides insight into the health of your vehicle’s electrical system.
- Integrated warning light aids proactive vehicle maintenance.
- Includes sensors and harnesses for a simplified installation process.
FEATURES:
- Displays four vital readings: water temperature (50-125°C), voltage (6-18V), oil pressure (0-100 psi), and fuel level (E-F).
- Compact 4-inch (100mm) size saves dashboard space.
- Designed for a 3.93-inch (100mm) mounting hole for easy integration.
- Provides readings in the metric system.
- Equipped with an integrated warning light for immediate alerts.
- Includes a spin-lock mounting ring for secure and straightforward installation.
- Comes with a dedicated Speedhut temperature sensor for accurate coolant readings.
- Includes a 100 psi pressure sensor for precise oil pressure monitoring.
- Supplied with all necessary wiring harnesses for power, sensors, and lighting.
- Offers a consolidated view of essential vehicle data for enhanced monitoring.
