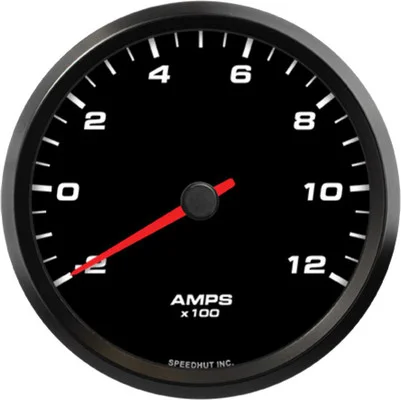

Speedhut 4″ Orion EV -200 to 1200 Amp Gauge (FOR4-AM1-EV)

Description

The Speedhut 4″ Orion EV -200 to 1200 Amp Gauge (FOR4-AM1-EV) is an essential instrument designed for precise monitoring of your electric vehicle’s electrical current. Engineered to deliver accurate and real-time readings, this gauge operates seamlessly with your EV’s CAN-bus system at a 500K baud rate. This allows you to effectively assess and optimize power consumption, making it a valuable tool for both performance monitoring and ensuring the efficient operation of your EV’s electrical components.

KEY FEATURES AND BENEFITS:

• Provides accurate and real-time readings of electrical current within a range of -200 to 1200 amps.
• Utilizes the EV’s CAN-bus system (500K baud rate) for direct and simplified data acquisition.
• Seamlessly integrates with compatible EV control units, eliminating the need for additional sensors.
• Offers a clear and easily readable 4-inch display for convenient monitoring.
• Contributes to better understanding and management of your EV’s power consumption.
• Aids in diagnosing potential electrical issues within the electric powertrain.

SPECIFICATIONS:

• Gauge Type: Amp
• Signal Type: CAN-Bus (500K baud rate)
• Range: -200 to 1200 amps
• Size: 4 inch
• Hole Size: 3.93″ (100mm)
• Ships With:
  • 3 ft Power & Lighting Harness – for LED Lit Gauges and Clocks
  • EV CAN Jumper Harness
  • EV CAN Harness

HOW TO USE:

1. Mount the Gauge: Install the 4″ Speedhut EV Amp Gauge into a 3.93″ (100mm) diameter opening in your desired location.
2. Connect the Power & Lighting Harness: Attach the provided 3 ft Power & Lighting Harness to the gauge, ensuring proper connections for power and illumination.
3. Connect the CAN-Bus Harness: Utilize the included EV CAN Jumper Harness and EV CAN Harness to connect the gauge to your electric vehicle’s CAN-bus system. Ensure the connections are secure.
4. Verify Compatibility: Confirm that your EV’s control unit operates on a 500K baud rate CAN-bus system and is compatible with Speedhut Orion series gauges.
5. Power On: Once all connections are made, power on your electric vehicle.
6. Monitor Readings: The Speedhut EV Amp Gauge will now display real-time amperage readings from -200 to 1200 amps.

BENEFITS OF USING THE SPEEDHUT 4″ ORION EV -200 TO 1200 AMP GAUGE (FOR4-AM1-EV):

• Gain a precise understanding of your EV’s current draw for efficient energy management.
• Facilitates the monitoring of electrical system performance, aiding in preventative maintenance.
• Provides essential data for diagnosing potential issues within the electric powertrain.
• Offers a clean and integrated display of crucial amperage information.
• Contributes to optimizing your EV’s range and overall efficiency.

FEATURES:

• Dedicated amp monitoring specifically designed for electric vehicles.
• Communicates directly with the EV’s computer via CAN-bus protocol.
• Wide measurement spectrum from -200 to 1200 amps to capture various operational states.
• Industry-standard 4-inch gauge size for versatile mounting options.
• Requires a 3.93″ (100mm) cutout for seamless installation.
• Comes with necessary wiring harnesses for straightforward connection to power, lighting, and the CAN network.
