Description

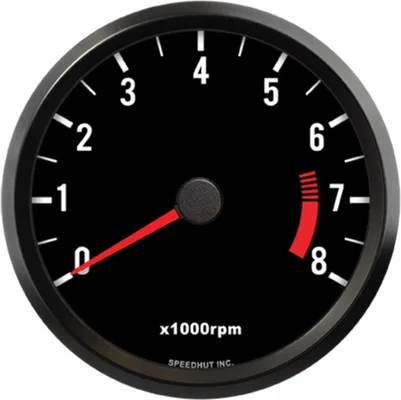

The Speedhut 4″ JDM Datsun 510 8K RPM Tachometer (L4-TC3-510) is an essential instrument for monitoring your engine’s performance. Designed with the classic aesthetic of the Japanese Domestic Market Datsun 510, this gauge provides accurate real-time RPM readings, allowing you to optimize your engine’s capabilities across a range of 1/2 pulse to 6 pulses per revolution. Its robust construction and straightforward installation process make it a valuable addition for achieving peak engine efficiency and responsiveness.
KEY FEATURES AND BENEFITS:
- Precise RPM readings: Measures up to 8,000 RPM, crucial for performance monitoring.
- JDM styling: Designed with a distinct Datsun 510 aesthetic, enhancing vehicle interiors.
- Wide compatibility: Works with standard spark plug ignition systems in 1 to 12 cylinder engines.
- Easy installation: 4-inch gauge fits a 3.95″ (100mm) mounting hole and includes all hardware.
- Complete package: Ships with required mounting hardware and wiring harnesses.
- Versatile signal support: Calibrated to function with any tach signal exceeding one volt.
- Performance optimization: Provides accurate data to support efficient engine tuning.
SPECIFICATIONS:
- Gauge Type: Tachometer
- Standard or Metric: Standard
- Tachometer Signal Type: Standard spark plug ignition systems
- Compatibility: 1-12 cylinder
- Range: 8K RPM
- Size: 4 inch
- Hole Size: 3.95″ (100mm)
- Internal Shift Light: No
- Gauge Mounting Ring: Included
- Ships With:
- 3 ft Power & Lighting Harness – for LED Lit Gauges and Clocks
- 8 ft Tachometer Harness – for LED Lit Gauges (1 Wire 2 Pin Connector)
HOW TO USE:
- Mount the Gauge: Locate a suitable 3.95″ (100mm) diameter hole in your dashboard or instrument panel. Secure the tachometer using the included gauge mounting ring.
- Connect the Power Harness: Connect the 3 ft Power & Lighting Harness to a 12V power source, ground, and illumination circuit if desired. Refer to your vehicle’s wiring diagram.
- Connect the Tachometer Signal Harness: Attach the 8 ft Tachometer Harness (1 Wire 2 Pin Connector) to your engine’s ignition signal—usually the negative side of the coil or the ECU’s tach output.
- Verify Connections: Double-check all connections to ensure correct and secure wiring before starting the engine.
- Start Your Engine: Observe the tachometer for accurate RPM readings and verify proper operation.
BENEFITS OF USING THE SPEEDHUT 4″ JDM DATSUN 510 8K RPM TACHOMETER (L4-TC3-510):
- Accurate Monitoring: Real-time RPM tracking helps prevent over-revving and supports precise performance tuning.
- Engine Optimization: Enhances decision-making for gear changes and performance adjustments.
- Classic Styling: Adds a distinctive JDM Datsun 510 look to your vehicle’s interior.
- Broad Compatibility: Works across a wide range of engine configurations using spark ignition.
- Simplified Installation: Includes all necessary components, ideal for DIY or professional setup.
FEATURES:
- Authentic JDM Datsun 510 inspired visual design.
- Measures engine speed up to a maximum of 8,000 RPM.
- Designed for seamless integration with standard spark plug ignition systems.
- Suitable for a variety of engine configurations (1 to 12 cylinders).
- Compact 4-inch gauge size for versatile mounting options.
- Requires a standard 3.95″ (100mm) diameter cutout for installation.
- Mounting ring is provided for secure and straightforward attachment.
- Includes a dedicated 3 ft power and lighting wiring harness.
- Comes with an 8 ft tachometer signal wiring harness.
- Operates effectively with tachometer signals exceeding one volt.
- Adaptable to engines with 1/2 pulse to 6 pulses per revolution.
