Speedhut 4″ EV Battery Level / SOC Gauge w/ Warning (FAE4-SC1-EV)

Description

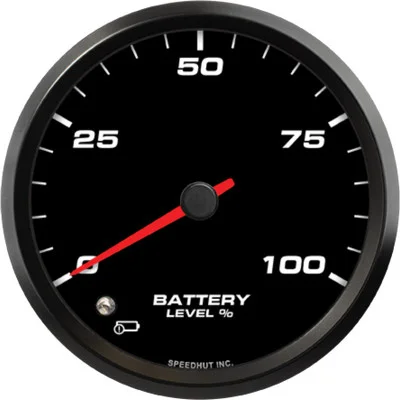

The Speedhut 4″ EV Battery Level / SOC Gauge w/ Warning (FAE4-SC1-EV) is an essential instrument for electric vehicle owners, providing clear and accurate monitoring of the battery’s State of Charge (SOC). This 4-inch gauge displays the battery level as a percentage from 0% to 100%, allowing drivers to easily understand their remaining range and plan accordingly. Designed for seamless integration with your EV’s CAN-bus system (operating at 500K baud rate), this gauge ensures reliable and precise readings, contributing to a more informed and confident driving experience. The integrated warning light activates when the battery level falls below 15%, providing a timely alert to recharge. Specifically compatible with AEM systems, this gauge is a valuable addition to any electric vehicle setup utilizing this platform.

KEY FEATURES AND BENEFITS:

• Real-time Battery Monitoring: Provides continuous and accurate display of the EV battery’s charge level (0-100%).
• Low Battery Warning: Features a built-in indicator light that illuminates when the battery level drops below 15%, prompting the driver to take action.
• CAN-Bus Integration: Designed to communicate directly with the vehicle’s CAN-bus system (500K baud rate) for reliable data acquisition.
• AEM System Compatibility: Specifically engineered for seamless operation with AEM electric vehicle control systems.
• Enhanced Awareness: Allows drivers to have a clear understanding of their remaining driving range, reducing range anxiety.
• Proactive Battery Management: Helps in making informed decisions about charging, potentially extending battery life and ensuring optimal performance.
• Easy Installation: Comes with necessary harnesses for straightforward connection to the vehicle’s electrical system.

SPECIFICATIONS:

• Gauge Type: EV Battery Level
• Signal Type: CAN-Bus (500K baud rate)
• Range: 0-100%
• Size: 4 inches (101.6 mm)
• Hole Size: 3.93 inches (100 mm)
• Warning Light Activation: Below 15%
• Included:
• 3 ft Power & Lighting Harness – for LED Lit Gauges and Clocks
• EV CAN Harness
• EV CAN Jumper Harness

HOW TO USE:

1. Connect the Power Harness: Attach the provided 3 ft Power & Lighting Harness to the gauge, ensuring correct polarity. Connect the other end to a suitable power source and ground in your vehicle.
2. Connect the EV CAN Harness: Plug the EV CAN Harness into the designated port on the Speedhut gauge.
3. Connect to the CAN-Bus: Connect the other end of the EV CAN Harness to the CAN-bus system of your AEM-compatible electric vehicle. Ensure you identify the correct CAN high and CAN low wires on your vehicle’s system.
4. Utilize the Jumper Harness (if needed): The EV CAN Jumper Harness may be used to facilitate connection to your specific CAN-bus setup, depending on the available connectors. Consult your vehicle’s wiring diagram if necessary.
5. Mount the Gauge: Install the 4″ gauge into a 3.93″ (100mm) diameter hole in your dashboard or instrument panel, securing it using the provided mounting hardware.
6. Verify Operation: Once all connections are made, power on your vehicle. The Speedhut EV Battery Level Gauge should display the current state of charge of your battery. The warning light will illuminate if the battery level drops below 15%.

BENEFITS OF USING THE SPEEDHUT 4″ EV BATTERY LEVEL / SOC GAUGE W/ WARNING (FAE4-SC1-EV):

• Provides a clear, real-time indication of your electric vehicle’s remaining battery capacity.
• Offers an early warning system for low battery levels, helping to prevent unexpected power loss.
• Ensures accurate and reliable battery information through direct CAN-bus communication with your AEM system.
• Contributes to better trip planning and management of charging needs.
• Helps maintain awareness of your battery’s condition, potentially leading to proactive maintenance.

FEATURES:

• Clear and easily readable 4-inch analog display for battery percentage (0-100%).
• Integrated LED warning light that activates at a critical low charge threshold (below 15%).
• Direct communication with the vehicle’s Controller Area Network (CAN) at a 500K baud rate.
• Specifically designed for compatibility with electric vehicle systems utilizing AEM controllers.
• Includes essential wiring harnesses for power, lighting, and CAN-bus connectivity.
• Standard 4-inch (100mm) mounting size for easy integration into most dashboards.
