Speedhut 4″ EV AEM -200-1200 Amp / 0-50C Battery Temp (FAE4-DG4-EV)

Description

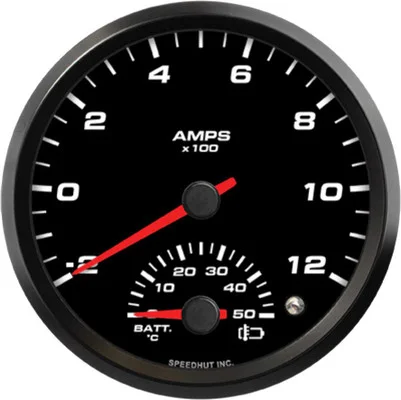

The Speedhut 4″ EV AEM -200-1200 Amp / 0-50C Battery Temp (FAE4-DG4-EV) is a specialized instrument designed to provide electric vehicle owners with critical insights into their vehicle’s electrical performance and battery health. This 4-inch (100mm) gauge integrates two essential measurements into a single, easy-to-read unit: real-time amperage and battery temperature. Utilizing advanced CAN-Bus (Controller Area Network) communication at a 500K baud rate, this gauge ensures accurate and dependable data directly from your EV’s systems. For added safety, it features a built-in warning light that illuminates when the battery temperature exceeds 40°C, allowing you to take proactive measures to protect your battery. This high-tech gauge is an indispensable tool for efficient EV power management and the prevention of potential battery-related issues.

KEY FEATURES AND BENEFITS:

• Dual Measurement: Simultaneously displays both the current flow (amperage) within your EV’s electrical system, ranging from -200 to 1200 Amps, and the battery temperature, ranging from 0 to 50 degrees Celsius. This dual functionality saves valuable dashboard space while providing comprehensive information.
• CAN-Bus Integration: Operates seamlessly with your vehicle’s CAN-Bus network at a 500K baud rate, ensuring precise and real-time data acquisition. This digital communication method offers superior accuracy and reliability compared to traditional analog signals.
• Battery Temperature Warning: Features an integrated warning light that automatically activates when the battery temperature rises above 40°C. This visual alert helps you monitor battery health and prevent potential overheating, which can impact performance and longevity.
• Easy Installation: Designed with a standard 4-inch (100mm) mounting diameter, making it compatible with many aftermarket gauge pods and dashboards. The included harnesses simplify the wiring process.
• Enhanced EV Monitoring: Provides crucial data points that are essential for understanding your EV’s power consumption during acceleration, regenerative braking efficiency, and overall battery health. This information empowers you to optimize driving habits and ensure the longevity of your vehicle’s battery.

SPECIFICATIONS:

• Gauge Type: Dual
• Signal Type: CAN-Bus (500K baud rate)
• Amp Range: -200 to 1200 Amps
• Temperature Range: 0 to 50°C
• Size: 4 inches (100mm)
• Hole Size: 3.93 inches (100mm)
• Units: Metric (Celsius)
• Battery Temp Warning: Activates above 40°C
• Included:
  • 3 ft Power & Lighting Harness – for LED Lit Gauges and Clocks
  • EV CAN Jumper Harness
  • EV CAN Harness

HOW TO USE:

1. Mount the Gauge: Install the 4″ Speedhut EV Dual Gauge into a suitable 3.93″ (100mm) diameter opening in your dashboard or gauge pod. Ensure it is securely fastened.
2. Connect the Power and Lighting Harness: Attach the provided 3 ft Power & Lighting Harness to the gauge. Connect the power and ground wires to your vehicle’s electrical system according to the harness instructions. This will power the gauge and its LED illumination.
3. Connect the EV CAN Harness: Connect the EV CAN Harness to the designated CAN-Bus port on your Speedhut gauge.
4. Interface with the Vehicle’s CAN-Bus: Connect the other end of the EV CAN Harness to your electric vehicle’s CAN-Bus network. This connection allows the gauge to receive real-time data on amperage and battery temperature.
5. Utilize the EV CAN Jumper Harness (if needed): The EV CAN Jumper Harness may be used to connect other CAN-Bus devices or to facilitate the connection to your vehicle’s specific CAN-Bus configuration. Refer to the Speedhut documentation for specific usage instructions.
6. Monitor Readings: Once properly installed and connected, the gauge will display the live amperage and battery temperature readings. Observe these values during vehicle operation to understand power consumption and battery status.
7. Heed the Warning Light: Pay attention to the battery temperature warning light. If it illuminates, it indicates that the battery temperature has exceeded 40°C. Take appropriate action to allow the battery to cool down.

BENEFITS OF USING THE SPEEDHUT 4″ EV AEM -200-1200 AMP / 0-50C BATTERY TEMP (FAE4-DG4-EV):

• Proactive Battery Management: Real-time temperature monitoring and the integrated warning light enable you to proactively manage your EV’s battery health, potentially extending its lifespan and preventing performance degradation due to overheating.
• Optimized Power Usage: By observing the amperage readings, you gain a better understanding of your driving habits and their impact on energy consumption. This can help you drive more efficiently and maximize your vehicle’s range.
• Enhanced Safety: The battery temperature warning provides an immediate visual cue if the battery is getting too hot, allowing you to take necessary precautions to ensure safety and prevent potential damage.
• Clean and Integrated Look: The dual gauge design provides two critical data points in a single, sleek 4-inch unit, maintaining a clean and organized appearance in your vehicle’s interior.
• Accurate and Reliable Data: Leveraging the CAN-Bus communication protocol ensures highly accurate and up-to-date readings of your EV’s performance metrics.

FEATURES:

• Simultaneous display of current flow and battery temperature.
• Direct data acquisition via CAN-Bus (500K baud rate).
• Visual alert for high battery temperature (above 40°C).
• Standard 4-inch (100mm) gauge size for versatile mounting options.
• Clear and easy-to-read metric units (°C for temperature).
• Includes necessary harnesses for straightforward connection.
• Provides essential data for informed EV operation and maintenance.
