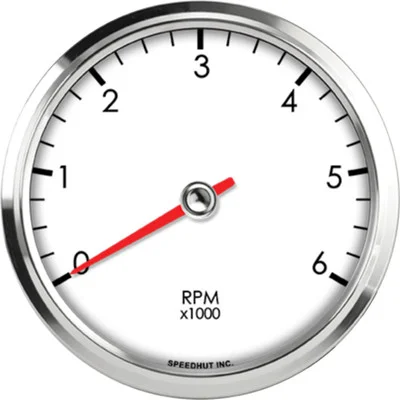

Speedhut 4″ 6K RPM Tachometer (L4-TC2-LEG)

Description

The Speedhut 4″ 6K RPM Tachometer (L4-TC2-LEG) is a reliable and easy-to-install gauge designed to accurately display your engine’s revolutions per minute (RPM). Specifically built for gasoline engines utilizing standard spark plug ignition systems, this 4-inch (100mm) tachometer is compatible with a wide range of engines, from 1 to 12 cylinders. The included mounting ring ensures a secure fit in a 3.95-inch (100mm) dash opening. With the provided power and tachometer harnesses, installation is simplified, allowing you to quickly and effectively monitor your engine’s performance. While this model does not feature an internal shift light, its clear display and accurate readings provide essential information for optimal engine operation.

KEY FEATURES AND BENEFITS:

• Accurate RPM Readout: Provides an easy-to-understand display of engine revolutions per minute up to 6,000 RPM.
• Broad Engine Compatibility: Suitable for gasoline engines with 1 to 12 cylinders using standard spark plug ignition systems.
• Simple Installation: Includes a 3 ft power and lighting harness and an 8 ft tachometer signal harness to simplify setup.
• Secure Mounting Solution: Comes with a gauge mounting ring for a stable and firm fit in a 3.95-inch opening.
• LED Illumination: Backlit for visibility during nighttime or low-light driving.
• Industry Standard Sizing: 4-inch gauge diameter fits most aftermarket mounting solutions.
• Dedicated Signal Input: Designed specifically for standard spark plug ignition systems to ensure reliable readings.

SPECIFICATIONS:

• Units: Standard
• Gauge Type: Tachometer
• Tachometer Signal Type: Standard spark plug ignition systems
• Compatibility: 1-12 cylinder engines
• Range: 0-6,000 RPM
• Size: 4 inches (nominal)
• Mounting Hole Size: 3.95 inches (100mm)
• Internal Shift Light: No
• Gauge Mounting Ring: Included
• Ships With:
• 3 ft Power & Lighting Harness (for LED Lit Gauges and Clocks)
• 8 ft Tachometer Harness (for LED Lit Gauges – 1 Wire 2 Pin Connector)

HOW TO USE:

1. Preparation: Identify a suitable location on your dashboard with a 3.95-inch (100mm) diameter opening.
2. Mounting the Gauge: Insert the Speedhut 4″ 6K RPM Tachometer into the dashboard opening from the front.
3. Securing the Gauge: From the back of the dashboard, slide the included gauge mounting ring over the back of the gauge and tighten it to secure the tachometer in place.
4. Connecting the Power Harness: Connect the 3 ft Power & Lighting Harness to the designated power and ground sources in your vehicle’s electrical system. This harness also provides power for the gauge’s LED illumination.
5. Connecting the Tachometer Harness: Locate the tachometer signal wire from your engine’s ignition system (typically connected to the negative (-) side of the ignition coil or a designated tachometer output). Connect this signal wire to the appropriate wire on the 8 ft Tachometer Harness (1 wire, 2-pin connector).
6. Final Connections: Ensure both the power and tachometer harnesses are securely connected to the back of the Speedhut tachometer.
7. Testing: Start your engine and observe the tachometer to verify it is receiving a signal and displaying the correct RPM readings.

BENEFITS OF USING THE SPEEDHUT 4″ 6K RPM TACHOMETER (L4-TC2-LEG):

• Clear Engine Monitoring: Gives immediate feedback on engine speed to help optimize performance.
• Performance Shifting: Assists in making gear changes at the ideal RPM for better acceleration and efficiency.
• Engine Protection: Prevents over-revving and helps extend engine life.
• Diagnostic Aid: Detects irregular RPM behavior that can signal engine issues.
• Quick Installation: Comes with essential harnesses and hardware for an easy setup.

FEATURES:

• Displays RPM up to 6,000 for real-time engine speed tracking.
• Works with standard spark plug ignition systems across 1 to 12 cylinder engines.
• Equipped with a 4-inch diameter face for enhanced readability.
• Requires a 3.95-inch (100mm) dashboard opening.
• LED backlighting ensures visibility in low-light conditions.
• Spin-lock mounting ring included for secure installation.
• Ships with a 3-foot power and lighting harness and an 8-foot tachometer signal harness.
• Part of the Speedhut Legacy series with a classic design.
