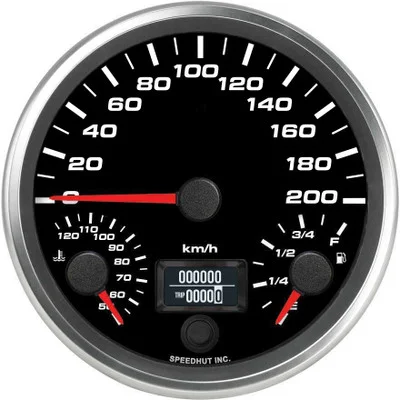

Speedhut 4.5″ Triple 200km/h Speedo/Fuel Level/WT Temp (L45-TG005-REV)

Description

The Speedhut 4.5″ Triple 200km/h Speedo/Fuel Level/WT Temp (L45-TG005-REV) is a comprehensive vehicle monitoring instrument, integrating a GPS speedometer, water temperature gauge, and fuel level gauge into a single, efficient 4.5-inch unit. This all-in-one solution provides drivers with immediate access to essential information, ensuring a clear understanding of their vehicle’s operational status. The incorporation of a GPS speedometer streamlines installation and eliminates the complexities associated with traditional speed sensors.

KEY FEATURES AND BENEFITS:

• Integrated design: Saves dashboard space while combining speed, temperature, and fuel level data.
• GPS speedometer function: Allows simple 12V setup without mechanical linkages or calibration for tires or gear ratios.
• Worldwide compatibility: Delivers accurate readings using free GPS technology with no subscription fees.
• LED illumination: Ensures optimal visibility under all lighting conditions.
• Streamlined monitoring: Combines three critical gauges into one unit for improved safety and awareness.

SPECIFICATIONS:

• Gauge Type: Triple GPS Speedometer
• Speedometer Range: 0-200 km/h
• Water Temperature Range: 50°C – 125°C
• Fuel Level Range: Empty (E) – Full (F)
• Size: 4.5 inches (114.3 mm)
• Mounting Hole Size: 4.230 inches (108 mm)
• Units: Metric
• Lighting: LED
• Included:
• 3 ft Turn Signal and High Beam Harness
• Speedhut Temperature Sensor
• GPS Antenna with 9.8 ft cable and male SMA connector
• Wiring Harness (2-Wire Cable)
• Temperature Gauge Wiring Harness (2-Wire Cable)
• 3 ft Power & Lighting Harness

HOW TO USE:

1. Mount the Gauge: Secure the 4.5″ Triple Gauge in a suitable location on your dashboard using the 4.230″ (108mm) mounting hole.
2. Connect Power and Lighting: Utilize the provided 3 ft Power & Lighting Harness to connect the gauge to a 12V power source and vehicle lighting system.
3. Install GPS Antenna: Mount the included GPS antenna in a location with a clear view of the sky and connect it to the gauge.
4. Connect Temperature Sensor: Install the Speedhut Temperature Sensor in the appropriate location on your engine and connect it to the gauge using the Temperature Gauge Wiring Harness.
5. Connect Fuel Level: Connect the gauge to your vehicle’s existing fuel level sending unit using the provided Wiring Harness.
6. Connect Indicator Lights (Optional): If desired, connect the 3 ft Turn Signal and High Beam Harness to your vehicle’s turn signal and high beam indicators.
7. Power On: Once all connections are secure, power on your vehicle. The gauge will begin receiving GPS signals for speed and display the temperature and fuel level readings.

BENEFITS OF USING THE SPEEDHUT 4.5″ TRIPLE 200KM/H SPEEDO/FUEL LEVEL/WT TEMP (L45-TG005-REV):

• Clean, integrated design: Reduces dashboard clutter while enhancing the aesthetic.
• Real-time monitoring: Displays live data for speed, temperature, and fuel level for proactive vehicle management.
• Easy readability: Bright LED lighting ensures excellent visibility at all times.
• User-friendly solution: Consolidates multiple functions into one efficient and informative gauge.

FEATURES:

• Combines speed, water temperature, and fuel level into a single 4.5-inch unit.
• Uses GPS for speed data, avoiding the need for mechanical speed sensors.
• Speed range of up to 200 km/h accommodates various vehicle types.
• Monitors water temperature from 50°C to 125°C.
• Displays fuel level from Empty to Full.
• LED backlighting enhances visibility in day or night conditions.
• Simple 12V electrical hookup streamlines installation.
• Comes complete with wiring harnesses and sensors for full setup.
• Globally operational with free GPS—no subscriptions required.
• Delivers accurate, real-time feedback on critical vehicle systems.
