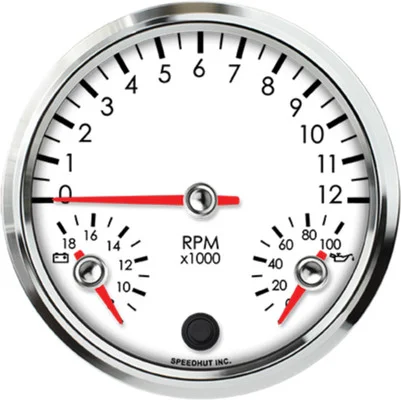

Speedhut 4.5″ 12K Triple Tachometer/Volt/Oil PSI Gauge (L45-TG009-LEG)

Description

The Speedhut 4.5″ 12K Triple Tachometer/Volt/Oil PSI Gauge (L45-TG009-LEG) offers a comprehensive engine monitoring solution by integrating three essential gauges into a single, precise instrument. This space-saving design provides real-time data on your engine’s revolutions per minute, electrical system voltage, and oil pressure, allowing for a complete understanding of its operational status. Engineered for accuracy and ease of use, this gauge is a valuable tool for any driver seeking to maintain optimal vehicle performance and responsiveness.

KEY FEATURES AND BENEFITS:

• All-in-One Gauge: Combines tachometer, voltmeter, and oil pressure gauge for centralized engine data monitoring.
• Wide Tachometer Compatibility: Supports 1/2 to 6 pulses per revolution and works with any engine producing a tach signal over one volt.
• High RPM Capacity: Measures engine speed up to 12,000 RPM, ideal for high-performance applications.
• Electrical System Monitoring: Provides accurate voltage readings between 8 and 18 volts.
• Oil Pressure Monitoring: Displays oil pressure from 0 to 100 PSI using the included sensor.
• LED Illumination: Ensures excellent visibility under all lighting conditions.
• Durable Construction: Built to withstand demanding environments and extended use.
• Easy Installation: Includes all necessary hardware and harnesses for straightforward setup.

SPECIFICATIONS:

• Gauge Type: Triple Tachometer
• Tachometer Range: 0-12,000 RPM
• Voltmeter Range: 8-18 Volts
• Oil Pressure Range: 0-100 PSI
• Size: 4.5 inches (114.3 mm)
• Hole Size: 4.230 inches (108 mm)
• Lighting: LED
• Included:
  • 8 ft Tachometer Harness (1 Wire 2 Pin Connector for LED Lit Gauges)
  • Pressure Gauge Wiring Harness (3-Wire Cable)
  • Pressure Sensor (100 PSI)
  • 8 ft Wiring Harness (1 Wire 3 Pin Connector for AFWB and EL Lit Gauges Only)
  • 3 ft Power & Lighting Harness (for LED Lit Gauges and Clocks)

HOW TO USE:

1. Mount the Gauge: Locate a suitable position on your dashboard and create a 4.230″ (108mm) diameter hole. Insert the gauge and secure with the spin-lock ring.
2. Connect the Power and Lighting Harness: Attach the 3 ft harness to the gauge. Connect power to a switched 12V source, ground to a grounding point, and lighting wire to the vehicle’s lighting circuit if desired.
3. Connect the Tachometer Harness: Link the 8 ft harness (1 wire 2 pin connector) to the tachometer signal output on the engine’s ECU or ignition system.
4. Install the Pressure Sensor: Mount the 100 PSI pressure sensor to an appropriate oil system port.
5. Connect the Pressure Gauge Wiring Harness: Attach the 3-wire cable from the sensor to the designated terminals on the back of the gauge.
6. Connect the Voltage Input: Confirm that the power connection made earlier also supplies voltage input to the gauge.
7. Test the Gauge: Start the engine and check that all readings—RPM, voltage, and oil pressure—are displayed correctly.

BENEFITS OF USING THE SPEEDHUT 4.5″ 12K TRIPLE TACHOMETER/VOLT/OIL PSI GAUGE (L45-TG009-LEG):

• Centralized Monitoring: Offers a clear, unified display of RPM, voltage, and oil pressure in one unit.
• Preventative Maintenance: Enables early detection of potential engine issues for timely intervention.
• Enhanced Engine Efficiency: Accurate RPM readings help maintain optimal engine performance.
• Safe Driving: Bright LED illumination ensures easy visibility, reducing distraction.
• Versatile Compatibility: Works with a wide range of engines and signal types.
• Simple Installation: Designed for quick and secure setup with included components.

FEATURES:

• Multi-Function Unit: Consolidates RPM, voltage, and oil pressure gauges into a single compact device.
• Broad Engine Support: Handles 1/2 to 6 pulses per revolution; calibrated for tach signals over one volt.
• Accurate Voltage Readout: Displays 8-18V to reflect real-time electrical system status.
• Precise Oil Monitoring: Measures oil pressure up to 100 PSI with the included sensor.
• Compact Fit: Standard 4.5-inch diameter with a 4.230-inch mounting hole.
• Enhanced Visibility: Bright LED backlighting for clear daytime and nighttime readability.
• Complete Setup: Includes spin-lock ring, pressure sensor, and all necessary wiring harnesses.
