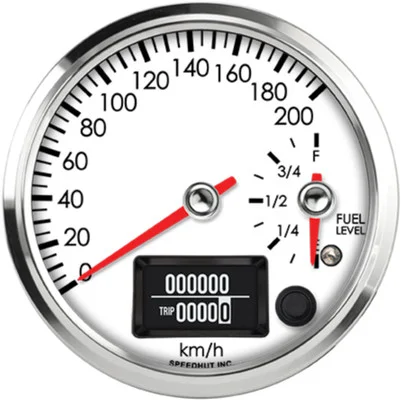

Speedhut 4″ 200km/h GPS Speedometer/Fuel Level Dual Gauge (R4-DS5-LEG)

Description

Experience a new standard of accuracy and convenience with the Speedhut 4″ 200km/h GPS Speedometer/Fuel Level Dual Gauge (R4-DS5-LEG). This innovative gauge combines real-time, precise speed indication via GPS technology with reliable fuel level monitoring into a single, space-saving 4-inch unit. Say goodbye to the complexities of traditional speed sensors and welcome effortless installation and operation. Navigate with absolute confidence, knowing your speed and fuel status are displayed with exceptional clarity.

KEY FEATURES AND BENEFITS:

• Accurate Speed Readings: Utilizes GPS technology to provide precise speed measurements in real-time, eliminating the need for mechanical connections or sensor calibration.
• Combined Functionality: Integrates both a speedometer (0-200 km/h) and a fuel level gauge into a single 4-inch unit, offering a comprehensive overview of critical driving information.
• Simple Installation: Requires only a 12V power connection and mounting of the included waterproof GPS antenna, making setup quick and hassle-free.
• Worldwide Operation: Functions globally with free GPS technology, requiring no subscriptions or additional fees. It operates as a receive-only system, ensuring privacy.
• Enhanced Accuracy: Features an internal microprocessor that ensures pinpoint accuracy in both speed and fuel level readings.
• Reliable Pointer Movement: Equipped with a high torque stepper motor that guarantees precise and stable pointer movement, even under demanding driving conditions.
• Easy Mounting: Designed with a slim case and a convenient spin-lock ring for straightforward and secure mounting in a 3.95″ (100mm) hole.
• Durable Construction: Features a solid billet aluminum bezel for added robustness and a premium aesthetic. The weather-resistant design ensures longevity in various environmental conditions.
• Peace of Mind: Backed by a Lifetime Warranty, reflecting the quality and dependability of American craftsmanship.

SPECIFICATIONS:

• Gauge Type: Dual GPS Speedometer / Fuel Level
• Speedometer Range: 0 – 200 km/h (Metric)
• Fuel Level Range: E (Empty) – F (Full)
• Size: 4 inches (diameter)
• Mounting Hole Size: 3.95 inches (100mm)
• Included:
• 3 ft Power & Lighting Harness (for LED Lit Gauges and Clocks)
• GPS Antenna with 9.8 ft long cable and male SMA connector
• Wiring Harness (2-Wire Cable)

HOW TO USE:

• Mount the Gauge: Locate a suitable 3.95″ (100mm) diameter opening in your dashboard. Insert the Speedhut Dual Gauge into the opening and secure it using the spin-lock ring from the back of the gauge.
• Connect Power and Ground: Connect the red wire from the provided Power & Lighting Harness to a 12V positive power source in your vehicle. Connect the black wire to a reliable ground point on your vehicle’s chassis.
• Connect Lighting (Optional): If your gauge has LED lighting, connect the additional wires in the Power & Lighting Harness according to the instructions for your desired lighting configuration (e.g., to your vehicle’s headlight circuit for illumination when lights are on).
• Mount the GPS Antenna: Choose a location for the GPS antenna that has a clear view of the sky. Ensure the mounting surface is clean and dry. The antenna is waterproof and can be mounted externally or internally (though external mounting generally provides the best signal reception). Secure the antenna using its mounting method.
• Connect the GPS Antenna: Route the cable from the GPS antenna to the back of the gauge and connect the male SMA connector to the corresponding connector on the gauge.
• Connect the Fuel Level Sender: Connect the two-wire cable from the provided Wiring Harness to the fuel level sending unit in your vehicle’s fuel tank. Refer to your vehicle’s wiring diagram to identify the correct wires for the fuel level sender. Connect the other end of this harness to the designated terminals on the back of the Speedhut gauge.
• Test the Gauge: Once all connections are made, turn on your vehicle’s ignition. The speedometer should begin to register your speed once a GPS signal is acquired, and the fuel level gauge should indicate the current fuel level.

BENEFITS OF USING THE SPEEDHUT 4″ 200KM/H GPS SPEEDOMETER/FUEL LEVEL DUAL GAUGE (R4-DS5-LEG):

• Experience unparalleled driving confidence and convenience with the Speedhut Dual GPS Speedometer and Fuel Level gauge.
• The GPS-based speedometer offers highly accurate speed readings without the complexities of traditional sensors, ensuring precise information regardless of tire size or gear ratios.
• The integrated fuel level gauge provides a clear and reliable indication of your fuel status, preventing unexpected empty tanks.
• The straightforward installation saves time and effort, getting you up and running quickly.
• With worldwide GPS operation and a robust, weather-resistant design backed by a lifetime warranty, this gauge offers long-term reliability and peace of mind for any vehicle.
• The combined functionality saves valuable dashboard space while providing essential driving data at a glance.

FEATURES:

• Real-time speed tracking via satellite-based positioning.
• Simultaneous display of speed up to 200 kilometers per hour and fuel tank level.
• Effortless setup requiring only power and GPS antenna connection.
• Global operation utilizing free GPS signals, no subscriptions needed.
• Incorporated microchip for maximum reading precision.
• Robust motor drive for stable and accurate needle movement.
• Low-profile housing with a secure twist-on mounting ring.
• Machined aluminum outer ring for enhanced strength and visual appeal.
• Engineered to withstand various weather conditions.
• Guaranteed for the life of the product, ensuring lasting performance.
• Manufactured with pride in the USA, reflecting superior quality.
