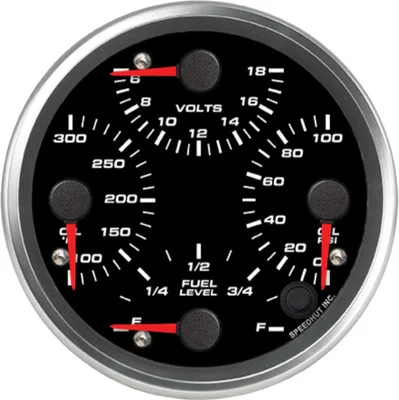

Speedhut 4-1/2″ Quad Oil Temp/Volts/Oil PSI/Fuel Level (R45-QG4-REV)

Description

The Speedhut 4-1/2″ Quad Oil Temp/Volts/Oil PSI/Fuel Level (R45-QG4-REV) is a comprehensive instrument designed to provide a clear and consolidated view of your vehicle’s most critical operating parameters. Integrating four essential readings into a single, high-quality gauge, it offers an efficient and space-saving solution for monitoring your engine’s health and fuel status. Keep a constant eye on your oil temperature, electrical system voltage, oil pressure, and fuel level with this all-in-one unit.

KEY FEATURES AND BENEFITS:

• Four-in-One Monitoring: Displays oil temperature, voltage, oil pressure, and fuel level simultaneously, reducing dashboard clutter and providing essential information at a glance.
• Wide Compatibility: Operates on a 6-18 volt electrical system and monitors oil temperature within a 100-300 °F range and oil pressure from 0-100 PSI. The fuel level display is compatible with most standard fuel level sensors with a resistance of 300 ohms or less.
• Easy Installation: The 4-1/2 inch gauge fits into a standard 4.20 inch (107mm) mounting hole, and the included gauge mounting ring simplifies the installation process.
• Integrated Warning System: Features a built-in warning light to alert you to critical conditions, allowing for proactive maintenance and preventing potential issues.
• Complete Wiring Included: Comes with all necessary wiring harnesses for power, lighting, pressure, and temperature, ensuring a straightforward connection.
• Included Sensors: This package includes a 100 PSI pressure sensor and a Speedhut temperature sensor, providing the necessary components for immediate functionality of the oil pressure and temperature readings.

SPECIFICATIONS:

• Gauge Type: Quad Gauge
• Voltage Range: 6-18 volts
• Oil Temperature Range: 100-300 °F
• Fuel Level Range: Empty (E) – Full (F)
• Oil Pressure Range: 0-100 PSI
• Size: 4 1/2 inch
• Hole Size: 4.20 inch (107mm)
• Units: Standard
• Warning Light: Yes
• Gauge Mounting Ring: Included
• Fuel Level Signal Type: 300 ohms or less (most fuel level sensors)
• Included: 3 ft Power & Lighting Harness, Pressure Gauge Wiring Harness (3-Wire Cable), Wiring Harness (2-Wire Cable), Temperature Gauge Wiring Harness (2-Wire Cable), Pressure Sensor (100 PSI), Speedhut Temperature Sensor

HOW TO USE:

1. Mount the Gauge: Locate a suitable 4.20 inch (107mm) diameter opening on your dashboard. Insert the Speedhut Quad Gauge into the opening and secure it using the included gauge mounting ring from the back.
2. Connect the Power and Lighting Harness: Connect the 3 ft Power & Lighting Harness to a suitable power source (typically ignition-switched 12V) and ground in your vehicle. This harness also provides power for the gauge’s internal lighting.
3. Connect the Pressure Sensor: Install the included 100 PSI pressure sensor at the appropriate port on your engine’s oil system. Connect the Pressure Gauge Wiring Harness (3-Wire Cable) between the pressure sensor and the corresponding terminals on the back of the gauge.
4. Connect the Temperature Sensor: Install the included Speedhut temperature sensor at the designated location for measuring engine oil temperature. Connect the Temperature Gauge Wiring Harness (2-Wire Cable) between the temperature sensor and the corresponding terminals on the back of the gauge.
5. Connect the Fuel Level Sensor: Connect the Wiring Harness (2-Wire Cable) to your existing fuel level sensor. Ensure your fuel level sensor has an output of 300 ohms or less. Connect the other end of the harness to the designated terminals on the back of the gauge.
6. Verify Connections: Double-check all wiring connections to ensure they are secure and correct according to the wiring diagrams provided with the gauge.
7. Test the Gauge: Turn on your vehicle’s ignition to power the gauge and observe if all readings are displaying correctly. Verify the warning light functionality as needed.

BENEFITS OF USING THE SPEEDHUT 4-1/2″ QUAD OIL TEMP/VOLTS/OIL PSI/FUEL LEVEL (R45-QG4-REV):

• Centralized Information: Provides a single point of monitoring for four critical vehicle parameters, enhancing driver awareness and reducing the need to scan multiple individual gauges.
• Space Efficiency: Consolidates multiple gauges into one, freeing up valuable dashboard space for other accessories or a cleaner aesthetic.
• Early Problem Detection: Allows for the early detection of potential issues with oil pressure, oil temperature, or charging system voltage, potentially preventing costly repairs.
• Accurate Monitoring: Provides precise readings of essential vehicle functions, ensuring you have reliable information about your engine’s performance and fuel level.
• Simplified Installation: The inclusion of necessary wiring and sensors (for oil pressure and temperature) streamlines the installation process.

FEATURES:

• Standard Unit Measurement: Displays oil temperature in Fahrenheit and oil pressure in PSI, aligning with common automotive standards.
• Direct Wiring Connections: Utilizes included harnesses for straightforward electrical connections to power, sensors, and lighting.
• Visual Alert System: Incorporates a warning light that can be configured to indicate out-of-range conditions for any of the monitored parameters.
• Secure Mounting: Designed for a precise fit in a 4.20-inch opening with a spin-lock ring for stable installation.
• Sensor Inclusion (Oil): Comes bundled with a dedicated pressure sensor for accurate oil pressure readings and a temperature sensor for oil temperature monitoring.
