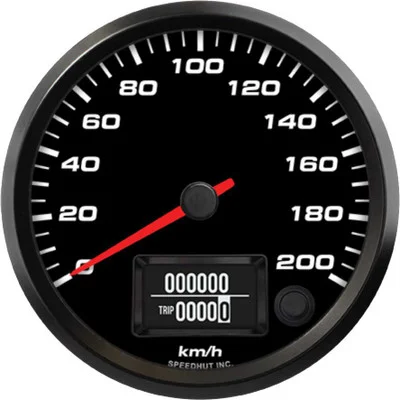

Speedhut 4-1/2″ EV Orion 200 km/h Speedometer Gauge (FOR45-S3-EV)

Description

The Speedhut 4-1/2″ EV Orion 200 km/h Speedometer Gauge (FOR45-S3-EV) is a specialized instrument designed to provide accurate and reliable speed readings for electric vehicles. Engineered for seamless integration with your EV’s existing systems, this gauge utilizes the Controller Area Network (CAN-Bus) protocol to directly communicate with your vehicle’s Electronic Control Unit (ECU). This eliminates the need for traditional speed sensors, resulting in a clean installation and precise speed monitoring up to 200 km/h. The metric display ensures straightforward speed interpretation for users familiar with the kilometer per hour unit. Optional support for 12 Volt activated turn signals and high beam indicators further enhances its functionality, making it a valuable addition to any electric vehicle build or upgrade.

KEY FEATURES AND BENEFITS:

• Accurate Speed Readings: Directly receives speed data from the EV’s ECU via CAN-Bus, ensuring precise and real-time speed information.
• Simplified Installation: Integrates easily into the vehicle’s CAN-Bus network (500K baud rate), eliminating the complexity of installing traditional speed sensors.
• Metric Display: Clearly displays speed in kilometers per hour (km/h), a widely used metric unit.
• Optional Indicators: Offers the possibility to connect and display 12 Volt activated turn signal and high beam indicators (wiring may be required).
• Complete Wiring Solution: Ships with essential harnesses, including the EV CAN Harness, 3 ft Power & Lighting Harness, and EV CAN Jumper Harness, facilitating a straightforward connection process.

SPECIFICATIONS:

• Gauge Type: Speedometer
• Signal Type: CAN-Bus (500K baud rate)
• Range: 0 – 200 km/h
• Size: 4 1/2 inch
• Hole Size: 4.230 inches (108mm)
• Units: Metric (km/h)
• Optional Indicators: 12 Volt Activated Turn Signals and High Beam (wiring not included)
• Included:
  – EV CAN Harness
  – 3 ft Power & Lighting Harness
  – EV CAN Jumper Harness

HOW TO USE:

1. Connect the EV CAN Harness: Plug the provided EV CAN Harness into the designated CAN-Bus port on your electric vehicle’s ECU.
2. Connect the Gauge: Connect the other end of the EV CAN Harness to the corresponding connector on the back of the Speedhut EV Speedometer Gauge.
3. Connect Power and Lighting: Use the included 3 ft Power & Lighting Harness to connect the gauge to a suitable 12V power source and ground in your vehicle. This harness also powers the LED illumination of the gauge.
4. Optional Indicator Wiring (if desired): If you wish to use the optional turn signal and high beam indicators, connect the respective 12V signal wires from your vehicle’s lighting system to the designated terminals on the gauge (refer to the gauge’s wiring diagram for specific connections).
5. Mount the Gauge: Insert the 4-1/2″ Speedometer Gauge into a 4.230″ (108mm) diameter hole in your vehicle’s dashboard or instrument panel and secure it using the provided mounting hardware.
6. Verify Functionality: Once all connections are made, power on your electric vehicle and observe the speedometer to ensure it is receiving and displaying speed data correctly. Check the optional turn signal and high beam indicators if connected.

BENEFITS OF USING THE SPEEDHUT 4-1/2″ EV ORION 200 KM/H SPEEDOMETER GAUGE (FOR45-S3-EV):

• Provides highly accurate and real-time speed information directly from your EV’s ECU.
• Offers a clean and modern look to your electric vehicle’s instrumentation.
• Simplifies the installation process compared to traditional speedometers requiring separate sensors.
• Ensures compatibility with most aftermarket EV control units utilizing CAN-Bus communication.
• Offers the convenience of optional integrated turn signal and high beam indicators.
• Comes with all necessary harnesses for a straightforward setup.

FEATURES:

• Direct data retrieval via CAN-Bus protocol at a 500K baud rate.
• Clear and easy-to-read metric (km/h) display.
• Designed to fit a standard 4 1/2 inch (108mm) mounting hole.
• Includes dedicated harnesses for CAN communication, power, and lighting.
• Supports optional 12V activation for turn signals and high beam.
