Description

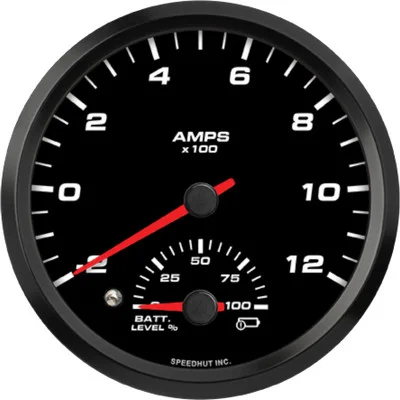

The Speedhut 4-1/2″ EV Orion -200-1200 Amp/Batt Level Gauge (FOR45-DG9-EV) offers a precise and convenient way to monitor the vital electrical parameters of your electric vehicle. This single, integrated unit displays both the current flow (Amps) and the battery’s state of charge, providing you with essential information for efficient driving and battery management. Designed for seamless integration with EV systems utilizing the CAN-Bus communication protocol, this gauge delivers accurate, real-time data directly from your vehicle’s electronics. The added safety of a built-in low battery warning light ensures you are promptly alerted when it’s time to recharge.
KEY FEATURES AND BENEFITS:
- Dual Monitoring: Provides simultaneous readings of amperage (-200 to 1200 Amps) and battery level (0-100%) in one display.
- CAN-Bus Integration: Operates at a 500K baud rate for direct and reliable data acquisition from your EV’s CAN-Bus system.
- Low Battery Warning: Features an integrated warning light that illuminates when the battery level falls below 15%, enhancing awareness and preventing unexpected power depletion.
- Simplified Installation: Designed for a 4.230″ (108mm) mounting hole and includes necessary harnesses for connection.
- Real-time Data: Offers immediate feedback on your vehicle’s energy consumption and remaining battery capacity.
- Enhanced Confidence: Empowers drivers with the information needed for optimal energy management and trip planning.
SPECIFICATIONS:
- Gauge Type: Dual (Amp Meter & Battery Level)
- Signal Type: CAN-Bus (500K baud rate)
- Amp Meter Range: -200 to 1200 Amps
- Battery Level Range: 0-100%
- Size: 4 1/2 inch
- Hole Size: 4.230 inches (108mm)
- Warning Light Activation: Below 15% Battery Level
- Included: EV CAN Harness, 3 ft Power & Lighting Harness, EV CAN Jumper Harness
HOW TO USE:
- Mount the Gauge: Secure the 4-1/2″ dual gauge into a 4.230″ (108mm) diameter opening in your vehicle’s dashboard or instrument panel.
- Connect the EV CAN Harness: Plug the provided EV CAN Harness into the designated CAN-Bus port on your vehicle’s electrical system.
- Connect the Power & Lighting Harness: Attach the 3 ft Power & Lighting Harness to a suitable power source and ground in your vehicle to illuminate the gauge.
- Connect the EV CAN Jumper Harness: Use the EV CAN Jumper Harness as needed to facilitate the CAN-Bus connection, depending on your vehicle’s specific wiring setup.
- Verify Functionality: Once all connections are secure, power on your vehicle to ensure the gauge is receiving data and displaying the amperage and battery level readings correctly. The warning light should illuminate if the battery level is below 15%.
BENEFITS OF USING THE SPEEDHUT 4-1/2″ EV ORION -200-1200 AMP/BATT LEVEL GAUGE (FOR45-DG9-EV):
- Provides a clear and consolidated view of two critical EV parameters, reducing dashboard clutter.
- Offers accurate, real-time monitoring of energy consumption and battery status through direct CAN-Bus integration.
- Increases driving safety and awareness with the integrated low battery level warning light.
- Simplifies installation with the included wiring harnesses, saving time and effort.
- Empowers EV owners to make informed decisions about energy usage and charging needs, potentially extending range and battery lifespan.
- Contributes to a more intuitive and informative driving experience for electric vehicle owners.
FEATURES:
- Simultaneous display of current flow and battery charge percentage.
- Direct communication with the vehicle’s computer via CAN-Bus protocol.
- Visual alert for critically low battery levels.
- Designed for a standard 4-1/2 inch instrument panel opening.
- Includes all necessary wiring for straightforward connection.
- Provides essential data for efficient electric vehicle operation.
