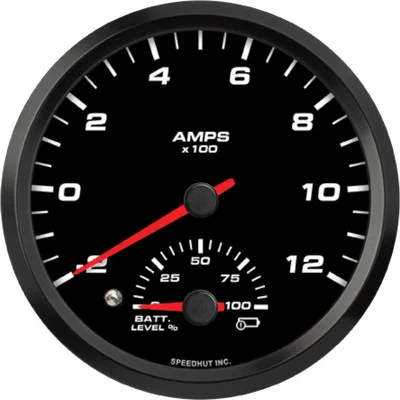

Speedhut 4-1/2″ EV AEM -200-1200 Amp/0-100 Batt Level (FAE45-DG10-EV)

Description

Elevate your electric vehicle monitoring capabilities with the Speedhut 4-1/2″ EV AEM -200-1200 Amp/0-100 Batt Level (FAE45-DG10-EV). This sophisticated instrument provides real-time insights into two critical aspects of your EV’s operation: power dynamics and battery thermal conditions. Designed for seamless integration with your vehicle’s CAN-bus system, this dual gauge delivers accurate and up-to-the-second data, allowing you to optimize efficiency and ensure the longevity of your battery. The inclusion of a built-in warning light enhances safety by alerting you to potential issues with power consumption or battery temperature.

KEY FEATURES AND BENEFITS:

• Dual Functionality: Combines power monitoring (-50 to 300 kW) and battery temperature readings (0 to 50°C) in a single, space-saving 4-1/2″ unit.
• CAN-Bus Integration: Connects directly to your EV’s CAN (Controller Area Network) bus at a 500K baud rate for precise and immediate data acquisition.
• Real-time Data: Provides continuous and accurate readings of power consumption and regeneration, as well as the battery pack’s temperature.
• Enhanced Safety: Features an integrated warning light that can be configured to alert you when power or temperature levels exceed safe or optimal ranges.
• Metric Measurements: Displays temperature readings in Celsius, a widely used standard for scientific and automotive applications.
• Straightforward Installation: Designed for relatively easy installation, especially for vehicles equipped with a compatible CAN-bus system. All necessary harnesses are included.
• Optimized Efficiency: By closely monitoring power usage, drivers can adapt their driving habits to maximize the range and efficiency of their electric vehicle.
• Battery Health Monitoring: Tracking battery temperature is crucial for maintaining optimal performance and extending the lifespan of your EV’s battery pack by ensuring it operates within its recommended thermal limits.

SPECIFICATIONS:

• Gauge Type: Dual
• Signal Type: CAN-Bus (500K baud rate)
• Power Range: -50 to 300 kW
• Temperature Range: 0 to 50°C
• Size: 4 1/2 inch (diameter)
• Hole Size: 4.230 inches (108mm)
• Measurement System: Metric
• Included:
  • EV CAN Jumper Harness
  • 3 ft Power & Lighting Harness
  • EV CAN Harness

HOW TO USE:

1. Mount the Gauge: Securely install the 4-1/2″ dual gauge into a 4.230″ (108mm) diameter opening in your vehicle’s dashboard or instrument panel.
2. Connect the Power Harness: Attach the 3 ft Power & Lighting Harness to the gauge’s power input. Connect the red wire to a 12V power source, the black wire to ground, and the appropriate wire for illumination (if desired) to your vehicle’s lighting circuit.
3. Connect the CAN-Bus Harness: Connect the provided EV CAN Harness to the gauge’s CAN-bus input.
4. Connect to the Vehicle’s CAN Bus: Utilize the EV CAN Jumper Harness to interface the EV CAN Harness with your electric vehicle’s CAN-bus system. Ensure you identify the correct CAN-bus wires in your vehicle (typically a twisted pair) and connect them to the corresponding wires on the jumper harness. Consult your vehicle’s service manual for CAN-bus location and wiring details.
5. Secure Wiring: Ensure all wiring connections are secure and properly insulated to prevent shorts or loose connections.
6. Initial Power-Up: Turn on your vehicle’s ignition. The gauge should power up and begin displaying real-time data for power and battery temperature.
7. Warning Light Configuration (if applicable): Some models may allow you to configure the warning light to activate at specific power or temperature thresholds. Refer to the gauge’s specific instructions for programming details.

BENEFITS OF USING THE SPEEDHUT 4-1/2″ EV AEM -200-1200 AMP/0-100 BATT LEVEL (FAE45-DG10-EV):

• Integrates clear, immediate displays of power consumption and regeneration for improved driving awareness.
• Helps optimize driving habits to enhance electric vehicle range and efficiency.
• Allows real-time battery temperature monitoring to maintain optimal performance and extend battery life.
• Increases safety with a configurable warning light for abnormal power or thermal conditions.
• Delivers accurate, responsive data through CAN-bus integration, ensuring precise performance monitoring.

FEATURES:

• Simultaneously displays real-time power usage and battery thermal status.
• Communicates directly with the vehicle’s data network for precise readings.
• Alerts the driver to abnormal operating conditions via an integrated indicator.
• Designed to fit a standard 4-1/2 inch instrument panel opening.
• Utilizes the metric system for temperature readings.
• Includes all necessary wiring components for connection to the EV’s systems.
• Provides valuable data for improving driving efficiency and extending battery life.
• Offers a clean and integrated look within the vehicle’s interior.
