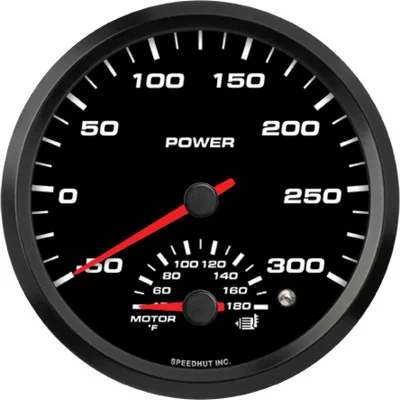

Speedhut 4-1/2″ EV -50-300 Power/40-180F Motor Temp (FAE45-DG6-EV)

Description

The Speedhut 4-1/2″ EV -50-300 Power/40-180F Motor Temp (FAE45-DG6-EV) provides essential real-time monitoring of your electric vehicle’s performance and thermal status. This comprehensive gauge displays both power dynamics and motor temperature in a single, clear 4 1/2-inch unit. Designed for seamless integration with your EV’s CAN-Bus system (operating at a 500K baud rate), it offers accurate and immediate feedback, allowing you to optimize power consumption and ensure the longevity of your motor. The inclusion of a built-in warning light enhances safety by providing a visual alert for potential motor overheating. This gauge is a vital tool for any EV owner seeking detailed insights into their vehicle’s operation.

KEY FEATURES AND BENEFITS:

• Dual Monitoring: Simultaneously tracks power output and regeneration (-50 to 300 kW) alongside motor temperature (40 to 180 degrees Fahrenheit), providing a complete overview of critical EV parameters.
• CAN-Bus Integration: Effortlessly connects to your vehicle’s CAN-Bus system (500K baud rate), enabling direct data acquisition and potentially simplifying the installation process.
• Enhanced Safety: Features an integrated warning light that can alert you to potentially high motor temperatures, allowing for timely intervention.
• Clear Display: The 4 1/2-inch gauge offers a large and easily readable display for instant data interpretation while driving.
• Simplified Installation: Comes with all necessary harnesses, including the EV CAN Jumper Harness, 3 ft Power & Lighting Harness, and EV CAN Harness, facilitating a straightforward setup.

SPECIFICATIONS:

• Gauge Type: Dual Gauge
• Signal Type: CAN-Bus (500K baud rate)
• Power Range: -50 to 300 kW
• Motor Temperature Range: 40 to 180 degrees Fahrenheit
• Size: 4 1/2 inch
• Mounting Hole Size: 4.230 inches (108mm)
• Units: Standard (Fahrenheit for temperature)
• Included: EV CAN Jumper Harness, 3 ft Power & Lighting Harness, EV CAN Harness

HOW TO USE:

• Connect the EV CAN Harness: Plug the designated connector of the EV CAN Harness into the appropriate port on your vehicle’s CAN-Bus system. Refer to your vehicle’s service manual for the exact location.
• Connect the EV CAN Jumper Harness: Use the EV CAN Jumper Harness to establish a connection between the gauge and the EV CAN Harness.
• Connect the Power & Lighting Harness: Attach the 3 ft Power & Lighting Harness to the gauge’s power and lighting terminals. Connect the other end to a suitable power source and lighting circuit in your vehicle. Ensure correct polarity.
• Mount the Gauge: Insert the 4 1/2-inch gauge into a 4.230-inch (108mm) diameter hole in your dashboard or desired mounting location. Secure it using the integrated mounting mechanism.
• Verify Functionality: Once all connections are made, turn on your vehicle’s ignition. The gauge should power on and display the power and motor temperature readings. The warning light should remain off under normal operating conditions.

BENEFITS OF USING THE SPEEDHUT 4-1/2″ EV -50-300 POWER/40-180F MOTOR TEMP (FAE45-DG6-EV):

• Provides a comprehensive understanding of your EV’s power consumption and regeneration, aiding in optimizing driving efficiency and range management.
• Offers crucial insight into your electric motor’s thermal performance, helping to prevent overheating and potential damage, thus contributing to the longevity of your vehicle’s powertrain.
• The integrated warning light adds an extra layer of safety by immediately alerting you to elevated motor temperatures, allowing you to take necessary precautions.
• The direct CAN-Bus integration streamlines the installation process and can offer more accurate data compared to aftermarket sensors.
• Having both critical parameters displayed on a single, high-quality gauge declutters your dashboard and provides essential information at a glance, enhancing your driving experience.

FEATURES:

• Simultaneous display of power output/regeneration and motor temperature.
• Direct communication with the vehicle’s computer network via CAN-Bus protocol.
• Visual alert system for high motor temperature conditions.
• Industry-standard 4 1/2-inch form factor for versatile mounting options.
• Specifically engineered for electric vehicle applications.
• Includes all necessary wiring for immediate installation.
• Provides real-time data for informed driving decisions.
• Contributes to proactive maintenance by monitoring critical parameters.
