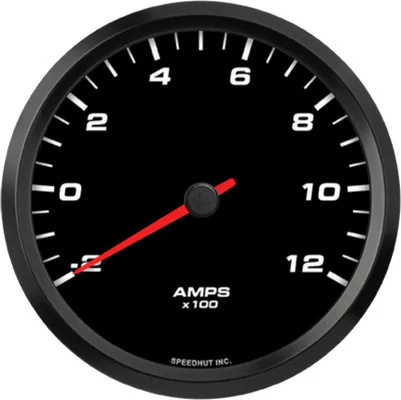

Speedhut 4-1/2″ EV -200 to 1200 Amp Gauge (FAE45-AM1-EV)

Description

The Speedhut 4-1/2″ EV -200 to 1200 Amp Gauge (FAE45-AM1-EV) is a vital instrument designed for precise monitoring of the electrical current within your electric vehicle’s powertrain. Engineered for accuracy and seamless integration, this gauge provides real-time readings, allowing you to effectively assess power consumption and diagnose the performance of your EV’s electrical system. Utilizing advanced CAN-Bus communication, it offers a sophisticated approach to tracking the flow of energy in your vehicle.

KEY FEATURES AND BENEFITS:

• Precise Current Monitoring: Provides accurate readings of electrical current ranging from -200 to 1200 amps, crucial for understanding power usage during both charging and discharging.
• CAN-Bus Integration: Operates on a 500K baud rate CAN-Bus system, ensuring seamless communication with your EV’s existing network for reliable data acquisition.
• Real-time Data: Delivers immediate feedback on the current flow, enabling you to monitor performance and identify potential issues promptly.
• Diagnostic Capability: Facilitates the assessment of your EV’s electrical components, aiding in efficient troubleshooting and maintenance.
• Clear Visual Display: The 4-1/2 inch gauge size offers an easy-to-read interface for monitoring current levels while driving.
• Complete Installation Kit: Ships with all necessary harnesses for power, lighting, and CAN-Bus connectivity, simplifying the installation process.

SPECIFICATIONS:

• Gauge Type: Amp
• Signal Type: CAN-Bus (500K baud rate)
• Range: -200 to 1200 amps
• Size: 4 1/2 inch
• Hole Size: 4.230 inches (108mm)
• Ships With: 3 ft Power & Lighting Harness, EV CAN Harness, EV CAN Jumper Harness

HOW TO USE:

1. Preparation: Ensure your electric vehicle is turned off and the electrical system is safely disconnected.
2. Mounting: Install the 4-1/2″ Speedhut EV Amp Gauge into a 4.230-inch (108mm) diameter opening in your desired location. Secure the gauge according to the manufacturer’s instructions.
3. Wiring – Power & Lighting: Connect the 3 ft Power & Lighting Harness to a suitable power source and ground in your vehicle, following the wiring diagram provided. This harness will power the gauge and its backlighting.
4. Wiring – CAN-Bus: Connect the EV CAN Harness to your vehicle’s CAN-Bus network. Refer to your EV’s service manual for the location and wiring specifications of the CAN-Bus.
5. CAN-Bus Jumper: Use the EV CAN Jumper Harness as needed to facilitate the connection to the CAN-Bus network, depending on your vehicle’s configuration.
6. System Check: Once all connections are secure, carefully reconnect your vehicle’s electrical system and turn on the ignition. Observe the gauge to ensure it is receiving data and displaying current readings.
7. Monitoring: The gauge will now display real-time amperage readings as your EV operates, allowing you to monitor charging, discharging, and overall power consumption.

BENEFITS OF USING THE SPEEDHUT 4-1/2″ EV -200 TO 1200 AMP GAUGE (FAE45-AM1-EV):

• Utilizing the Speedhut 4-1/2″ EV Amp Gauge provides several key advantages for electric vehicle owners and enthusiasts.
• It offers a direct and immediate understanding of the vehicle’s electrical activity, enabling more informed driving habits focused on energy efficiency.
• By displaying real-time current flow, it allows for the early detection of any anomalies or inefficiencies in the electrical system, potentially preventing more significant issues down the line.
• For those interested in the technical performance of their EV, this gauge provides valuable data for assessing power delivery during acceleration and energy recapture during regenerative braking.
• The seamless integration with the vehicle’s CAN-Bus system ensures accurate and reliable readings, making it a superior alternative to less integrated monitoring solutions.
• Ultimately, this gauge empowers you with the knowledge to optimize your EV’s performance and maintain its electrical health.

FEATURES:

• High Accuracy Sensor: Engineered for precise measurement of both positive and negative current values.
• Direct CAN-Bus Interface: Communicates directly with the vehicle’s data network for streamlined data acquisition.
• Illuminated Display: Enhances visibility in all lighting conditions, ensuring readability day and night.
• Robust Construction: Built to withstand the demanding environment of automotive applications.
• Plug-and-Play Harnesses: Included harnesses simplify the wiring process, saving time and effort during installation.
• Compact 4-1/2″ Form Factor: Designed to fit seamlessly into various dashboard configurations without occupying excessive space.
