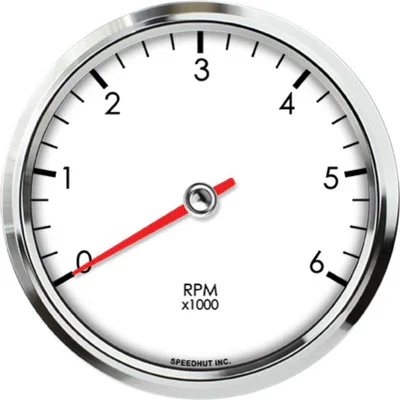

Speedhut 4-1/2″ 6K RPM Dash Mount Tachometer (L45-TC2-LEG)

Description

Speedhut 4-1/2″ 6K RPM Dash Mount Tachometer (L45-TC2-LEG) provides accurate and reliable engine speed readings for vehicles equipped with standard spark plug ignition systems and engines with 1 to 12 cylinders. This analog gauge is designed for easy installation into your vehicle’s dashboard, offering a clear and precise display of your engine’s revolutions per minute up to 6,000 RPM. Included with the tachometer are all the necessary components for a straightforward setup.

KEY FEATURES AND BENEFITS:

• Clearly displays engine speed: Up to 6,000 RPM.
• Dash mount design: Enables direct mounting into your vehicle’s dashboard.
• Engine compatibility: Supports 1 to 12 cylinder configurations.
• Ignition compatibility: Works with standard spark plug ignition systems.
• Complete mounting kit: Includes all required hardware for installation.
• Included wiring harnesses: Comes with dedicated power and tachometer signal harnesses.

SPECIFICATIONS:

• Units: Standard
• Gauge Type: Tachometer
• Tachometer Signal Type: Standard spark plug ignition systems
• Compatibility: 1-12 cylinder
• Range: 6K RPM
• Size: 4 1/2 inch
• Hole Size: 4.250 inches (108mm)
• Internal Shift Light: No
• Mount Style: Dash Mount
• Gauge Mounting Ring: Included
• Ships With:
  • 3 ft Power & Lighting Harness – for LED Lit Gauges and Clocks
  • 8 ft Tachometer Harness – for LED Lit Gauges (1 Wire, 2 Pin Connector)

HOW TO USE:

1. Preparation: Identify a suitable location on your dashboard for mounting the 4 1/2-inch tachometer. Ensure there is enough clearance behind the dashboard for the gauge and wiring.
2. Drilling (if necessary): If there isn’t an existing 4.250-inch (108mm) hole, carefully drill one at the chosen location.
3. Mounting the Gauge: Insert the tachometer into the drilled hole from the front of the dashboard. Secure it using the included gauge mounting ring from the back, tightening it until the gauge is firmly in place.
4. Wiring – Power and Lighting: Connect the 3 ft Power & Lighting Harness. Typically, this involves connecting to a 12V power source (preferably ignition-switched), a ground, and potentially a lighting circuit if applicable. Refer to your vehicle’s wiring diagram.
5. Wiring – Tachometer Signal: Connect the 8 ft Tachometer Harness to the tachometer. The single wire with the 2-pin connector should connect to the negative (-) side of the ignition coil or to a tachometer signal wire from your ECU. Refer to your service manual for the correct connection point.
6. Testing: Start the engine and observe the tachometer to ensure it is receiving a signal and displaying accurate RPM as the engine speed varies.
7. Final Adjustments: Neatly route and secure all wiring to prevent damage or interference.

BENEFITS OF USING THE SPEEDHUT 4-1/2″ 6K RPM DASH MOUNT TACHOMETER (L45-TC2-LEG):

• Provides real-time RPM data for optimal shifting and engine monitoring.
• Prevents over-revving, helping to avoid costly engine damage.
• Useful for both manual and automatic transmissions by offering insight into engine performance.
• Assists with diagnosing engine issues by displaying actual engine speed.
• Supports efficiency and engine longevity through accurate monitoring.

FEATURES:

• Analog RPM gauge with up to 6,000 RPM range.
• Designed for dash-mounted installation with secure gauge ring.
• Compatible with 1 to 12 cylinder engines using spark plug ignition systems.
• Includes all necessary installation hardware.
• Dedicated power and illumination wiring harness included.
• Special tachometer signal harness included for easy setup.
