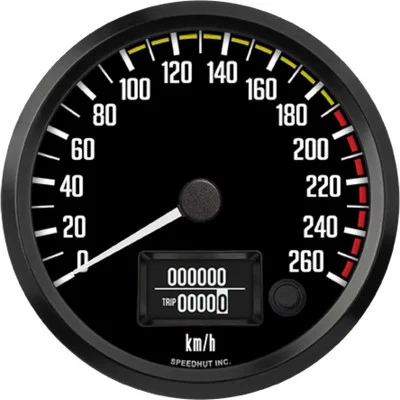

Speedhut 4-1/2″ 260 km/h Metric GPS Speedometer (R45-S4-DATZ)

Description

The Speedhut 4-1/2″ 260 km/h Metric GPS Speedometer (R45-S4-DATZ) provides precise vehicle speed readings by utilizing global positioning system technology. This eliminates the need for traditional speed sensors and complex wiring. Installation is straightforward, requiring only a 12V power source and the included waterproof GPS antenna. Forget about the complexities of calibrating for tire sizes or gear ratios – this speedometer sets up effortlessly. Designed for worldwide operation with free GPS data reception, it offers a reliable and accurate solution for displaying your speed in kilometers per hour. Its robust construction and clear LCD screen make it a valuable instrument for any driver seeking accurate and hassle-free speed indication.

KEY FEATURES AND BENEFITS:

• Displays accurate vehicle speed using GPS technology.
• Simple installation requiring only 12V power and the included GPS antenna.
• No calibration necessary for tire size or gear ratios.
• Operates globally using free GPS signals; receives data only.
• Features an internal microprocessor for precise speed readings.
• Equipped with a high-torque stepper motor for accurate pointer movement.
• Easy mounting with a slim case and spin-lock ring.
• Enhanced aesthetics and durability with a solid billet aluminum bezel.
• Weather-resistant construction for reliable performance in various conditions.
• Backed by a lifetime warranty on gauge electronics.
• Proudly made in America, ensuring high-quality craftsmanship.

SPECIFICATIONS:

• Gauge Type: Speedometer
• Speedometer Signal Type: GPS
• Range: 0-260 km/h
• Size: 4 1/2 inch (4.5″)
• Hole Size: 4.250 inches (108mm)
• Standard or Metric: Metric (km/h)
• Gauge Mounting Ring: Included
• Included:
  • 3 ft Power & Lighting Harness – for LED Lit Gauges and Clocks
  • GPS Antenna with 9.8 ft long cable and male SMA connector

HOW TO USE:

• Mount the Gauge: Secure the 4-1/2″ Speedometer in the desired location using the included slim case and spin-lock ring. Ensure the mounting area accommodates the 4.250″ (108mm) hole size.
• Connect Power: Connect the red wire from the 3 ft Power & Lighting Harness to a 12V positive power source in your vehicle. Connect the black wire to a suitable ground.
• Connect Lighting (Optional): If desired, connect the additional wires in the harness to your vehicle’s lighting system to illuminate the gauge when your lights are on. Refer to your vehicle’s wiring diagram for appropriate connections.
• Mount the GPS Antenna: Choose a location for the GPS antenna that has a clear view of the sky. The antenna is waterproof, allowing for flexible mounting options outside or inside the vehicle (ensure no significant obstructions).
• Connect the Antenna: Connect the male SMA connector of the GPS antenna cable to the corresponding connector on the back of the speedometer.
• Start Your Vehicle: Once all connections are secure, start your vehicle. The speedometer will acquire a GPS signal.
• Observe Readings: Once a GPS signal is acquired, the speedometer will begin to display your vehicle’s speed accurately in kilometers per hour.

BENEFITS OF USING THE SPEEDHUT 4-1/2″ 260 KM/H METRIC GPS SPEEDOMETER (R45-S4-DATZ):

• Experience highly accurate speed readings without the complexities of traditional speed sensors.
• The straightforward installation saves time and effort, eliminating the need for intricate wiring or calibration.
• Enjoy reliable performance globally thanks to free GPS technology.
• The robust construction ensures longevity, and the sleek design enhances your vehicle’s interior.
• Backed by a lifetime warranty on electronics, this speedometer offers peace of mind and dependable operation for any driving enthusiast.

FEATURES:

• Utilizes satellite-based positioning for precise velocity measurement.
• Simple two-wire (power and ground) connection for basic operation.
• Eliminates the necessity for mechanical or magnetic speed sensors.
• Suitable for vehicles where traditional speed signal sources are unavailable or difficult to access.
• Provides consistent accuracy regardless of tire wear or gear changes.
• Features a clear and easy-to-read pointer display.
• Designed with a corrosion-resistant billet aluminum bezel.
• Built to withstand various environmental conditions.
• Supported by a comprehensive warranty on electronic components.
