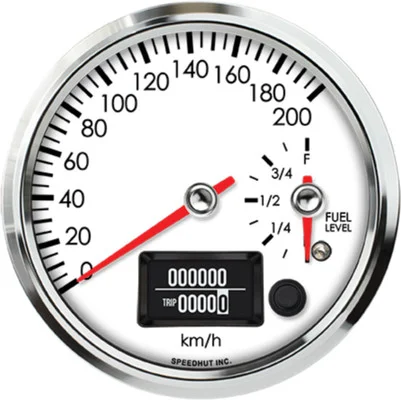

Speedhut 4-1/2″ 200km/h GPS Speedometer/Fuel Level Gauge (R45-DS5-LEG)

Description

Experience enhanced driving awareness with the Speedhut 4-1/2″ 200km/h GPS Speedometer/Fuel Level Gauge (R45-DS5-LEG). This integrated 4 1/2 inch (108mm mounting hole) metric gauge provides accurate speed readings through advanced GPS technology, eliminating the complexities of traditional speed sensors. Alongside its precise speedometer (0-200 km/h range), it features a reliable fuel level gauge (E-F indication), offering a comprehensive overview of your vehicle’s essential information in one convenient unit. Installation is designed for simplicity, requiring only a 12V power connection and the included waterproof GPS antenna. Enjoy seamless operation globally thanks to free GPS technology, which receives data without any transmission. Built with quality in mind, this gauge features a robust design and comes with a lifetime warranty, ensuring long-term dependability.

KEY FEATURES AND BENEFITS:

• Combines a GPS speedometer (0-200 km/h) and a fuel level gauge (E-F) in a single 4 1/2 inch unit.
• Utilizes GPS for precise, real-time speed readings, eliminating the need for calibration.
• Offers straightforward installation with a simple 12V power connection and included GPS antenna.
• Provides worldwide operation using free GPS technology without any subscription fees.
• Features an internal microprocessor for accurate readings and a high-torque stepper motor for precise pointer movement.
• Designed with a slim case and a convenient spin-lock ring for easy mounting.
• Constructed with a solid billet aluminum bezel for enhanced durability and aesthetics.
• Boasts a weather-resistant design for reliable performance in various conditions.
• Backed by a lifetime warranty, offering peace of mind.
• Proudly made in America, ensuring high standards of quality and craftsmanship.

SPECIFICATIONS:

• Gauge Type: Dual GPS Speedometer and Fuel Level
• Speedometer Range: 0-200 km/h (Metric)
• Fuel Level Range: Empty (E) – Full (F)
• Size: 4 1/2 inch
• Mounting Hole Size: 4.250 inches (108mm)
• Standard or Metric: Metric
• Included: Wiring Harness (2-Wire Cable), 3 ft Power & Lighting Harness, GPS Antenna with 9.8 ft cable and male SMA connector.

HOW TO USE:

1. Mount the Gauge: Secure the 4 1/2 inch gauge in the desired location using the spin-lock ring. Ensure the mounting hole is 4.250 inches (108mm).
2. Connect Power: Attach the 2-wire power harness to a 12V DC power source and a suitable ground in your vehicle.
3. Install GPS Antenna: Mount the provided waterproof GPS antenna in a location with a clear line of sight to the sky.
4. Connect Antenna: Connect the GPS antenna to the gauge using the 9.8 ft cable with the male SMA connector.
5. Connect Lighting (Optional): If desired, connect the 3 ft power & lighting harness to your vehicle’s lighting system for illumination of the gauge.
6. Fuel Level Connection: Connect the fuel level gauge wires to your vehicle’s existing fuel level sending unit. Refer to your vehicle’s wiring diagram for the correct connections.
7. Operation: Once all connections are made, the gauge will begin displaying speed readings as soon as a GPS signal is acquired and will show the current fuel level.

BENEFITS OF USING THE SPEEDHUT 4-1/2″ 200KM/H GPS SPEEDOMETER/FUEL LEVEL GAUGE (R45-DS5-LEG):

• Experience the advantage of accurate, real-time speed information without the complexities of traditional sensor installation or calibration, thanks to integrated GPS technology.
• The combination of speed and fuel level monitoring in a single, high-quality gauge saves space and simplifies your dashboard.
• Enjoy reliable performance in any driving condition with the weather-resistant design and the assurance of a lifetime warranty.
• The straightforward installation process gets you up and running quickly.
• The global operation of the GPS ensures accuracy wherever your travels take you.

FEATURES:

• Integrated GPS receiver: for immediate and precise speed measurement.
• Simultaneous display: of speed (in kilometers per hour) and fuel tank level.
• Effortless setup: requiring only power and GPS antenna connection.
• Global compatibility: through free GPS satellite network.
• Internal processing: for consistently accurate data readings.
• Robust pointer movement: for clear visibility during vehicle operation.
• Space-saving design: combining two essential functions in one unit.
• Durable construction: to withstand various environmental factors.
• Long-lasting reliability: backed by a comprehensive lifetime warranty.
• Quality assurance: from being manufactured in the USA.
