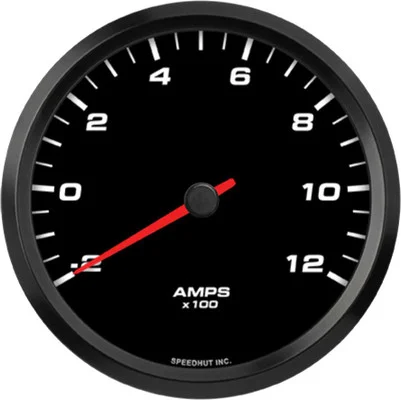

Speedhut 4-1/2″ -200 to 1200 EV Amp Gauge (FOR45-AM1-EV)

Description

The Speedhut 4-1/2″ -200 to 1200 EV Amp Gauge (FOR45-AM1-EV) is an essential instrument designed for precise monitoring of your electric vehicle’s electrical current. Engineered for accuracy and seamless integration, this gauge provides real-time readings of the amps flowing through your EV’s powertrain. Utilizing the Controller Area Network (CAN-Bus) communication protocol at a 500K baud rate, it offers a sophisticated method for assessing and optimizing power consumption. This gauge serves as a valuable tool for understanding your EV’s performance, aiding in diagnostics, and ensuring the efficient operation of its electrical components. The 4-1/2 inch display offers excellent visibility of the current readings, allowing drivers to stay informed about their vehicle’s power dynamics.

KEY FEATURES AND BENEFITS:

• Precise Current Monitoring: Provides accurate, real-time readings of electrical current ranging from -200 to 1200 amps, crucial for understanding power flow during various driving conditions, including acceleration and regenerative braking.
• CAN-Bus Integration: Operates on the CAN-Bus communication protocol at a 500K baud rate, ensuring seamless and reliable data transfer with the vehicle’s electronic systems. This advanced integration allows for more accurate and potentially richer data compared to traditional analog gauges.
• Enhanced Performance Awareness: Enables drivers to monitor power consumption, contributing to a better understanding of the vehicle’s performance characteristics under different loads and driving styles.
• Diagnostic Capabilities: Facilitates the assessment of the EV’s electrical system, potentially aiding in the early detection of anomalies or inefficiencies in power delivery or regeneration.
• Optimized Efficiency: By providing clear insights into current draw, the gauge can help drivers adapt their driving habits to maximize energy efficiency and extend the vehicle’s range.
• Clear Visual Display: The 4-1/2 inch gauge offers a large and easily readable display for monitoring current levels at a glance.
• Complete Wiring Solution: Ships with all necessary harnesses, including power and lighting, EV CAN, and EV CAN jumper harnesses, ensuring a streamlined installation process.

SPECIFICATIONS:

• Gauge Type: Amp
• Signal Type: CAN-Bus (500K baud rate)
• Range: -200 to 1200 amps
• Size: 4 1/2 inch
• Hole Size: 4.230 inches (108mm)
• Included:
• 3 ft Power & Lighting Harness
• EV CAN Harness
• EV CAN Jumper Harness

HOW TO USE:

1. Preparation: Ensure your vehicle’s electrical system is turned off and follow all safety precautions for working with automotive electronics.
2. Mounting the Gauge: Locate a suitable position on your dashboard or instrument panel and create a 4.230-inch (108mm) diameter hole for mounting the gauge. Secure the gauge in place.
3. Connecting the Power and Lighting Harness: Connect the 3 ft Power & Lighting Harness to the gauge. Typically, this harness will have wires for power (12V), ground, and illumination. Refer to your vehicle’s wiring diagram for appropriate connection points.
4. Connecting the EV CAN Harness: Locate the vehicle’s CAN-Bus network. Connect the provided EV CAN Harness to the gauge and then to the designated CAN-Bus connection points in your vehicle. The specific location and wiring of the CAN-Bus can vary significantly between EV models; consult your vehicle’s service manual for precise instructions.
5. Using the EV CAN Jumper Harness (if needed): The EV CAN Jumper Harness may be used to facilitate connection to the CAN-Bus or to connect other CAN-Bus devices. Refer to the Speedhut documentation or your vehicle’s specific needs for its application.
6. Final Checks: Once all connections are made, double-check all wiring for secure and correct connections.
7. Testing: Turn on your vehicle’s electrical system and observe the gauge. It should begin displaying the current amp reading. Verify that the illumination functions correctly.

BENEFITS OF USING THE SPEEDHUT 4-1/2″ -200 TO 1200 EV AMP GAUGE (FOR45-AM1-EV):

• Precise Monitoring: Provides real-time insight into the EV’s electrical current for optimized driving and energy efficiency.
• CAN-Bus Compatibility: Direct integration with the vehicle’s CAN-bus system ensures accurate data acquisition for enhanced diagnostics and performance tracking.
• Improved Efficiency: Supports drivers in adapting driving habits to extend battery range and performance.
• Clear Readability: The large 4-1/2 inch display provides easy visibility under various lighting conditions.
• Simplified Installation: Includes all required wiring harnesses to streamline installation without the need for extra components.

FEATURES:

• Real-time Ampere Display: Continuously shows the instantaneous electrical current flowing in or out of the vehicle’s battery system.
• Negative Current Indication: Clearly displays negative amp readings, indicating energy regeneration during braking or deceleration.
• High Measurement Capacity: Accurately measures currents up to 1200 amps for discharge and down to -200 amps for charge.
• Direct CAN-Bus Data Acquisition: Communicates directly with the vehicle’s computer system via the CAN-Bus protocol for precise and synchronized readings.
• LED Backlighting Compatibility: Designed to work with the included power and lighting harness for clear visibility in all lighting conditions.
• Standard Gauge Size: The 4-1/2 inch diameter fits common aftermarket gauge mounting solutions.
• Plug-and-Play Harnesses: Includes specific EV CAN harnesses to facilitate a more straightforward connection to compatible vehicle systems.
