Speedhut 4-1/2″ 120 mph GPS Speedometer/Fuel Level Gauge (R45-DS1-REV)

Description

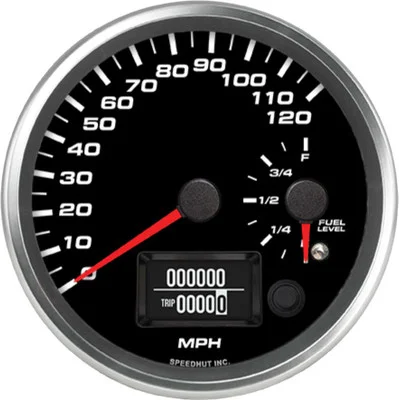

Speedhut 4-1/2″ 120 MPH GPS Speedometer/Fuel Level Gauge (R45-DS1-REV) offers a unique combination of a GPS-driven speedometer and a fuel level gauge in a single, easy-to-install unit. This gauge ensures precise speed readings up to 120 MPH through global positioning technology, eliminating the need for traditional speed sensors. The fuel level display provides essential data, presenting your vehicle’s fuel status on a standard Empty (E) to Full (F) scale. Designed for reliable operation and simplicity, the Speedhut 4-1/2″ 120 MPH GPS Speedometer/Fuel Level Gauge is an ideal choice for a seamless, efficient driving experience.

KEY FEATURES AND BENEFITS:

• GPS Speedometer: Provides precise speed readings from 0 to 120 MPH using global positioning system technology. Eliminates the need for traditional mechanical or electronic speed sensors.
• Effortless Installation: Requires only a 12V power connection and the included waterproof GPS antenna. No complex wiring to vehicle speed sensors is necessary.
• No Calibration Required: The GPS speedometer automatically calibrates, eliminating the need to input tire sizes or gear ratios. Offers plug-and-play convenience.
• Worldwide Operation: Functions globally with free GPS signals. The system only receives data, ensuring operational simplicity.
• Integrated Fuel Level Gauge: Displays fuel level on a standard Empty (E) to Full (F) scale, providing crucial fuel status information at a glance. Compatible with most fuel level senders with a resistance range under 300 ohms (sender not included).
• Accurate Readings: Features an internal microprocessor for precise and dependable speed and fuel level readings.

SPECIFICATIONS:

• Gauge Type: Dual GPS Speedometer and Fuel Level
• Speedometer Range: 0 – 120 MPH
• Fuel Level Range: Empty (E) – Full (F)
• Size: 4-1/2 inch (114.3mm) outer diameter
• Hole Size: 4.250 inches (108mm)
• Power Requirement: 12V DC
• GPS Update Rate: Rapid (around 4-5 or 10 Hz per second, based on general Speedhut GPS gauge information)
• Included:
  • GPS Antenna with 9.8 ft long cable and male SMA connector
  • 3 ft Power & Lighting Harness – for LED Lit Gauges and Clocks
  • Wiring Harness (2-Wire Cable)

HOW TO USE:

1. Mount the Gauge: Locate a suitable 4.250″ (108mm) diameter opening in your vehicle’s dashboard. Insert the gauge into the opening and secure it using the spin-lock ring from the back.
2. Connect Power: Connect the red wire from the 3 ft Power & Lighting Harness to a 12V positive power source that is switched with the ignition. Connect the black wire to a reliable ground. If your gauge has lighting features (LED), other wires on this harness may need connection according to the specific Speedhut wiring diagram (not fully detailed in the provided information).
3. Connect Fuel Level Sender: Connect the two wires from the separate Wiring Harness (2-Wire Cable) to your vehicle’s fuel level sender unit. Ensure correct polarity based on your sender’s specifications (this information is typically found in your vehicle’s service manual or the sender’s documentation).
4. Mount the GPS Antenna: Choose a location on your vehicle with a clear view of the sky (e.g., roof, dashboard). Clean the mounting surface and securely attach the GPS antenna. Route the antenna cable to the back of the gauge and connect the male SMA connector.
5. Initial Operation: Once all connections are made, turn on your vehicle’s ignition. The speedometer should begin acquiring a GPS signal and display your speed. The fuel level gauge should indicate the current fuel level based on your fuel sender.

BENEFITS OF USING THE SPEEDHUT 4-1/2″ 120 MPH GPS SPEEDOMETER/FUEL LEVEL GAUGE (R45-DS1-REV):

• Accurate Speed Measurement: Enjoy precise speed readings without the complexities of mechanical linkages or wheel sensor calibration, thanks to reliable GPS technology.
• Simplified Installation: Save time and effort with an easy-to-install system that requires minimal wiring compared to traditional speedometers.
• Universal Compatibility (Speed): The GPS speedometer works in any vehicle globally without the need for vehicle-specific configurations.
• Essential Fuel Monitoring: Keep a constant eye on your fuel level, preventing unexpected fuel shortages.
• Clean and Integrated Look: Combine two critical instruments into a single, stylish 4-1/2″ gauge, decluttering your dashboard.
• Reliable Performance: Benefit from the accuracy of an internal microprocessor and the smooth operation of a high-quality stepper motor.
• Long-Term Assurance: The lifetime warranty on the electronic components provides confidence in the gauge’s durability and longevity.

FEATURES:

• Smooth Operation: Utilizes a high torque stepper motor for accurate and smooth pointer movement, even in demanding driving conditions.
• Easy Mounting: The slim case design and convenient spin-lock ring facilitate a straightforward and secure installation in a 4.250″ (108mm) diameter dash opening.
• Robust Construction: Features a solid billet aluminum bezel, enhancing the gauge’s durability and providing a premium aesthetic.
• Weather Resistance: Designed to withstand various environmental conditions, ensuring long-lasting performance.
• Peace of Mind: Backed by a lifetime warranty on the electronic circuit board, offering assurance in the product’s quality and dependability.
• American Craftsmanship: Proudly manufactured in the USA, reflecting high standards of quality and attention to detail.
