Speedhut 3-3/8″ Street XL Water Temp/Volt/OilPSI/Fuel Lev (R3-QG2-SXL)

Description

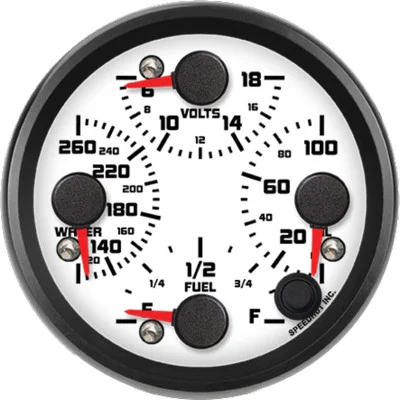

The Speedhut 3-3/8″ Street XL Water Temp/Volt/OilPSI/Fuel Lev (R3-QG2-SXL) offers a comprehensive and efficient solution for monitoring your vehicle’s most critical systems. This single, high-quality gauge integrates four essential readings: water temperature, voltage, oil pressure, and fuel level, providing you with a clear and concise overview of your vehicle’s health and status. Designed for accuracy and ease of use, this gauge is an ideal upgrade for any driver seeking comprehensive instrumentation without sacrificing dashboard space.

KEY FEATURES AND BENEFITS:

• Four-in-One Functionality: Combines water temperature, voltage, oil pressure, and fuel level readings into a single, easy-to-read 3-3/8″ gauge.
• Comprehensive Monitoring: Provides real-time data on essential vehicle parameters, allowing you to identify potential issues early.
• Included Sensors: Comes equipped with a Speedhut temperature sensor for accurate water temperature readings and a pressure sensor (0-100 psi range) for precise oil pressure monitoring.
• Wiring Harnesses Included: Ships with all necessary wiring harnesses for power, lighting, and sensor connections, simplifying the installation process.
• Warning Light: Features a built-in warning light to alert you to critical conditions, enhancing safety and preventing potential damage.
• Standard Units: Displays readings in standard units (Fahrenheit and PSI) for ease of understanding.
• Space-Saving Design: Consolidating four gauges into one frees up valuable dashboard space and provides a cleaner aesthetic.

SPECIFICATIONS:

• Gauge Type: Quad Gauge
• Voltage Range: 6-18 volts
• Water Temperature Range: 120-260 °F
• Fuel Level Range: Empty (E) to Full (F) (Requires fuel level sensor with 300 ohms or less resistance – Not Included)
• Oil Pressure Range: 0-100 psi
• Size: 3 3/8 inch (diameter)
• Hole Size Required: 3.28 inch (83mm)
• Units: Standard
• Warning Light: Yes
• Included with Purchase:
• Speedhut Temperature Sensor
• Pressure Sensor (100 psi)
• 3 ft Power & Lighting Harness (for LED Lit Gauges and Clocks)
• Pressure Gauge Wiring Harness (3-Wire Cable)
• Temperature Gauge Wiring Harness (2-Wire Cable)
• Wiring Harness (2-Wire Cable)

HOW TO USE:

1. Prepare the Mounting Location: Choose a suitable location on your dashboard and drill a 3.28-inch (83mm) diameter hole. Ensure there is enough clearance behind the dashboard for the gauge and wiring.
2. Connect the Power and Lighting Harness: Connect the 3 ft Power & Lighting Harness to a suitable power source (typically 12V switched ignition), ground, and your vehicle’s lighting circuit if you desire the gauge to illuminate with your headlights.
3. Install the Temperature Sensor: Locate the appropriate port on your engine’s cooling system and install the included Speedhut temperature sensor. Connect the Temperature Gauge Wiring Harness to the sensor and then to the gauge.
4. Install the Pressure Sensor: Locate the oil pressure sending unit port on your engine and install the included pressure sensor. Connect the Pressure Gauge Wiring Harness to the sensor and then to the gauge.
5. Connect the Fuel Level Sensor Wire: Connect the Wiring Harness (2-Wire Cable) to the appropriate output wire from your vehicle’s fuel level sensor (ensure it operates at 300 ohms or less). Connect the other end of the harness to the gauge. Note: The fuel level sensor itself is not included and must be sourced separately.
6. Connect the Ground Wire: Ensure the gauge has a good ground connection using one of the provided ground wires.
7. Mount the Gauge: Insert the Speedhut Quad Gauge into the prepared 3.28-inch hole and secure it using the provided mounting hardware.
8. Verify Functionality: Turn on your vehicle’s ignition and check that all four readings (water temperature, voltage, oil pressure, and fuel level) are displaying correctly. Also, test the warning light functionality as described in the product manual (if applicable).

BENEFITS OF USING THE SPEEDHUT 3-3/8″ STREET XL WATER TEMP/VOLT/OILPSI/FUEL LEV (R3-QG2-SXL):

• Enhanced Vehicle Awareness: Provides a constant and clear display of critical engine and system parameters, allowing for proactive maintenance and early detection of potential problems.
• Simplified Monitoring: Eliminates the need to scan multiple individual gauges, allowing you to focus on driving while still having vital information readily available.
• Improved Dashboard Aesthetics: Offers a clean and integrated look compared to multiple individual gauges, enhancing the overall appearance of your dashboard.
• Increased Safety: The integrated warning light can alert you to critical conditions, potentially preventing costly repairs or breakdowns.
• Convenient Installation: Includes essential sensors and wiring harnesses to streamline the installation process.

FEATURES:

• Integrated four-in-one display for water temperature, voltage, oil pressure, and fuel level.
• High-quality sensors for accurate readings.
• Comes with dedicated wiring harnesses for easy installation.
• Visual warning light for critical conditions.
• Displays data in Fahrenheit and PSI.
• Optimal 3-3/8″ diameter for clear visibility and integration.
• Compatible with 6-18V electrical systems.
