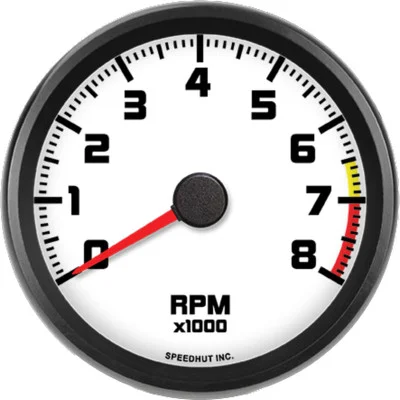

Speedhut 3-3/8″ Street XL Design 8K RPM Tachometer (L3-TC3-SXL)

Description

The Speedhut 3-3/8″ Street XL Design 8K RPM Tachometer (L3-TC3-SXL) is an essential instrument for monitoring your engine’s performance. Designed for accuracy and ease of use, this tachometer provides real-time RPM readings, allowing you to optimize your engine’s capabilities across a range of 1/2 pulse to 6 pulses per revolution. Its robust construction and simple installation make it a valuable tool for achieving peak engine efficiency and responsiveness in various driving conditions.

KEY FEATURES AND BENEFITS:

• Accurate RPM Readings: Provides accurate and immediate engine RPM readings up to 8,000 RPM.
• Broad Engine Compatibility: Compatible with most gasoline engines utilizing standard spark plug ignition systems.
• Multi-Cylinder Support: Works with engines having 1 to 12 cylinders.
• Programmable PPR: Adjustable pulse per revolution from 1/2 to 6, ensuring compatibility with various engine types.
• Signal Compatibility: Designed to function with any engine and tach signal exceeding one volt.
• Easy Installation: Offers straightforward installation with the included mounting ring.
• High Performance Accuracy: Ensures pointer precision even under demanding racing conditions.
• Optimized Engine Performance: Contributes to maximizing your engine’s power and efficiency.

SPECIFICATIONS:

• Gauge Type: Tachometer
• Design: Street XL
• Size: 3 3/8 inch (85mm)
• Hole Size: 3.3 inches (84mm)
• RPM Range: 0 – 8,000 RPM
• Tachometer Signal Type: Standard spark plug ignition systems
• Compatibility: 1-12 cylinder engines
• Pulse per Revolution (PPR): 1/2 to 6
• Included:
  • 3 ft Power & Lighting Harness (for LED Lit Gauges and Clocks)
  • 8 ft Tachometer Harness (for LED Lit Gauges – 1 Wire 2 Pin Connector)
  • Gauge Mounting Ring

HOW TO USE:

1. Prepare the Mounting Location: Ensure you have a 3.3″ (84mm) diameter opening in your dashboard for installation.
2. Connect the Power Harness: Attach the 3 ft Power & Lighting Harness to the designated power and lighting connections in your vehicle’s electrical system.
3. Connect the Tachometer Harness: Connect the 8 ft Tachometer Harness to the tachometer signal output from your engine’s ignition system using the 1-wire, 2-pin connector.
4. Mount the Gauge: Insert the tachometer into the prepared dashboard opening and secure it using the included mounting ring.
5. Verify Functionality: Start your engine and observe the tachometer to ensure it is receiving a signal and displaying the correct RPM readings.

BENEFITS OF USING THE SPEEDHUT 3-3/8″ STREET XL DESIGN 8K RPM TACHOMETER (L3-TC3-SXL):

• Provides precise monitoring of engine revolutions per minute for optimal performance.
• Helps in making informed decisions on gear shifts and throttle control.
• Improves fuel efficiency and power delivery.
• Broad compatibility with multiple engine configurations.
• Easy installation for immediate and reliable performance feedback.

FEATURES:

• Displays engine speed up to a maximum of 8,000 revolutions per minute.
• Designed specifically for the Street XL gauge series.
• Fits a standard 3 3/8 inch (85mm) gauge opening.
• Compatible with standard spark plug ignition systems found in most gasoline engines.
• Adaptable for use with 1 to 12 cylinder engines.
• Offers adjustable pulse readings per engine revolution (1/2 to 6 PPR).
• Requires a tachometer signal input of over one volt.
• Includes a dedicated 3 ft harness for powering and illuminating the gauge.
• Comes with an 8 ft harness specifically for receiving the tachometer signal.
• Secures easily into the dashboard using the provided mounting ring.
