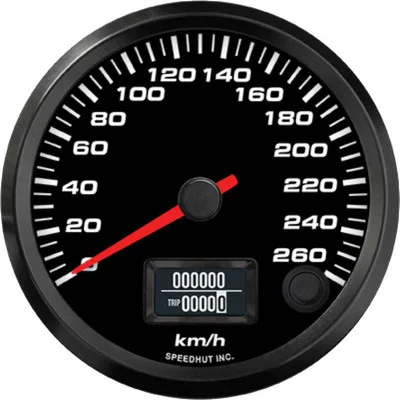

Speedhut 3-3/8″ EV Orion 260 km/h Speedometer Gauge (FOR3-S4-EV)

Description

The Speedhut 3-3/8″ EV Orion 260 km/h Speedometer Gauge (FOR3-S4-EV) is a vital instrument designed to provide precise speed readings for your electric vehicle. Engineered for seamless integration with your EV’s Controller Area Network (CAN-bus) system, this gauge offers a modern and reliable solution for monitoring your vehicle’s speed performance in metric units. Its straightforward installation process and direct data acquisition from the ECU make it a superior alternative to traditional sensor-based speedometers.

KEY FEATURES AND BENEFITS:

• Direct CAN-Bus Integration: Receives speed data directly from your EV’s electronic control unit (ECU) via the CAN-bus (500K baud rate), ensuring accurate and real-time readings.
• No External Sensors Required: Eliminates the complexity and potential failure points associated with traditional speed sensors.
• Precise Speed Indication: Clearly displays your vehicle’s speed up to 260 km/h in metric units.
• Optimal Size: The 3 3/8 inch (85mm) gauge size fits standard instrument panel openings.
• Simple Installation: Designed for easy mounting with a 3.33″ (85mm) hole size and includes necessary wiring harnesses.
• Optional Indicators: Offers the possibility to integrate 12 Volt activated turn signal and high beam indicators (available separately).

SPECIFICATIONS:

• Gauge Type: Speedometer
• Signal Type: CAN-Bus (500K baud rate)
• Range: 260 km/h
• Size: 3 3/8 inch (85mm)
• Hole Size: 3.33 inches (85mm)
• Units: Metric (km/h)
• Optional Indicators: Turn Signals and High Beam (12 Volt Activated)
• Included: 3 ft Power & Lighting Harness – for LED Lit Gauges and Clocks, EV CAN Harness, EV CAN Jumper Harness

HOW TO USE:

• Locate Mounting Position: Identify a suitable 3.33″ (85mm) diameter opening in your vehicle’s instrument panel.
• Connect CAN Harness: Plug the provided EV CAN Harness into the designated CAN-bus port on your EV’s ECU.
• Connect Jumper Harness: Connect the EV CAN Jumper Harness to the EV CAN Harness and then to the back of the Speedhut gauge.
• Connect Power Harness: Connect the 3 ft Power & Lighting Harness to the appropriate power and ground sources in your vehicle, ensuring a 12V connection for optional indicator functionality.
• Mount the Gauge: Insert the Speedhut gauge into the 3.33″ (85mm) hole and secure it using the integrated mounting mechanism.
• Verify Functionality: Turn on your vehicle to ensure the speedometer is receiving data and displaying the speed correctly. Test the optional turn signal and high beam indicator connections if applicable.

BENEFITS OF USING THE SPEEDHUT 3-3/8″ EV ORION 260 KM/H SPEEDOMETER GAUGE (FOR3-S4-EV):

• Provides accurate and reliable speed readings directly from your EV’s CAN-bus system.
• Simplifies installation by eliminating the need for external speed sensors.
• Offers a clean and integrated look in your electric vehicle’s dashboard.
• Ensures compatibility with various EV control units utilizing a 500K baud rate CAN-bus.
• Offers the option to integrate essential indicator lights for added functionality and safety.

FEATURES:

• Designed specifically for electric vehicle CAN-bus systems.
• Operates at a standard 500K baud rate.
• Displays speed in easy-to-read metric units (km/h).
• Compact 3 3/8 inch (85mm) diameter for versatile mounting.
• Requires a 3.33 inch (85mm) mounting hole.
• Includes necessary power and CAN communication harnesses.
• Prepared for optional 12 Volt activated turn signal and high beam connections.
