Description

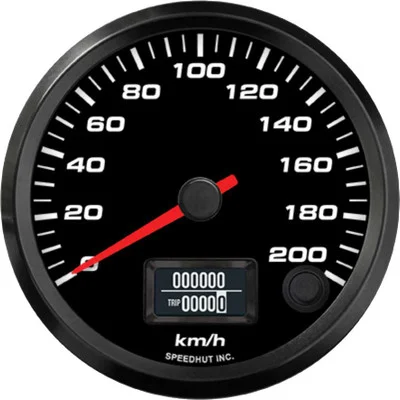

The Speedhut 3-3/8″ EV Orion 200 km/h Speedometer Gauge (FOR3-S3-EV) is a specialized instrument designed to provide accurate and reliable speed readings for electric vehicles. Engineered for seamless integration with your EV’s Controller Area Network (CAN-bus) system operating at a 500K baud rate, this gauge directly receives data from the vehicle’s Electronic Control Unit (ECU), eliminating the complexities associated with traditional speed sensors. Its metric display and straightforward installation make it an ideal choice for monitoring your EV’s performance.
KEY FEATURES AND BENEFITS:
- Direct CAN-Bus Integration: Connects directly to your EV’s CAN-bus system (500K baud rate) for precise speed data.
- Accurate Speed Readings: Receives real-time data from the ECU, ensuring highly accurate speed monitoring up to 200 km/h.
- Metric Display: Clearly displays speed in kilometers per hour (km/h).
- Easy Installation: Designed for a 3-3/8″ (85mm) mounting hole and includes necessary wiring harnesses for a simplified setup.
- Optional Indicators: May support 12 Volt activated Turn Signals and High Beam indicators for added functionality.
- Included Harnesses: Comes with an EV CAN Harness, a 3 ft Power & Lighting Harness, and an EV CAN Jumper Harness.
SPECIFICATIONS:
- Gauge Type: Speedometer
- Signal Type: CAN-Bus (500K baud rate)
- Range: 0 – 200 km/h
- Size: 3 3/8 inch
- Hole Size: 3.33 inches (85mm)
- Standard or Metric: Metric
- Optional Indicators: Turn Signals (12 Volt Activated), High Beam (12 Volt Activated)
- Included: EV CAN Harness, 3 ft Power & Lighting Harness, EV CAN Jumper Harness
HOW TO USE:
- Mount the Gauge: Secure the 3-3/8″ (85mm) speedometer gauge into the designated mounting location on your vehicle’s dashboard or instrument panel.
- Connect the EV CAN Harness: Plug the provided EV CAN Harness into the appropriate port on the speedometer gauge and connect the other end to your electric vehicle’s CAN-bus network.
- Connect the Power & Lighting Harness: Attach the 3 ft Power & Lighting Harness to the gauge, ensuring connection to a suitable 12V power source and ground for the gauge’s operation and illumination.
- Connect the EV CAN Jumper Harness (if needed): Use the EV CAN Jumper Harness as required to facilitate the connection to your specific EV’s CAN-bus system.
- Optional Indicator Wiring: If your gauge supports optional Turn Signals and High Beam indicators, connect the respective 12 Volt activated signal wires from your vehicle to the designated terminals on the gauge’s wiring harness.
- Verify Functionality: Once all connections are secure, power on your electric vehicle and observe the speedometer to ensure it is receiving and displaying speed data accurately.
BENEFITS OF USING THE SPEEDHUT 3-3/8″ EV ORION 200 KM/H SPEEDOMETER GAUGE (FOR3-S3-EV):
- Precise Speed Monitoring: Provides highly accurate speed readings derived directly from your EV’s ECU via the CAN-bus.
- Simplified Installation: Eliminates the need for external speed sensors, streamlining the installation process.
- Clean Integration: Seamlessly integrates with your EV’s existing CAN-bus network, maintaining a clean and modern look.
- Reliable Performance: Designed for the specific demands of electric vehicles, ensuring consistent and dependable speed indication.
- Clear Metric Display: Offers easy-to-read speed information in kilometers per hour, the standard for metric systems.
FEATURES:
- Direct communication with the EV’s CAN-bus system (500K baud rate).
- Displays speed up to 200 kilometers per hour.
- Fits a standard 3-3/8 inch (85mm) diameter mounting hole.
- Operates on the metric system for speed measurement.
- Option to connect 12 Volt activated turn signal indicators.
- Option to connect a 12 Volt activated high beam indicator.
- Includes a dedicated EV CAN Harness for CAN-bus connectivity.
- Comes with a 3 ft Power & Lighting Harness for essential power and illumination.
- Supplied with an EV CAN Jumper Harness for flexible connection options.
