Speedhut 3-3/8″ EV AEM 0-80C MotorTemp/Batt Level w/Warn (FAE3-DG3-EV)

Description

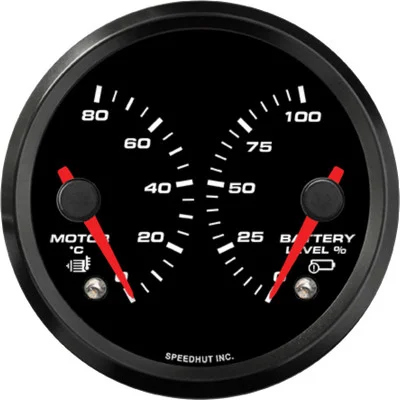

The Speedhut 3-3/8″ EV AEM 0-80C MotorTemp/Batt Level w/Warn (FAE3-DG3-EV) is a compact and efficient instrument designed for electric vehicles, providing real-time monitoring of two critical parameters: motor temperature and battery level (State of Charge). This gauge seamlessly integrates with AEM (Advanced Engine Management) systems via CAN-Bus communication, operating at a 500K baud rate for accurate and dependable data. Its clear display and integrated warning system help EV owners stay informed about their vehicle’s vital signs, contributing to efficient operation and proactive maintenance. Easy to install and designed to maximize dashboard space, this dual gauge is a valuable addition to any electric powertrain setup.

KEY FEATURES AND BENEFITS:

• Dual Functionality: Combines readings for motor temperature (0-80°C) and battery level/SOC (0-100%) in a single 3-3/8″ (85mm) unit.
• Real-time Monitoring: Provides continuous and accurate updates on essential EV parameters.
• Integrated Warning System: Features dedicated warning lights that illuminate when the motor temperature exceeds 70°C or the battery level drops below 15%.
• AEM System Compatibility: Specifically designed to work with AEM systems utilizing CAN-Bus communication at 500K baud.
• Space-Saving Design: The dual gauge format optimizes dashboard space compared to installing two separate gauges.
• Easy Integration: Designed for straightforward installation into your EV’s CAN-Bus network.
• Enhanced Awareness: Allows drivers to closely track motor temperature and battery charge, promoting better driving habits and timely intervention if needed.

SPECIFICATIONS:

• Gauge Type: Dual
• Signal Type: CAN-Bus (500K baud rate)
• Combo Options: Motor Temp and Battery Level
• Motor Temp Range: 0-80°C
• Battery Level Range: 0-100%
• Size: 3 3/8 inch (85mm)
• Hole Size: 3.33 inches (85mm)
• Units: Metric (Temperature)
• Warning Thresholds: Motor Temp> 70°C, Battery Level < 15%
• Ships With:
  • 3 ft Power & Lighting Harness – for LED Lit Gauges and Clocks
  • EV CAN Harness
  • EV CAN Jumper Harness

HOW TO USE:

1. Connect the EV CAN Harness: Plug the provided EV CAN Harness into the designated CAN-Bus port of your electric vehicle’s system.
2. Connect the Gauge: Connect the other end of the EV CAN Harness to the corresponding connector on the back of the Speedhut Dual Gauge.
3. Connect the Power & Lighting Harness: Attach the 3 ft Power & Lighting Harness to the power and lighting connections on the gauge, following the wiring diagram provided.
4. Mount the Gauge: Insert the gauge into a 3.33″ (85mm) diameter hole in your dashboard and secure it using the provided mounting hardware.
5. Verify Communication: Once powered on, the gauge should begin receiving data from the EV’s CAN-Bus system and display the motor temperature and battery level readings.
6. Observe Warning Lights: Monitor the warning lights; the motor temperature light will illuminate if the temperature goes above 70°C, and the battery level light will activate if the charge drops below 15%.

BENEFITS OF USING THE SPEEDHUT 3-3/8″ EV AEM 0-80C MOTORTEMP/BATT LEVEL W/WARN (FAE3-DG3-EV):

• Utilizing the Speedhut 3-3/8″ EV Dual Gauge provides several key advantages for electric vehicle owners.
• Offers a centralized display for two crucial metrics, reducing dashboard clutter and improving the ease of monitoring vital system information.
• Real-time feedback on motor temperature and battery state of charge allows for proactive driving adjustments.
• Potentially extends component lifespan and helps prevent unexpected low-battery situations.
• Integrated warning system acts as an early alert for potential issues, enabling timely intervention.
• Seamless integration with AEM systems ensures accurate and reliable data.
• Contributes to a more informed and controlled driving experience for EV owners.

FEATURES:

• Simultaneous Visualization: Presents both motor temperature and battery level on a single, easy-to-read display.
• Dedicated Alert Indicators: Independent warning lights for high motor temperature and low battery charge provide immediate visual cues.
• Direct CAN-Bus Interface: Communicates directly with the EV’s system via a robust and standardized CAN-Bus protocol.
• Compact Form Factor: The 3-3/8″ size allows for installation in various dashboard configurations without occupying excessive space.
• Plug-and-Play Harnesses: Includes specific harnesses designed for straightforward connection to power, lighting, and the EV’s CAN network.
• Metric Temperature Display: Shows motor temperature in Celsius, a widely understood unit of measurement.
• Precise Percentage Display: Indicates battery charge level as an intuitive percentage value.
