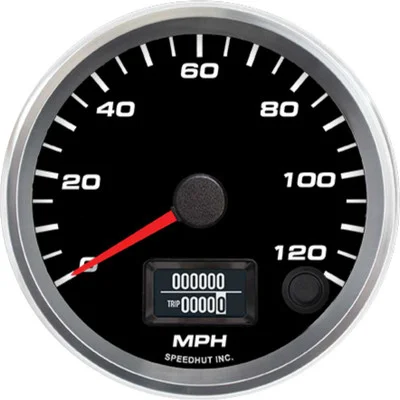

Speedhut 3-3/8″ 120mph Speedometer w/Signal and High Beam (R3-S1T-REV)

Description

The Speedhut 3-3/8″ 120mph Speedometer w/Signal and High Beam (R3-S1T-REV) is a crucial instrument designed to provide accurate speed readings for your vehicle. This gauge integrates essential indicator lights for turn signals and high beam activation directly into the speedometer face, offering a clean and functional solution for monitoring vital driving information. Its 3-3/8″ diameter makes it a versatile fit for various dashboards and gauge setups.

KEY FEATURES AND BENEFITS:

• Clear Speed Indication: Provides precise and easily readable speed measurements up to 120 mph.
• Integrated Signal Indicators: Features dedicated lights for both left and right turn signals, ensuring clear visual confirmation of signaling.
• High Beam Indicator: Includes a specific light to indicate when the vehicle’s high beam headlights are active.
• Convenient All-in-One Design: Combines essential gauges and indicators into a single, compact unit, reducing clutter and simplifying dashboard layout.
• Aftermarket Versatility: The 3-3/8″ size is a common standard, making it compatible with many aftermarket gauge pods and installations.

SPECIFICATIONS:

• Diameter: 3-3/8 inches
• Maximum Speed: 120 mph
• Model Number: R3-S1T-REV
• Capacity: Not applicable (gauge size specified)

HOW TO USE:

• Mounting the Gauge: Securely mount the speedometer in the desired location on your dashboard or gauge pod using appropriate hardware (usually included or sold separately). Ensure the gauge is positioned for optimal visibility.
• Wiring the Power and Ground: Connect the speedometer’s power wire to a suitable 12V power source in your vehicle, typically an ignition-switched source. Connect the ground wire to a reliable ground point on the vehicle’s chassis.
• Connecting the Speed Signal Wire: Locate the vehicle’s speed signal output wire and connect it to the corresponding input wire on the speedometer. Refer to your vehicle’s wiring diagram and the Speedhut’s wiring instructions for the correct connections.
• Wiring the Turn Signal Indicators: Identify the left and right turn signal wires in your vehicle’s wiring harness. Connect these wires to the designated input wires for the left and right signal indicators on the speedometer.
• Wiring the High Beam Indicator: Locate the high beam indicator wire in your vehicle’s wiring harness and connect it to the corresponding input wire for the high beam indicator on the speedometer.
• Testing: Start your vehicle and observe the speed reading as you accelerate. Verify that the turn signal indicators illuminate correctly and the high beam indicator lights up when activated.
• Final Adjustments: Make any necessary adjustments to the gauge’s position or wiring for proper operation and a clean installation.

BENEFITS OF USING THE SPEEDHUT 3-3/8″ 120MPH SPEEDOMETER W/SIGNAL AND HIGH BEAM (R3-S1T-REV):

• Enhanced Safety: Clear and immediate visual feedback of speed, turn signal status, and high beam activation contributes to safer driving.
• Improved Awareness: Easily monitor critical driving information without needing multiple separate indicators.
• Clean Aesthetics: The integrated design offers a more organized and streamlined dashboard appearance.
• Accurate Readings: Provides precise speed measurements to keep you aware of your vehicle’s speed at all times.
• Reliable Performance: Manufactured by Speedhut, known for durable and dependable gauges.

FEATURES:

• Measures vehicle speed up to 120 miles per hour.
• Includes indicator lights for left and right turn signals.
• Equipped with a dedicated high beam indicator light.
• Standard 3-3/8 inch gauge diameter suitable for aftermarket installations.
• Designed for electrical integration with the vehicle’s speed sensor and lighting system.
• Model number R3-S1T-REV for easy identification.
