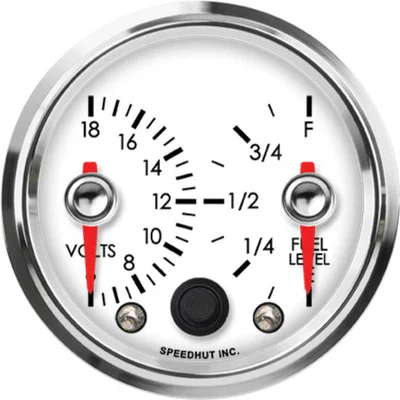

Speedhut 2-5/8″ Volts / Fuel Level Dual Gauge (R25-DG2-LEG)

Description

The Speedhut 2-5/8″ Volts / Fuel Level Dual Gauge (R25-DG2-LEG) offers a convenient and space-saving solution for monitoring two critical aspects of your vehicle’s performance. This gauge combines a voltmeter, displaying a range of 6 to 18 volts, and a fuel level indicator, showing the level from Empty (E) to Full (F), within a single 2-5/8 inch (68mm) housing. Designed for accuracy and ease of installation, this dual gauge is a practical addition to any dashboard.

KEY FEATURES AND BENEFITS:

• Dual Monitoring: Allows you to monitor both your vehicle’s electrical system voltage and fuel level simultaneously.
• Warning Light: Adds an extra layer of awareness for potential voltage issues.
• Standard Sizing: 2-5/8 inch size fits standard gauge openings.
• Easy Installation: Includes a mounting ring for simplified installation.
• Accurate Readings: Internal microprocessor ensures precise measurements.

SPECIFICATIONS:

• Gauge Type: Dual Gauge
• Combo Options: Voltage and Fuel Level
• Voltage Range: 6-18 volts
• Fuel Level Range: E-F
• Size: 2 5/8 inch (2.625″)
• Hole Size: 2.67 inches (68mm)
• Warning Light: Yes
• Mounting Ring: Included
• Ships With:
  • Wiring Harness (2-Wire Cable)
  • 3 ft Power & Lighting Harness – for LED Lit Gauges and Clocks

HOW TO USE:

1. Prepare the Mounting Location: Ensure you have a 2.67-inch (68mm) diameter opening on your dashboard or instrument panel where you want to install the gauge.
2. Connect the Wiring Harness: Attach the provided 2-wire cable wiring harness to the back of the gauge.
3. Connect the Power and Lighting Harness: Connect the 3 ft power and lighting harness to the appropriate power and ground sources in your vehicle, as well as to the gauge for illumination (if applicable).
4. Mount the Gauge: Insert the gauge into the prepared opening and secure it using the included mounting ring from the back of the panel.
5. Connect to Voltage Source: Connect the voltage input wire from the gauge harness to a reliable 6-18 volt power source in your vehicle.
6. Connect to Fuel Level Sender: Connect the fuel level input wire from the gauge harness to your vehicle’s fuel level sending unit. You may need to consult your vehicle’s wiring diagram for the correct wire.
7. Calibration (If Necessary): Depending on your vehicle’s fuel level sender, you might need to calibrate the gauge for accurate readings. Refer to the Speedhut instructions for any calibration procedures.
8. Test the Gauge: Once all connections are made, start your vehicle and observe the voltage and fuel level readings to ensure they are functioning correctly. Check if the warning light illuminates under low or high voltage conditions.

BENEFITS OF USING THE SPEEDHUT 2-5/8″ VOLTS / FUEL LEVEL DUAL GAUGE (R25-DG2-LEG):

• Dual Functionality: Monitors two crucial vehicle parameters in a single, compact unit, saving dashboard space.
• Increased Awareness: Clear, accurate display of voltage and fuel level keeps you informed and helps avoid breakdowns or running out of fuel.
• Proactive Alerts: Integrated warning light offers early notification of voltage issues.
• Easy Installation: Comes with mounting hardware and wiring for straightforward setup.
• Long-Term Reliability: Weather-resistant, durable design ensures dependable performance.
• Peace of Mind: Supported by a lifetime manufacturer warranty.

FEATURES:

• Precise Pointer Movement: High-torque stepper motor delivers accuracy even under tough conditions.
• Durable Design: Slim case and solid aluminum bezel for longevity and a classic look.
• Weather-Resistant: Built to perform reliably in various conditions.
• Warranty: Backed by Speedhut’s lifetime warranty.
