Speedhut 2-5/8″ Street XL Programmable Fuel Level Gauge (L25-FL1-SXL)

Description

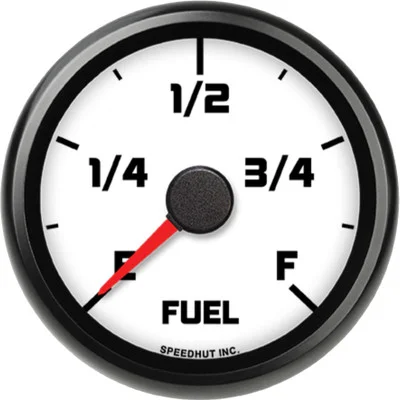

The Speedhut 2-5/8″ Street XL Programmable Fuel Level Gauge (L25-FL1-SXL) offers a reliable and clear way to monitor the fuel level in your vehicle. Designed for a 2 5/8 inch mounting diameter, this gauge is compatible with fuel level sensors that operate at 300 ohms or less, accommodating a wide range of aftermarket and original equipment manufacturer (OEM) senders. Its straightforward Empty to Full (E-F) range provides an intuitive indication of your remaining fuel. This standard-sized gauge fits into a 2.67″ (68mm) cutout, making installation convenient for various dashboards and instrument panels. Please note that this specific model does not include a low fuel warning light. The gauge ships with the necessary wiring harnesses for power, lighting, and connection to your fuel level sensor.

KEY FEATURES AND BENEFITS:

• Programmable Compatibility: Designed to work with fuel level sensors that have a resistance of 300 ohms or less, making it versatile for different vehicle applications.
• Clear Fuel Indication: Displays the fuel level with a standard Empty to Full range for easy interpretation.
• Standard Size: The 2 5/8 inch gauge diameter fits common aftermarket gauge mounting solutions.
• Straightforward Installation: Includes a 2-wire harness for the fuel level signal and a separate power and lighting harness.
• LED Backlighting Ready: The included power and lighting harness supports LED illumination for enhanced visibility.

SPECIFICATIONS:

• Gauge Type: Fuel Level Gauge
• Fuel Level Signal Type: 300 ohms or less
• Size: 2 5/8 inch
• Range: E-F
• Standard or Metric: Standard
• Hole Size: 2.67″ (68mm)
• Warning Light: No
• Ships With:
  • Wiring Harness (2-Wire Cable)
  • 3 ft Power & Lighting Harness

HOW TO USE:

1. Mount the Gauge: Locate a suitable 2.67″ (68mm) diameter opening in your dashboard or instrument panel and securely mount the Speedhut fuel level gauge.
2. Connect the Power and Lighting Harness: Connect the 3 ft power and lighting harness to a 12V power source, ground, and the vehicle’s lighting circuit (if you desire the gauge to illuminate with your other lights). Ensure proper polarity.
3. Connect the Fuel Level Sender Harness: Connect the 2-wire cable to the signal output terminal of your fuel level sender unit and to the corresponding input terminal on the back of the Speedhut gauge. The other wire will likely be a ground connection for the sender. Refer to your sender’s wiring diagram for correct connections.
4. Verify Compatibility: Ensure that your fuel level sender unit operates within a resistance range of 300 ohms or less.
5. Test the Gauge: With the vehicle’s power on, observe the gauge as the fuel level changes. The needle should move accordingly, indicating the amount of fuel in the tank.

BENEFITS OF USING THE SPEEDHUT 2-5/8″ STREET XL PROGRAMMABLE FUEL LEVEL GAUGE (L25-FL1-SXL):

• This Speedhut fuel level gauge offers a reliable and easily integrated solution for monitoring your vehicle’s fuel.
• Its programmability ensures compatibility with a broad spectrum of fuel level sending units, providing accurate readings regardless of the original sender specifications (within the 300 ohms or less limitation).
• The standard 2 5/8″ size makes it a versatile choice for custom installations or replacements in existing gauge clusters.
• The inclusion of necessary wiring harnesses simplifies the installation process, allowing for a quicker and more straightforward setup.
• While it does not feature a low fuel warning light, the clear and direct Empty to Full display provides essential information for managing your fuel needs.

FEATURES:

• Designed for systems utilizing a fuel level sensor with a maximum resistance of 300 ohms.
• Presents fuel level in a conventional Empty to Full sweep.
• Fits into a standard 2 5/8 inch (66mm) gauge opening.
• Requires a mounting hole with a diameter of 2.67 inches (68mm).
• Shipped with a dedicated 2-wire harness for connection to the fuel level sending unit.
• Includes a separate 3-foot harness for powering the gauge and its internal illumination.
• Intended for use in standard (non-metric) measurement systems.
• Does not incorporate an integrated low fuel indicator light.
