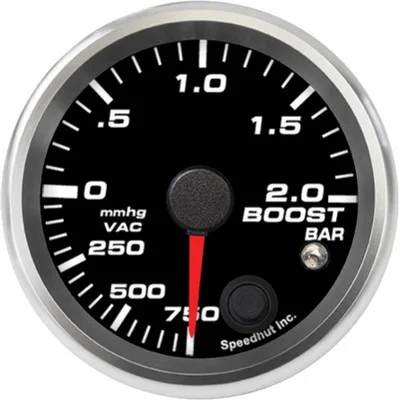

Speedhut 2-5/8″ 750mmhg-0-2.0 Bar Boost/Vac w/ Warning (R25-BV5-REV)

Description

The Speedhut 2-5/8″ 750mmhg-0-2.0 Bar Boost/Vac w/ Warning (R25-BV5-REV) is a precise instrument designed for monitoring the pressure within your vehicle’s intake system and the boost produced by turbochargers or superchargers. This gauge provides accurate readings of both vacuum, measured up to 750 mmHg, and positive pressure, ranging from 0 to 2 bar. Its 2-5/8 inch size ensures it fits seamlessly into most gauge pods or mounting locations.

KEY FEATURES AND BENEFITS:

• Dual Functionality: Displays both vacuum (750 mmHg) and boost (0-2 bar) levels in a single unit.
• Accurate Transducer: The integration of a 3-wire military-grade transducer ensures highly accurate and reliable pressure readings, crucial for performance monitoring and engine safety.
• User-Configurable Warning Light: The inclusion of a user-configurable warning light allows drivers to set critical pressure thresholds, providing immediate visual alerts if these levels are exceeded, helping to prevent engine damage due to over-boosting or identify vacuum leaks.
• Metric Measurement: The gauge operates on the metric system, displaying boost in Bar.

SPECIFICATIONS:

• Gauge Type: Boost/Vacuum Gauge
• Pressure Sender Type: 3-Wire Military Grade Transducer (Performance)
• Range: 750 mmHg – 0 – 2 bar
• Size: 2 5/8 inch
• Hole Size: 2.67″ (68mm)
• Standard or Metric: Metric
• Warning Light: Yes
• Ships With:
  • Pressure Sensor – 30 psi
  • Pressure Gauge Wiring Harness (3-Wire Cable)
  • Boost/Vac Hose Kit
  • 3 ft Power & Lighting Harness – for LED Lit Gauges and Clocks

HOW TO USE:

• Mount the Gauge: Secure the 2-5/8″ gauge in a suitable 2.67″ (68mm) diameter opening in your desired location.
• Install the Pressure Sensor: Mount the included pressure sensor in a location that can accurately read the boost/vacuum pressure, typically on the intake manifold or a boost line.
• Connect the Hoses: Use the provided Boost/Vac Hose Kit to connect the pressure source to the pressure sensor.
• Wire the Sensor: Connect the 3-wire cable from the Pressure Gauge Wiring Harness to the terminals on the pressure sensor.
• Connect Power and Lighting: Use the 3 ft Power & Lighting Harness to connect the gauge to a 12V power source and the vehicle’s lighting circuit if you desire the gauge to illuminate with your other instruments.
• Configure the Warning Light (if applicable): Follow the manufacturer’s instructions to set the desired boost or vacuum level at which the warning light will activate.

BENEFITS OF USING THE SPEEDHUT 2-5/8″ 750MMHG-0-2.0 BAR BOOST/VAC W/ WARNING (R25-BV5-REV):

• Provides real-time, precise information about engine’s boost and vacuum levels.
• Allows for proactive monitoring of engine performance, helping identify potential issues like boost leaks or vacuum problems.
• High-quality military-grade transducer ensures accuracy for reliable readings.
• Integrated warning light offers an immediate visual cue for critical pressure changes, enhancing driver awareness and vehicle safety.
• Includes installation hardware, simplifying the setup process.
• Convenient solution for both performance enthusiasts and everyday drivers.

FEATURES:

• Simultaneously Displays: Both vacuum (up to 750 mmHg) and boost (0 to 2 bar) readings.
• High-Accuracy Transducer: Employs a 3-wire military-grade transducer for reliable measurements.
• Configurable Warning Light: Includes a user-programmable warning light to alert the driver of critical pressure levels.
• Standard 2-5/8 inch Diameter: Features a versatile mounting size for seamless fit in most installations.
• Complete Installation Kit: Comes with the necessary wiring harness for the pressure sensor.
• Boost/Vacuum Hose Kit: Includes a hose kit for easy connection to the pressure source.
• Power and Lighting Harness: Supplied with a separate power and lighting harness for straightforward electrical connections.
