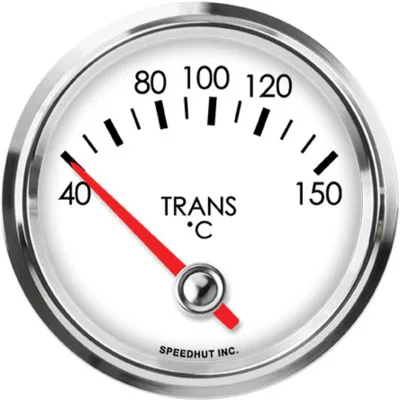

Speedhut 2-5/8″ 40-150C Trans Temp Gauge – 90° Sweep (L25-TT4-LEG)

Description

The Speedhut 2-5/8″ 40-150C Trans Temp Gauge – 90° Sweep (L25-TT4-LEG) is a vital instrument for monitoring the operating temperature of your vehicle’s automatic transmission fluid. By providing accurate and real-time temperature readings in Celsius, this gauge allows you to proactively manage your transmission’s health, potentially preventing costly repairs and extending its lifespan. This gauge features a 90-degree sweep for clear visibility of the temperature range between 40°C and 150°C.

KEY FEATURES AND BENEFITS:

• Accurate Temperature Monitoring: Provides precise readings of your transmission fluid temperature, ranging from 40°C to 150°C.
• Early Problem Detection: Allows you to identify abnormal temperature increases that could indicate issues such as heavy load, low fluid, or internal problems.
• Performance Temp Sender: Includes a 2-wire performance temperature sender, likely offering enhanced accuracy and quicker response times.
• Metric Measurement: Displays temperature readings in Celsius, a widely used and easily understandable unit.
• Complete Wiring Included: Ships with all necessary wiring harnesses for power, lighting (for LED illumination), and connecting the temperature sensor to the gauge, simplifying the installation process.
• Standard Size: The 2-5/8 inch gauge diameter is a common size, making it compatible with various gauge pods and mounting solutions.

SPECIFICATIONS:

• Gauge Type: Temperature Gauge
• Gauge Subtype: Transmission Temperature Gauge
• Temp Sender Type: 2-Wire Temp Sender (Performance)
• Range: 40-150 °C
• Size: 2 5/8 inch
• Hole Size: 2.67″ (68mm)
• Standard or Metric: Metric
• Warning Light: No
• Ships With:
  • 3 ft Power & Lighting Harness – for LED Lit Gauges and Clocks
  • Speedhut Temperature Sensor
  • Temperature Gauge Wiring Harness (2-Wire Cable)

HOW TO USE:

1. Sensor Installation: Install the included Speedhut temperature sensor into a suitable port on your vehicle’s transmission. Ensure a secure and proper connection.
2. Wiring Connection (Sensor to Gauge): Connect the 2-wire cable from the temperature sensor to the designated terminals on the back of the Speedhut temperature gauge.
3. Power and Lighting Connection: Connect the 3 ft power and lighting harness to a suitable 12V power source in your vehicle and to the corresponding terminals on the gauge. This harness will also power the LED backlighting.
4. Gauge Mounting: Mount the 2-5/8 inch gauge into a 2.67″ (68mm) diameter hole in your dashboard or a gauge pod, ensuring it is securely fastened and the wiring is routed safely.
5. Verification: Once all connections are made, start your vehicle and observe the gauge to ensure it is receiving power and displaying the transmission fluid temperature.

BENEFITS OF USING THE SPEEDHUT 2-5/8″ 40-150C TRANS TEMP GAUGE – 90° SWEEP (L25-TT4-LEG):

• Using the Speedhut 2-5/8″ 40-150C Transmission Temperature Gauge provides you with critical insight into your transmission’s operating conditions.
• Allows for proactive maintenance, potentially preventing overheating and damage that can lead to expensive repairs or premature transmission failure.
• Enables adjustments in driving habits, especially when towing or under heavy load, to maintain optimal transmission temperature.
• Contributes to the longevity and reliable performance of your vehicle’s transmission system.

FEATURES:

• Clear Metric Display: Presents temperature readings in easily understandable Celsius.
• Optimized Sweep Angle: The 90-degree sweep design enhances readability at a glance.
• High-Quality Sensor Included: Comes with a performance-oriented 2-wire temperature sender for accurate data.
• Comprehensive Wiring Kit: Includes dedicated harnesses for power, illumination, and sensor connectivity.
• Durable Construction: Built to withstand the demands of the automotive environment.
