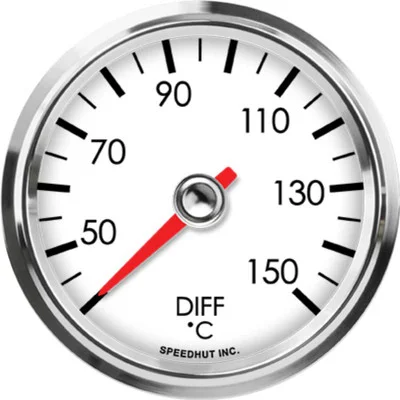

Speedhut 2-5/8″ 40-150C Diff Temp Gauge (L25-DT3-LEG)

Description

The Speedhut 2-5/8″ 40-150C Diff Temp Gauge (L25-DT3-LEG) is a vital instrument for monitoring the health and performance of your vehicle’s differential. This metric gauge provides accurate temperature readings, allowing you to proactively manage potential overheating issues that can lead to costly damage and reduced lifespan of critical components. Designed for precision and ease of installation, this gauge comes complete with the necessary hardware to get you up and running quickly.

KEY FEATURES AND BENEFITS:

• Accurate Temperature Monitoring: Reliably tracks differential oil temperature within a range of 40 to 150 degrees Celsius, providing essential data for maintaining optimal operating conditions.
• High-Performance Sensor: Utilizes a 2-wire performance temperature sender, ensuring precise and responsive temperature readings.
• Metric Measurement: Displays temperature readings in Celsius, the globally recognized standard for scientific and automotive measurements in many regions.
• Standard Size: The 2-5/8 inch (66.675 mm) gauge size is a common and convenient dimension for mounting in various aftermarket gauge pods and locations.
• Easy Installation: Designed for straightforward installation with included power and sensor wiring harnesses.

SPECIFICATIONS:

• Gauge Type: Temperature Gauge
• Temperature Range: 40 – 150 °C
• Sender Type: 2-Wire Temp Sender (Performance)
• Size: 2 5/8 inch (66.675 mm)
• Hole Size: 2.67 inches (68 mm)
• Units: Metric (°C)
• Warning Light: No
• Included: 3 ft Power & Lighting Harness, Speedhut Temperature Sensor, Temperature Gauge Wiring Harness (2-Wire Cable)

HOW TO USE:

• Mount the Gauge: Locate a suitable 2.67-inch (68mm) diameter hole in your desired mounting location (e.g., gauge pod, dashboard). Secure the Speedhut temperature gauge in this opening.
• Install the Temperature Sensor: Identify a suitable threaded port on your vehicle’s differential housing. Install the Speedhut temperature sensor into this port, ensuring a secure and sealed connection.
• Connect the Sensor Wiring: Connect the 2-wire cable from the temperature sensor to the corresponding terminals on the back of the temperature gauge.
• Connect the Power and Lighting Harness: Connect the 3 ft power and lighting harness to the appropriate power (typically 12V switched ignition) and ground sources in your vehicle. Refer to your vehicle’s wiring diagram for correct connections.
• Test the Gauge: Once all connections are made, turn on your vehicle’s ignition. The gauge should power up and display the current differential temperature. Allow the vehicle to run to observe temperature changes.

BENEFITS OF USING THE SPEEDHUT 2-5/8″ 40-150C DIFF TEMP GAUGE (L25-DT3-LEG):

• Provides real-time visual monitoring of differential oil temperature to prevent overheating and damage.
• Helps extend the lifespan of gears, bearings, and lubricating fluids by ensuring proper temperature management.
• Enables drivers to take proactive measures during high-load or extreme driving conditions.
• Delivers continuous temperature feedback even without a warning light, supporting safe vehicle operation.

FEATURES:

• Precise Readings: The performance 2-wire sensor delivers accurate and immediate temperature updates.
• Clear Metric Display: Easy-to-read display showing temperature in degrees Celsius.
• Standard Mounting: Fits seamlessly into common 2-5/8 inch (68mm) gauge openings.
• Complete Wiring Included: Comes with all necessary harnesses for power, lighting, and sensor connection.
• Robust Sensor: The included Speedhut temperature sensor is designed for reliable operation in automotive environments.
