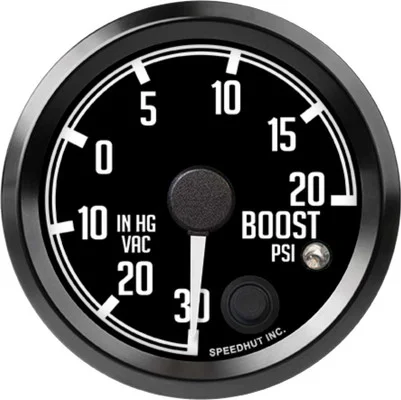

Speedhut 2-5/8″ 30inhg-0-20 Boost/Vac Gauge w/ Warning (R25-BV3-DATZ)

Description

The Speedhut 2-5/8″ 30inhg-0-20 Boost/Vac Gauge w/ Warning (R25-BV3-DATZ) is an essential instrument for accurately monitoring the pressure levels within your vehicle’s engine. Designed for both turbocharged and naturally aspirated systems, this gauge provides real-time vacuum and boost readings, allowing you to optimize performance and effectively diagnose potential issues. Its integrated warning light offers an added layer of control, enabling you to set custom alerts to ensure your engine operates within safe parameters.

KEY FEATURES AND BENEFITS:

• Provides precise, real-time readings of engine boost (up to 20 PSI) and vacuum (up to 30 inHg).
• Equipped with a settable warning light to alert the driver when pressure levels fall outside the desired range.
• Utilizes a high-quality 3-Wire Military Grade Transducer for accurate and reliable performance.
• Features a durable 2 5/8 inch gauge size, fitting standard instrument panel openings.
• Facilitates the optimization of turbocharged or supercharged engine systems for peak efficiency and power.
• A valuable tool for diagnosing potential engine problems related to pressure imbalances.
• Designed for straightforward installation in a variety of vehicles.

SPECIFICATIONS:

• Gauge Type: Boost/Vacuum Gauge
• Range: 30 inHg to 20 PSI
• Size: 2 5/8 inch
• Hole Size: 2.67″ (68mm)
• Pressure Sender Type: 3-Wire Military Grade Transducer (Performance)
• Warning Light: Yes
• Ships With:
• Pressure Gauge Wiring Harness (3-Wire Cable)
• 3 ft Power & Lighting Harness – for LED Lit Gauges and Clocks
• Pressure Sensor – 30 psi
• Boost/Vac Hose Kit

HOW TO USE:

1. Mount the Gauge: Securely install the 2 5/8″ gauge in a suitable location on your vehicle’s instrument panel using the provided mounting spin ring. Ensure the gauge is positioned for optimal visibility.
2. Connect the Pressure Sensor: Install the included pressure sensor in a suitable location on your engine where boost/vacuum pressure can be accurately measured.
3. Wire the Sensor: Connect the 3-wire cable from the pressure sensor to the corresponding terminals on the back of the gauge, following the wiring diagram provided in the product documentation.
4. Connect Power and Lighting: Attach the 3 ft Power & Lighting Harness to the gauge, connecting it to a 12V power source and the vehicle’s lighting system if desired (for illumination).
5. Connect Vacuum/Boost Hose: Use the provided Boost/Vac Hose Kit to connect the pressure sensor to a vacuum/boost source on your engine. Ensure all connections are secure and leak-free.
6. Set the Warning Light (Optional): Once the gauge is functioning, you can set the desired high or low pressure warning thresholds according to the manufacturer’s instructions. The warning light will illuminate if these thresholds are exceeded or fallen below.
7. Monitor Readings: Observe the gauge to monitor real-time boost and vacuum levels during vehicle operation.

BENEFITS OF USING THE SPEEDHUT 2-5/8″ 30INHG-0-20 BOOST/VAC GAUGE W/ WARNING (R25-BV3-DATZ):

• Enhanced Engine Awareness: Provides continuous and accurate insight into your engine’s pressure dynamics, crucial for understanding its performance.
• Proactive Problem Detection: Allows for early identification of potential issues related to turbocharger, supercharger, or general engine health by monitoring pressure fluctuations.
• Optimized Performance Tuning: Enables precise adjustments to your engine’s settings to achieve optimal power and efficiency based on real-time pressure data.
• Increased Engine Safety: The settable warning light acts as an early alert system, helping to prevent potential engine damage by indicating out-of-range pressure conditions.
• Easy Integration: The standard 2 5/8″ size and included components facilitate a relatively straightforward installation process in most vehicles.

FEATURES:

• Real-time display of vacuum and boost pressure.
• Adjustable visual warning indicator for critical pressure levels.
• High-accuracy pressure readings via a robust 3-wire transducer.
• Compact 2 5/8″ gauge form factor for versatile mounting.
• Clear and easy-to-read analog display.
• Included wiring harness and sensor for immediate setup.
• Durable construction designed for automotive environments.
