Description

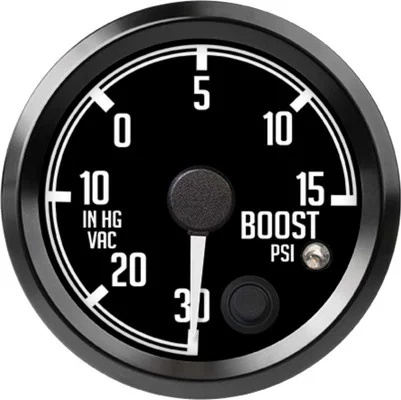

The Speedhut 2-5/8″ 30inhg-0-15 Boost/Vac Gauge w/ Warning (R25-BV2-DATZ) is an essential instrument for drivers who need precise insight into their engine’s forced induction system. Designed for accuracy and reliability, this gauge provides real-time readings of both boost (positive pressure) and vacuum (negative pressure) levels within the intake manifold. This information is crucial for optimizing the performance of turbocharged or supercharged engines and for diagnosing potential mechanical issues. The inclusion of a settable warning light adds a critical layer of control, allowing users to define safe operating parameters and receive immediate alerts if those limits are exceeded. Specifically designed with a nod to classic aesthetics, the Datsun-themed styling ensures it integrates seamlessly with the interior of compatible vehicles.
KEY FEATURES AND BENEFITS:
- Measurement Range: Offers 30 inHg of vacuum to 15 PSI of boost for precise monitoring.
- Pressure Sensing: Equipped with a high-performance 3-wire military grade transducer for reliable data.
- Settable Warning Light: User-configurable visual alerts for pressure limits to prevent potential damage.
- Mounting Compatibility: Fits 2-5/8 inch (66.675 mm) openings with a 2.67″ (68mm) hole size for universal installation.
- Ease of Installation: Includes all wiring and boost/vacuum hose components required for setup.
- Real-Time Data: Helps optimize performance and diagnose engine or forced induction issues.
- Classic Styling: Datsun-themed design integrates aesthetically with compatible vehicle interiors.
SPECIFICATIONS:
- Gauge Type: Boost/Vacuum Gauge
- Range: 30 inHg – 0 – 15 psi
- Size: 2 5/8 inch
- Hole Size: 2.67 inches (68mm)
- Pressure Sender Type: 3-Wire Military Grade Transducer (Performance)
- Warning Light: Yes
- Included:
- 3 ft Power & Lighting Harness – for LED Lit Gauges and Clocks
- Pressure Gauge Wiring Harness (3-Wire Cable)
- Boost/Vac Hose Kit
- Pressure Sensor – 30 psi
HOW TO USE:
- Mount the Gauge: Locate a suitable 2.67″ (68mm) diameter opening in your vehicle’s dashboard or instrument panel. Secure the gauge using the provided hardware.
- Connect the Pressure Sensor: Install the sensor to a vacuum/boost port on your engine’s intake manifold. Use the included hose kit to ensure leak-free connections.
- Wire the Power and Lighting Harness: Connect the harness to a 12V power source and ground. This powers the gauge and its backlighting.
- Connect the Pressure Sensor Wiring: Attach the 3-wire sensor cable to the gauge’s terminals as directed.
- Set the Warning Light (Optional): Configure the gauge to activate the warning light at your desired boost or vacuum threshold following the manufacturer’s instructions.
- Monitor Readings: Start your engine and observe the gauge to track boost and vacuum levels under different driving conditions.
BENEFITS OF USING THE SPEEDHUT 2-5/8″ 30INHG-0-15 BOOST/VAC GAUGE W/ WARNING (R25-BV2-DATZ):
- Allows precise monitoring of intake manifold pressure for performance optimization and diagnostics.
- Helps identify vacuum leaks, over-boost conditions, or turbocharger-related issues early.
- Visual warning system improves safety by alerting to out-of-range pressure values.
- Enhances the driver’s ability to fine-tune engine performance based on accurate pressure data.
- Easy-to-install system with all necessary components included for a seamless setup.
- Styled specifically for aesthetic integration with classic Datsun interiors.
FEATURES:
- Provides instant and accurate readings of both vacuum and boost levels.
- Utilizes a high-quality transducer for reliable pressure sensing.
- Includes a user-configurable visual alert for critical pressure thresholds.
- Designed in a 2-5/8 inch size for convenient dashboard integration.
- Offers a direct reading range from 30 inHg of vacuum to 15 PSI of boost.
- Features straightforward electrical and pressure line connections.
- Comes complete with all necessary wiring and hose components for installation.
- Specifically styled to complement the interior aesthetics of Datsun vehicles.
