Description

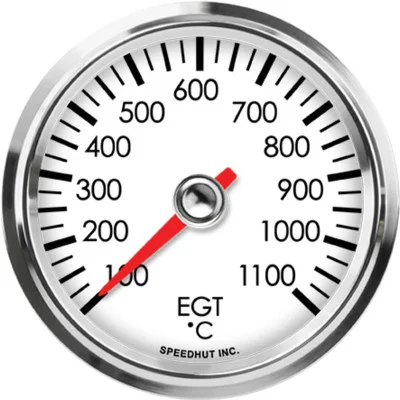

The Speedhut 2-5/8″ 100-1100C EGT Temp Gauge (L25-ET4-LEG) is designed to provide accurate and reliable monitoring of your engine’s exhaust gas temperature. This metric gauge displays readings from 100 to 1100 degrees Celsius, allowing you to keep a close watch on critical engine performance parameters. Its 2-5/8 inch size makes it a convenient fit for various applications, requiring a 2.67-inch (68mm) mounting hole. This model does not include a warning light feature, focusing on clear and direct temperature indication.
KEY FEATURES AND BENEFITS:
- Accurate Temperature Monitoring: Provides precise readings of exhaust gas temperature within the 100-1100°C range, crucial for engine health and tuning.
- Metric Measurement: Displays temperature in Celsius, the standard metric unit for temperature.
- Convenient Size: The 2-5/8 inch gauge fits standard mounting locations with a 68mm hole size.
- Complete Installation Kit: Ships with a 9-foot long EGT/Ultra Low Type K probe featuring a braided steel line for durability and accurate sensing.
- Easy Wiring: Includes a 3-foot Power & Lighting Harness specifically designed for LED-lit gauges, simplifying the electrical connections.
- Secure Mounting: Comes with a gauge mounting ring for straightforward and stable installation.
SPECIFICATIONS:
- Gauge Type: Temperature Gauge
- Gauge Subtype: Exhaust Gas Temperature Gauge
- Range: 100 – 1100 °C
- Standard or Metric: Metric
- Size: 2 5/8 inch
- Hole Size: 2.67 inches (68mm)
- Warning Light: No
- Ships With:
- EGT/Ultra Low Type K Probe: 9 feet long, Braided steel line.
- 3 ft Power & Lighting Harness: for LED Lit Gauges and Clocks.
- Gauge Mounting Ring.
HOW TO USE:
- Mount the Gauge: Locate a suitable 2.67-inch (68mm) opening in your desired location and secure the gauge using the included mounting ring.
- Install the Temperature Probe: Mount the EGT/Ultra Low Type K probe in the exhaust stream at a location that provides a representative reading of the exhaust gas temperature. Ensure the 9-foot braided steel line is routed safely away from heat sources and moving parts.
- Connect the Wiring Harness: Connect the 3-foot Power & Lighting Harness to a suitable power source in your vehicle’s electrical system. This harness will also power the LED illumination of the gauge.
- Connect the Probe to the Gauge: Connect the other end of the EGT/Ultra Low Type K probe’s wiring to the corresponding terminals on the back of the Speedhut gauge. Refer to the gauge’s wiring diagram for correct connections.
- Verify Functionality: Once all connections are made, start your vehicle and observe the gauge to ensure it is receiving power and displaying temperature readings.
BENEFITS OF USING THE SPEEDHUT 2-5/8″ 100-1100C EGT TEMP GAUGE (L25-ET4-LEG):
- Monitoring for Overheating: Detect potential issues such as overheating before they lead to engine damage.
- Performance Optimization: Crucial for tuning high-performance or turbocharged engines by allowing for adjustments to fuel and boost levels.
- Reliable Temperature Data: High-quality Type K probe ensures consistent and accurate readings.
- Extended Engine Life: Helps maintain safe operating temperatures, promoting engine longevity.
- Straightforward Installation: Simplified setup with all necessary components included.
FEATURES:
- Precise Temperature Indication: Offers a clear and accurate display of exhaust gas temperature.
- Wide Measurement Range: Capable of reading temperatures from 100°C up to 1100°C.
- Standard Metric Units: Displays temperature in Celsius for easy understanding.
- Optimal Size for Integration: The 2-5/8 inch diameter allows for versatile mounting options.
- Robust Sensor Included: Comes with a durable 9-foot Type K probe with braided steel protection.
- Dedicated Power and Light Connection: Includes a 3-foot harness specifically for powering the gauge and its LED illumination.
- Simple Installation: The included mounting ring facilitates a secure and hassle-free setup.
